Drums. Synths. Sound design. Sequencing. All included. With an array of features, all loaded in a compact, lightweight design, SEQTRAK allows you to start producing right away – no matter where you are. It’s got everything you need. And more.

Specifications

• • AWM2, FM: 4 operators
• Maximum Polyphony:
  • AWM2: 128, FM: 8
• Wave:
  • Preset: 800 MB (when converted to 16-bit linear format), User: 500 MB
• Effects:
  • Reverb × 12 types, Delay × 9 types, Master Effect × 85 types, Single Effect × 85 types, Master EQ 5 bands, LP-HP filters for each track
• Tracks:
  • Track Types:
    • DRUM, SYNTH, DX, SAMPLER
  • Number of Tracks:
    • 11
• Sounds:
  • Number of Sounds:
    • Preset Sound: 2032 Preset Sampler Sound: 392 *Can be added from the SEQTRAK app
• Project:
  • Number of Projects:
    • 8 *Can be saved to the SEQTRAK app
• Connectivity:
  • Connectors:

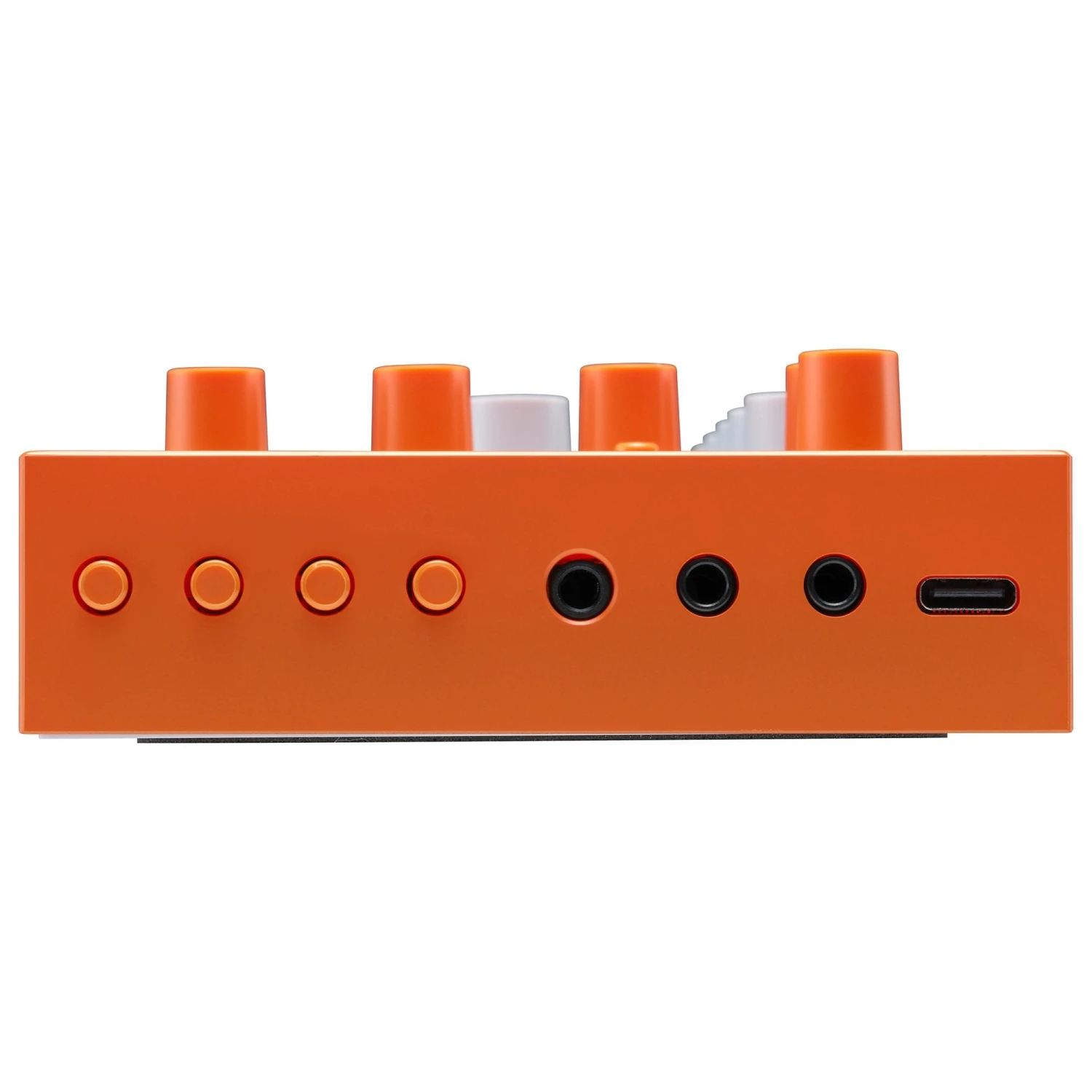

    • USB USB Type-C (power, MIDI to host, MIDI to device, audio)
    • Headphones [PHONES] (stereo mini jack)
    • A/D INPUT [AUDIO IN] (stereo mini jack)
    • MIDI [MIDI] IN/OUT *Only included cable can be used.
  • Functions:
    • USB audio interface [Sampling Frequency = 44.1 kHz (quantization bit depth: 24-bit)] Input: 2 channels (stereo 1 channel), Output: 2 channels (stereo 1 channel)
    • Bluetooth MIDI transmission/reception (wireless capability varies by country)
    • Wi-Fi Data transmission/reception with dedicated app (wireless capability varies by country) The highest SAR value: 1.11 W/kg
• Sound System:
  • Speakers:
    • 2.3 cm, 1 W
  • Microphone:
    • Internal MEMS microphone
• Power Supply:
  • Power Source:
    • Rechargeable lithium-ion battery (2,100 mAh, 7.6 Wh) USB Power Delivery (PD) (Output voltage: 4.8 V to 5.2 V, Output current: 1.5 A or greater)
  • Power Consumption:
    • 6 W
  • Battery life for continuous use:
    • 3-4 hours
  • Battery charge time:
    • 3-5 hours
• Size/Weight:
  • Dimensions:
    • Width:
      • 343 mm (13-1/2″)
    • Height:
      • 38 mm (1-1/2″)
    • Depth:
      • 97 mm (3-13/16″)
  • Weight:
    • Weight:
      • 0.5 kg (1 lb 2 oz)
  • Packing Box:
    • Width:
      • 420 mm (16-9/16″)
    • Height:
      • 90 mm (3-9/16″)
    • Depth:
      • 165 mm (6-1/2″)
• Other:
  • Included Accessories:
    • USB-C to USB-C cable, dedicated MIDI Converter Cable, Quick Operation Guide, Safety Guide
  • Dedicated Software:
    • SEQTRAK app
  • Sequencer Block:
    • Maximum Steps:
      • 128
