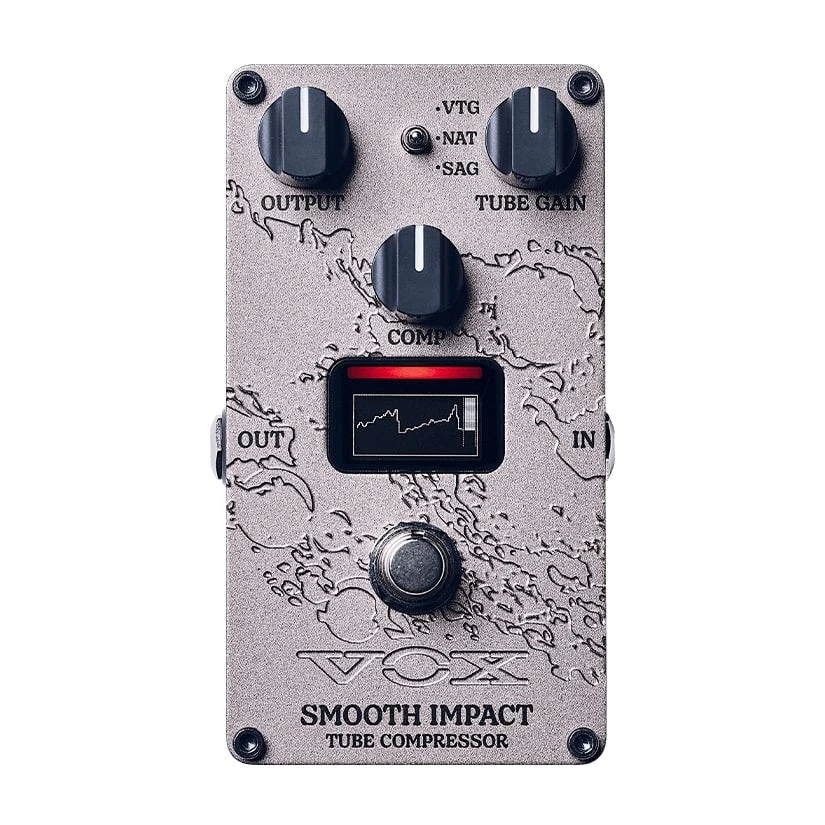

Vox – Smooth Impact Tube Compressor Pedal – Vox

Produce Clear Tones with a Gentle Touch: The First Vacuum Tube Compressor in Pedal Form. SMOOTH IMPACT is a genuine vacuum tube compressor that utilizes the gain variation resulting from fluctuations in Nutube’s power supply voltage. It marks the debut of a pedal-type vacuum tube compressor, offering a distinct, natural playing feel unlike compressors of other types. Instead of conventional VCA, optical, or FET methods, it harnesses the non-linear realm of tubes, featuring harmonics derived uniquely from vacuum tubes, setting it apart from clipping. Emphasizing the compression effect, it not only provides cutting tones but also allows for a solid sound with a light touch, even with settings that don’t convey the nuances of compression. This makes it highly effective for players who are not fans of compressors and for modern-style clean-tone backing, tapping, and more. Additionally, connecting it to solid-state amps or digital devices and incorporating the nuances of vacuum tubes is recommended. You can choose the character with the mini switch. VTG (Vintage) Mode Emphasizing the attack, this mode produces a classic sound with extended sustain. It’s effective for creating impactful sounds with cutting techniques. NAT (Natural) Mode As the name suggests, it offers a natural feel, avoiding the sensation of “obviously using a compressor pedal.” While providing a natural playing experience, it brings out nuances that may be subtle on high strings, making it perfect for modern backing or tapping performances. Compared to Vintage Mode, NAT Mode operates quickly, applying compression from the attack and featuring a shorter release. This makes it effective for achieving a natural sustain control, aligning the granularity of sound, or boosting volume without unnatural sustain control. SAG (Sagging) Mode This mode replicates the sag (SAG) that occurs when vintage tube amps are played at high volumes. It delivers the natural compression and distorti

• Inputs/Outputs: INPUT terminal (monaural phone jack), OUTPUT terminal (monaural phone jack), DC.9V terminal
• Controls: TUBE GAIN: Adjusts the amount of signal sent to Nutube. As you turn it, distortion from Nutube is gradually introduced.
• COMP: Controls the compression level. It allows you to adjust the texture of compression through interaction with TUBE GAIN.
• OUTPUT: Adjusts the output volume.
• Mini Switch: Offers three modes that you can choose based on your preference and the situation.
• VTG (Vintage): This mode has a fast attack time and a slow release time. Compression kicks in from the attack, making it the most intensely compressed mode. It delivers the typical sound of a compressed guitar.
• NAT (Natural): With a slow attack time and a fast release time, this setting preserves the attack feel while providing compression, resulting in a more natural nuance.
• SAG (Sagging): This mode provides a natural compression and distortion, similar to what you experience when playing a tube power amp. It’s ideal for adding a tube amp-like quality to solid-state amps or digital equipment.
• Power Supply: 9V alkaline batteries (6LF22/6LR62) or DC.9V AC adapter (both sold separately)
• The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.
• Dimensions (W x D x H): 72mm x 120mm x 55mm (plug retracted/ VE-TS H:54mm)
• Weight: 300 g (excluding batteries)
• Accessories: AC adapter KA181(9V) (sold separately)
