Two Notes Torpedo Captor X 8 Ohm – Two Notes Audio

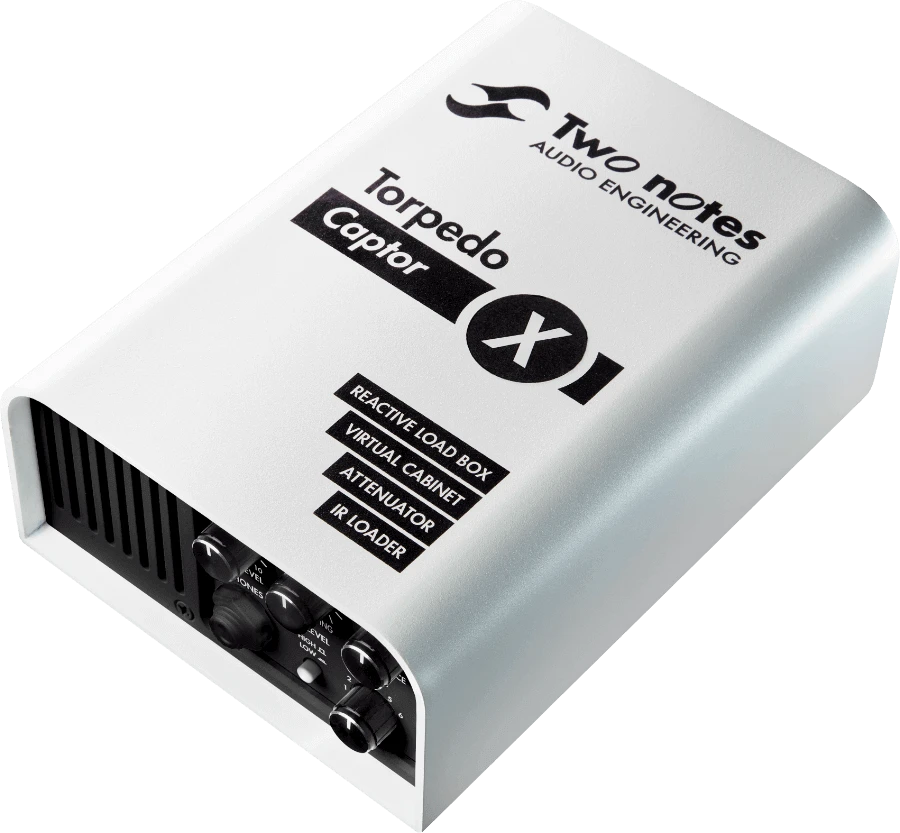

Torpedo Captor X is the award-winning compact reactive load box, tube amp attenuator, miked cab simulator, IR loader and stereo expander for home, live and studio use.

Specs

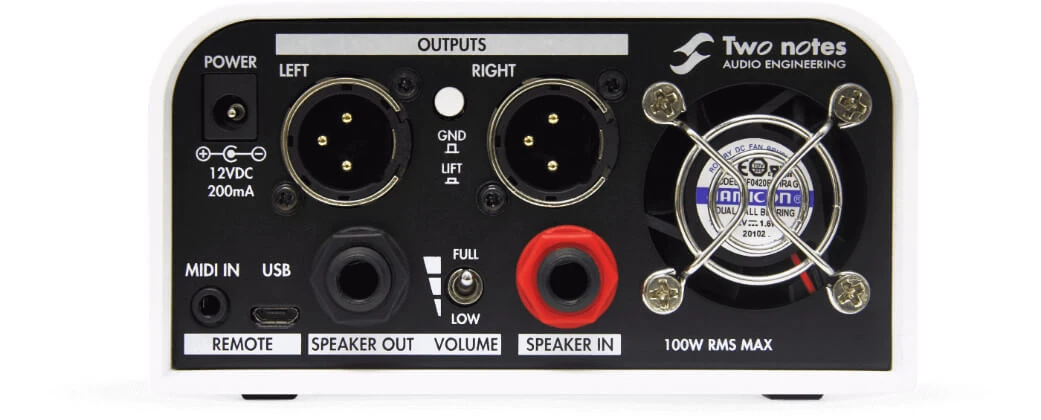

Input / Output

Speaker input:
1/4″ jack unbalanced (TS)

Speaker output:
1/4″ jack unbalanced (TS)

Headphones output:
1/4″ jack balanced (TRS)

Left / Right outputs:
XLR Balanced
Maximum output level: 15 dBu
Impedance: 600 Ohms

MIDI input:
1/8″ jack balanced TRS
Jack to MIDI cable adapter supplied

USB connector:
USB 2.0 Micro-B
USB Micro-B to USB A cable supplied

Dimensions & weight

Width x Depth x Height*:
12.8cm x 17.5cm x 6.4cm – 5″ x 6.7″ x 2.5″
*Including connectors and knobs

Weight:
1300 g / 2.9 lbs



Load box

Maximum Admissible Power :
100W RMS

Impedance :
8Ohm or 16Ohm depending on version

Attenuation levels :
-38 dB, -20 dB, 0dB

Digital Audio

AD/DA Converters:
Studio-grade 24-bit / 96 kHz

Bandwidth (-1dB):
30 Hz – 19 kHz

Signal-to-noise ratio:
> 95 dB

Internal Processing:
32-bit floating-point

Latency:
2.2 ms (Speaker Input to Left/Right Outputs)

Power

Power input connector:
DC connector, 2.1mm x 5.5mm, center negative

Supplied adapter:
100-240v AC to 12v DC 2A
