Two Notes TNCABM+ Cab Simulators – Two Notes Audio

C.A.B. M+ offers a studio grade, amp-free rig loaded with 32 premium DynIR Virtual Cabinets. Every cabinet includes a choice of 12 room emulations and 8 mics. Building on the success of the acclaimed Torpedo C.A.B. M, the C.A.B. M+ includes a stunning clean preamp, refined power amps, enhancer, tuner, expanded reverbs and noise gate.



Specs

Input / Output

Amp/Inst/Line Input:
1/4″ Jack balanced (TRS)

In Level Switch*:
+12dB: Max level: 4 dBu, Impedance: 1 MOhms
0dB: Max level: 16 dBu, Impedance: 57 kOhms
-24dB: Max level: 40 dBu, Impedance: 47 kOhms
*Affects input sensitivity and impedance

Aux In:
1/8″ (3.5mm) TRS Jack
Downmixed to mono

Speaker output*: 1/4″ Jack balanced (TS)
*Unprocessed, unbuffered, directly connected to Amp In

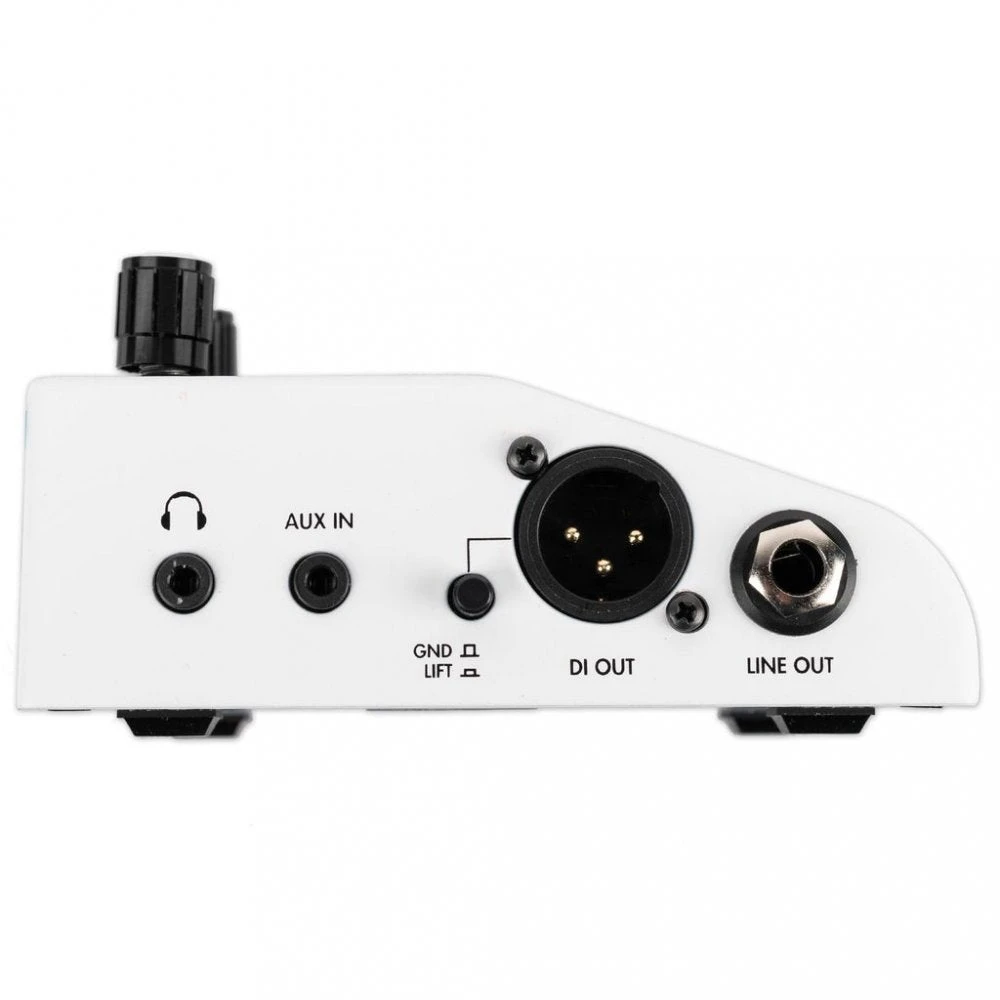

DI output*:
XLR balanced
Max level: 10 dBu
Impedance: 300 Ohms
*Protected against +48V phantom power

Line output:
1/4″ Jack balanced (TRS)
Max level: 10 dBu
Impedance: 300 Ohms

Headphones output:
1/8″ Mini-Jack (TRS)

USB connector:
USB 2.0 Micro-B

Memory card:
256Mb Micro-SD included Up to 32Gb cards supported

Digital Audio

AD/DA Converters:
Studio-grade 24-bit / 96 kHz

Bandwidth (-1dB):
30 Hz – 19 kHz

Signal-to-noise ratio:
91 dB

Internal Processing:
32-bit floating-point

Latency:
2.2 ms (Line Input to Line Output)

Power

Power input connector:
DC connector, 2.1mm x 5.5mm, center negative

Supplied adapter:
100-240v AC to 12v DC 1A

Power consumption:
Approximately 2W

Current consumption:
200mA

Dimensions & weight

Width x Depth x Height*:
12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″
*Including connectors and knobs

Weight: 450 g / 0.99 lbs
