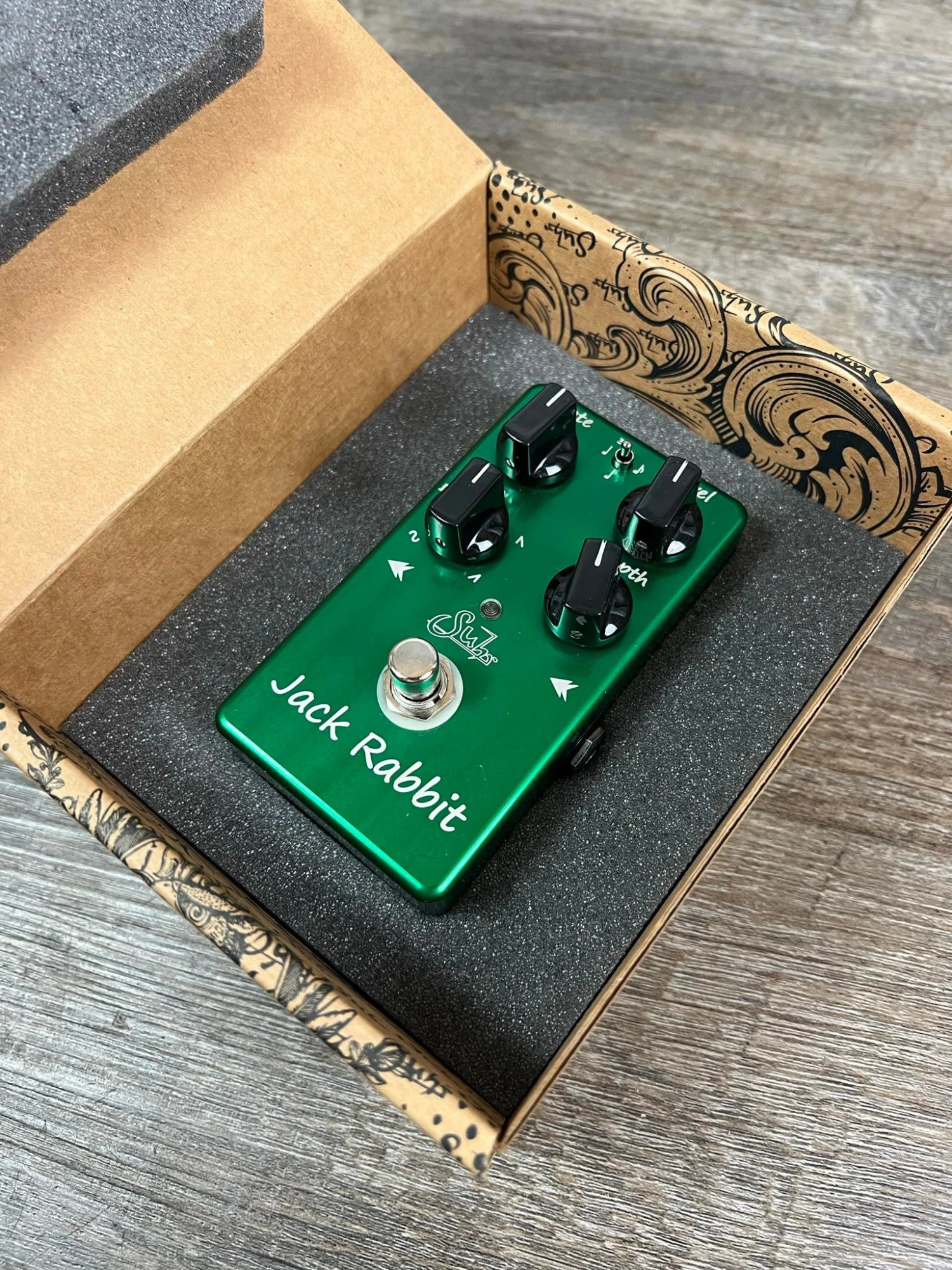

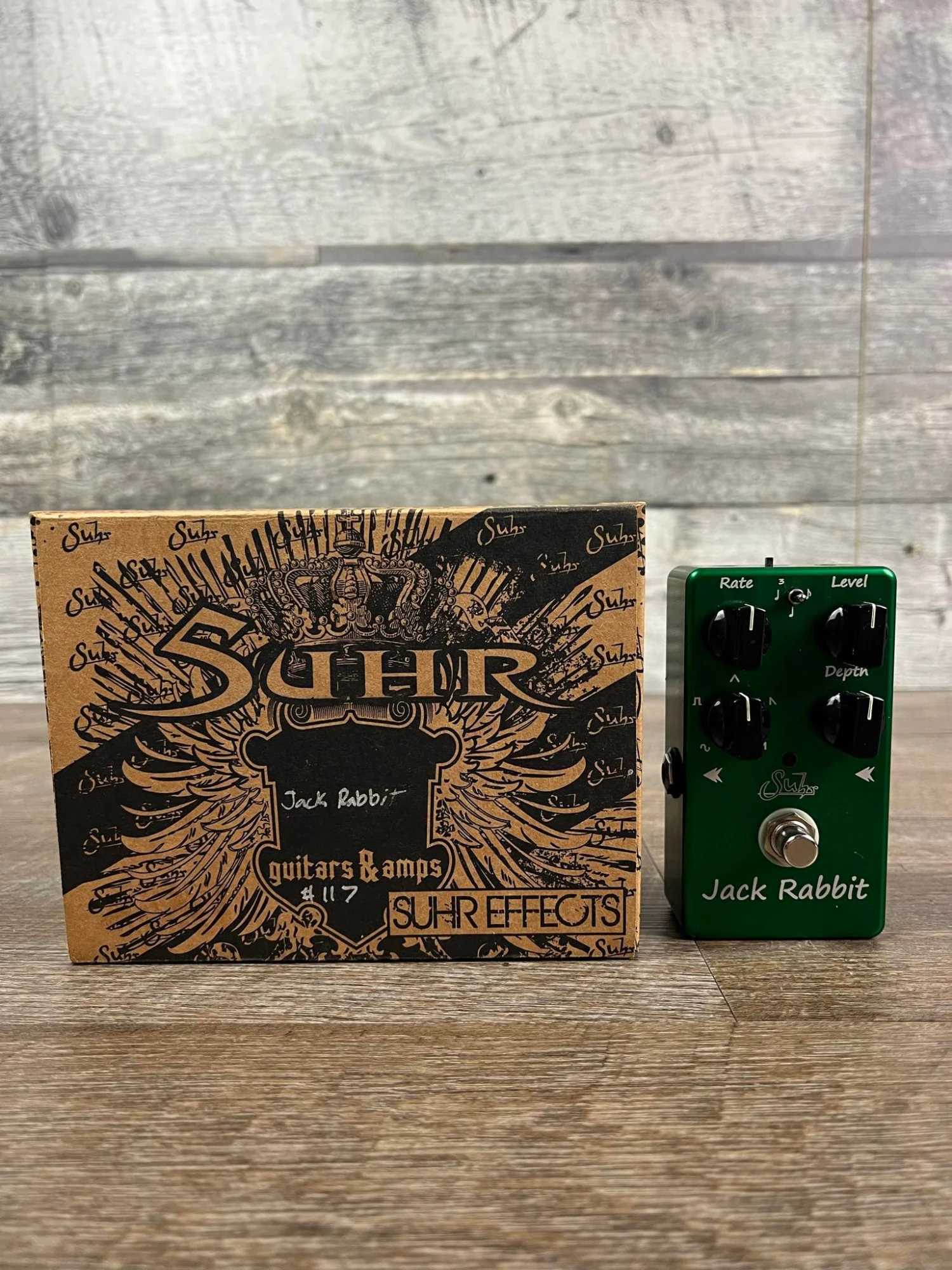

** This pedal is used but it’s in perfect condition and comes with its original box **

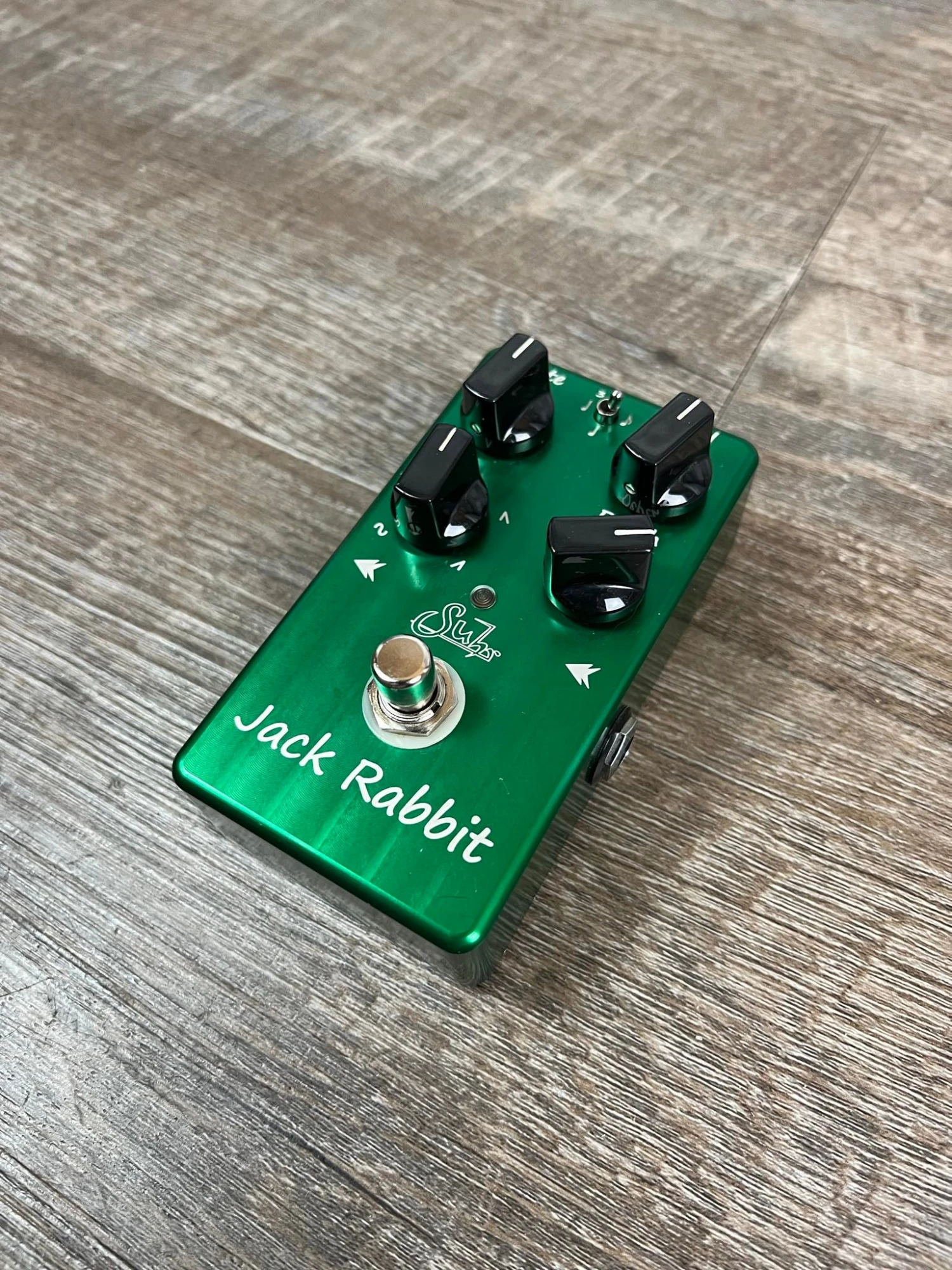

Jack Rabbit is a high quality analog pedal, that delivers a wide variety of tremolo effects – from warm wobble to whacked out. It features simple control over tempo by incorporating both tap, and strum tempo modes. It’s modulation rate spans from 1Hz to 20Hz and utilizes a tempo subdivision switch. The Jack Rabbit Tremolo is housed in a sturdy, aluminum enclosure for maximum protection from abuse. It can be remote controlled via the FX Link jack.
Like all Suhr pedals, the Jack Rabbit Tremolo is True Bypass and can be powered from 9-18Vdc, drawing low current for extended battery life. It is protected from both over voltage and reverse voltage.
CONTROLS

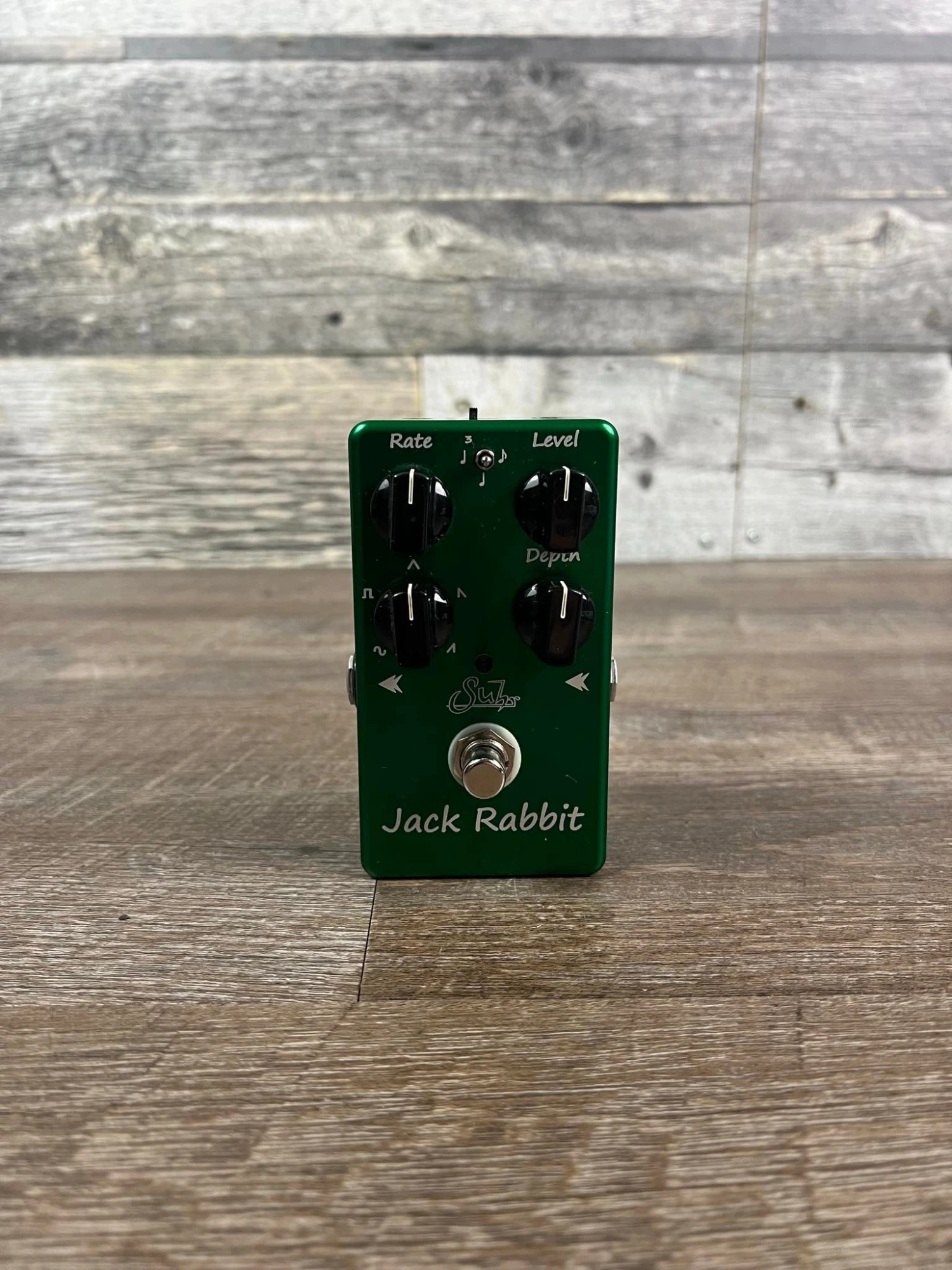

Jack Rabbit features an easy to tweak layout which includes Rate, Level, Waveform, and Depth controls.
Rate:
Controls the speed of the tremolo effect, from 1Hz to 20Hz.
Level:
Controls the output level of the pedal, from +0dB to +14dB.
Depth:
Controls the depth of the tremolo effect.
Waveform:
Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.
| Input Impedance: | 1M Ohm |
| Output Impedance: | 600 Ohm |
| Power Connector: | 9Vdc regulated, center negative, 2.1mm x 5.5mm |
| Operating Voltage: | 5V to 18V (nominal 9V) |
| Maximum Voltage: | 20Vdc |
| Reverse Battery Protection: | Yes |
| Over Voltage Protection: | Yes |
| Current Consumption: | < 20mA |
| Estimated Battery Life: | 25-50 hours of continuous use |
| FX Link Connector: | 1/8″ Stereo |
| FX Link Max Voltage: | 3.3Vdc |
| Shield → Tip: | Activate On/Off |
| Shield → Ring: | Activate Tap Tempo |
| ROHS Compliant: | Yes |
| Dimensions: | 2.5”(W) x 4.5”(D) x 1.25”(H) |
| Weight: | 0.75lb |
