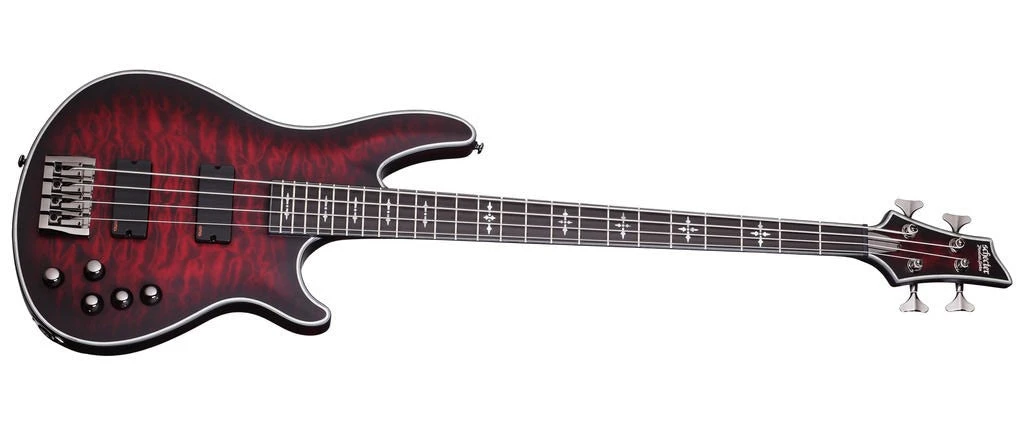

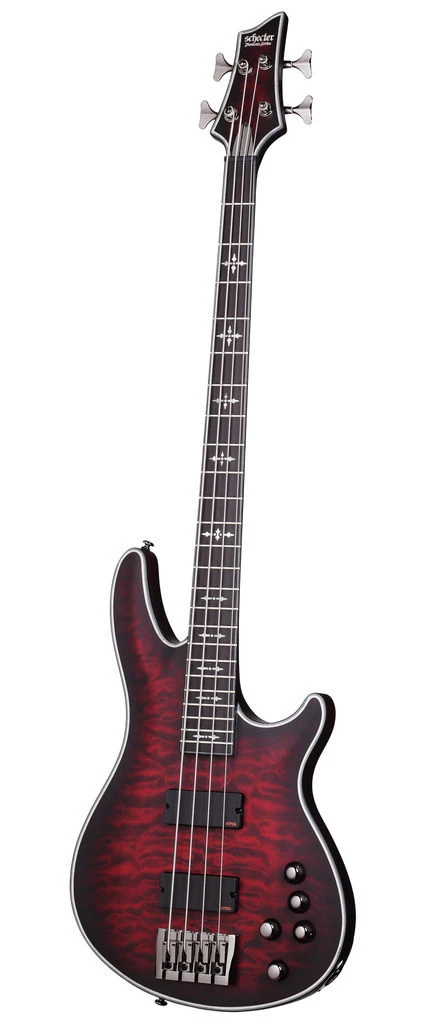

Schecter Hellraiser Extreme-4 Crimson Red Burst Satin – Schecter

SPECIFICATIONS

General

• Model Name: Hellraiser Extreme-4

• Item Number: 1910

• Guitar Color Shown: Crimson Red Burst Satin (CRBS)

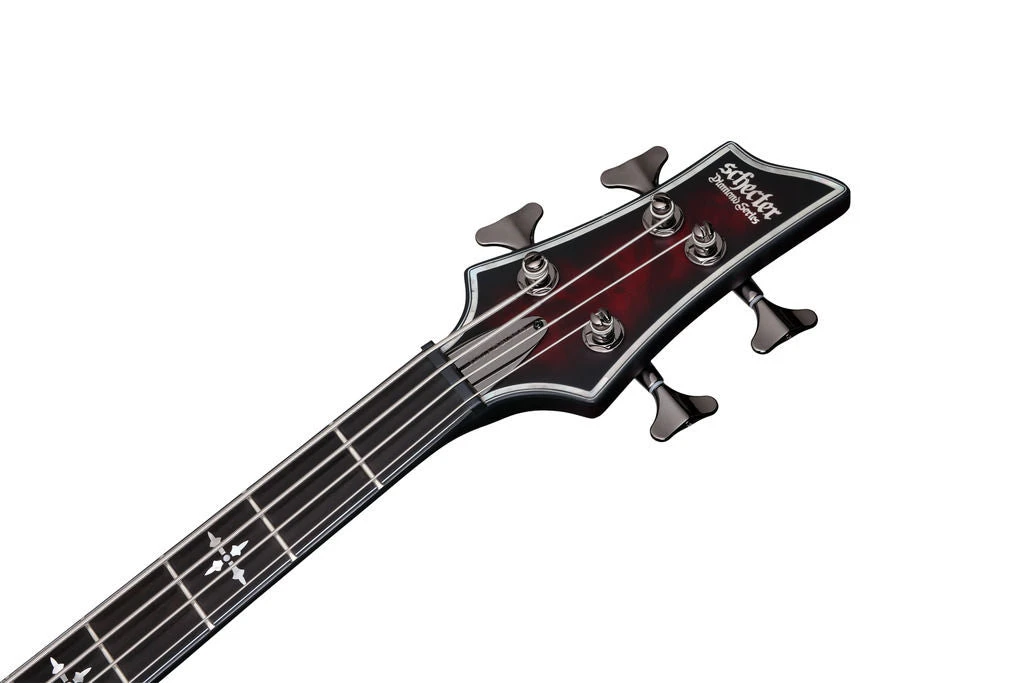

Neck

• Tuners: Grover

• Fretboard Material: Ebony

• Neck Material: Maple/Walnut Multi-ply

• Inlays: MOP Gothic Crosses

• Scale: 34″ (863mm)

• Neck Shape: Thin “C”

• Thickness: 1st Fret – .787″ (20mm), 12th Fret – .866″ (22mm)

• Frets: 24 X-Jumbo

• Fretboard Radius: 16″ (406mm)

• Nut: Graph Tech XL Black Tusq

• Nut Width: 1.496″ (38mm)

• Truss Rod: 2-Way Adjustable Rod w/ 5/32″ (4mm) Allen Nut

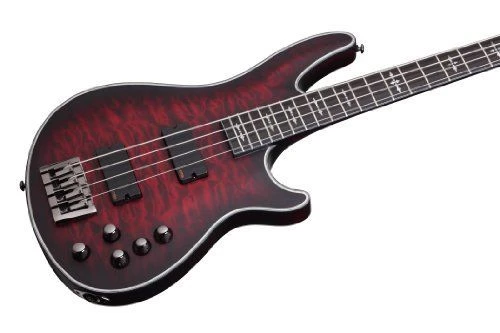

Body

• Guitar Colors: Crimson Red Burst Satin (CRBS)

• Hardware Color: Black Chrome

• Top Contour: Arched Top

• Dexterity: Right Handed

• Construction: Neck-Thru w/Ultra Access

• Body Material: Mahogany

• Top Material: Quilted Maple

• Binding: MOP w/ BLK/WHT/BLK Multi-ply

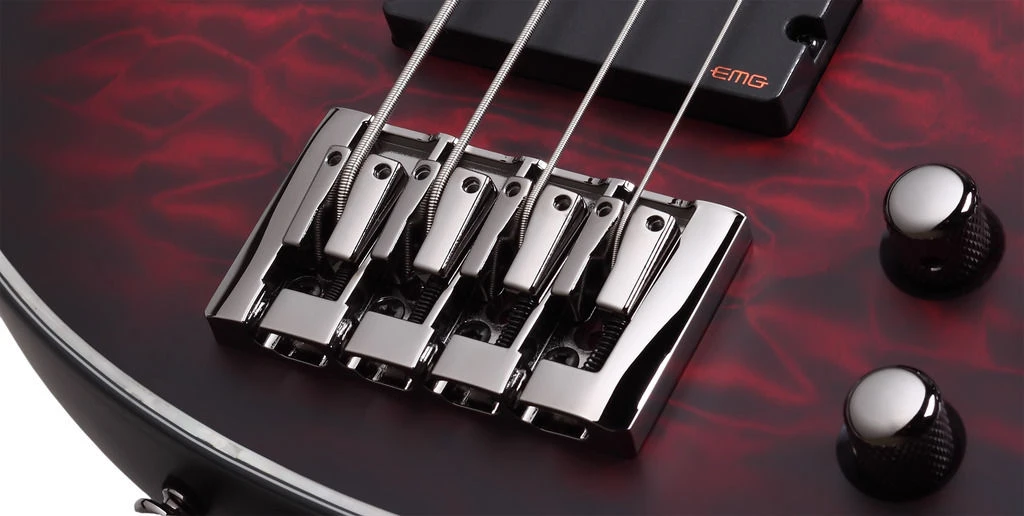

• Bridge: Schecter Custom Bass String Thru (or Top Load)

Electronics

• Controls: Volume (Push-Pull) / Volume (Push-Pull) / Active EMG 3-Band EQ

• Bridge Pickup: EMG 35TW

• Neck Pickup: EMG 35TW

• Battery Compartment: 18-volt w/Screw Plate

Accessories

• Knobs: Metal Knurled w/ Set Screw

• Strings: Ernie Ball 4 String Super Long #2849 (.045-.105)

• Case: 1670 SGR-6B C-Shape Bass Hardcase (Sold Separately)
