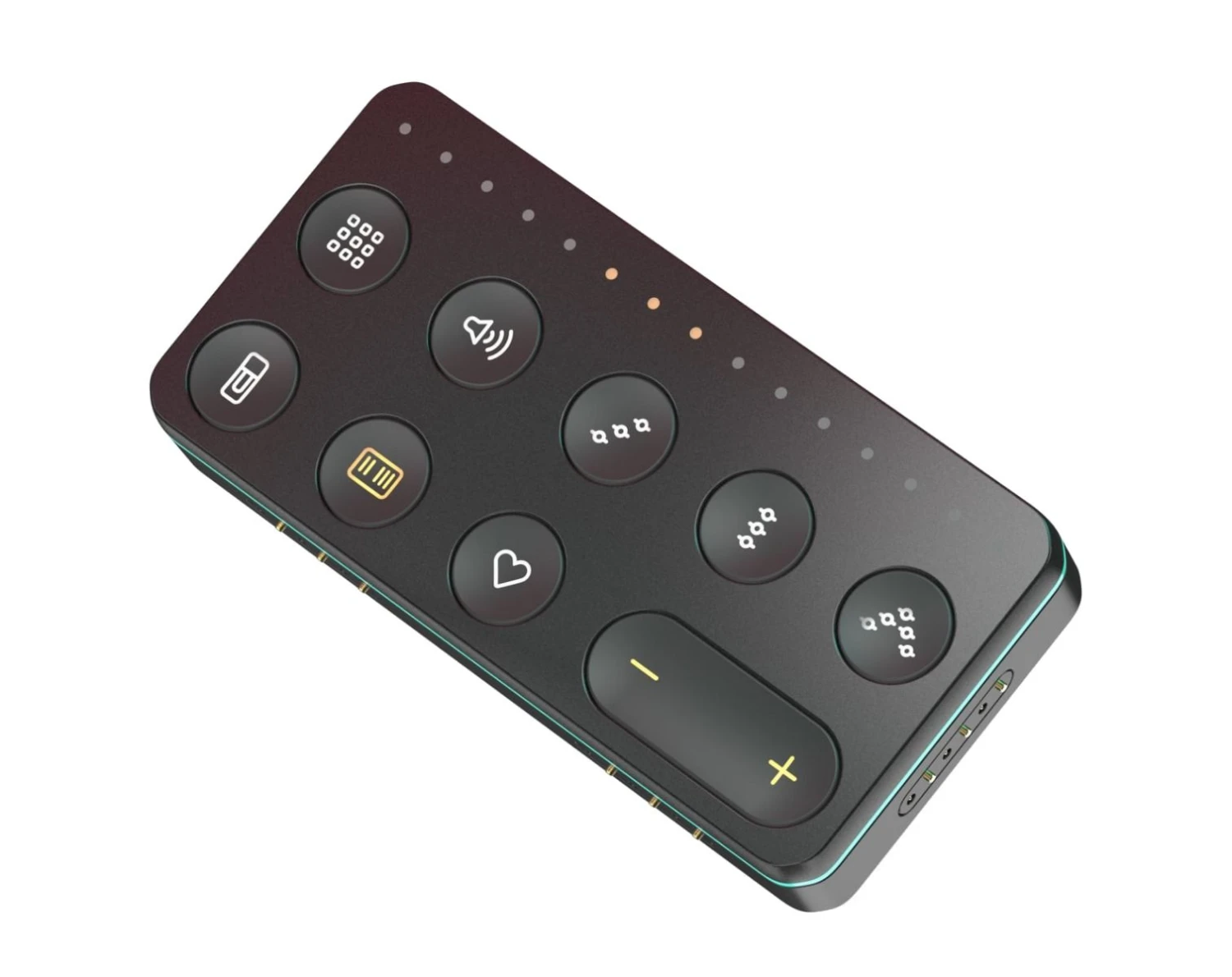

Perform with the Live Block

The Live Block is for performance. When you’re playing live — whether on stage or in your favorite chair — every second counts. The buttons let you switch scales and octaves, trigger chords and arpeggios, and sustain notes in real time.

Connect with a click

Live Block connects with a click to Lightpad Block or Seaboard Block. Just lift one finger from your musical surface, and you can adjust performance parameters in real time. Connect it to any part of Lightpad Block or Seaboard Block — or not at all. Live Block works wirelessly, even when it’s not physically connected.

Specifications

• Connectivity / ports: 6 DNA connectors.
• Bluetooth: 15 meter Bluetooth range.
• Mac OSX and iOS only.
• Battery: Charges via connection to the Lightpad Block or Seaboard Block.
• System Requirements: Requires Lightpad Block or Seaboard Block.
• Power: USB / DNA Input Voltage: 5.0V ± 0.2V DC

Dimensions and weight:

• Width: 95mm (3.75 inches).
• Height: 20.5mm (0.8 inches).
• Depth: 48mm (1.8 inches).
• Weight: 160g (0.35 pounds).
