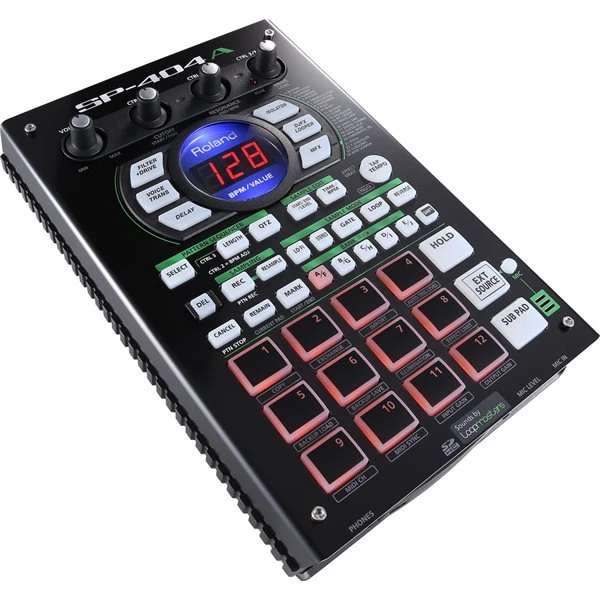

Roland SP-404A Linear Wave Sampler – Roland

Designed for live use, the SP-404A Linear Wave Sampler expands the sounds of the Roland AIRA TR-8 Rhythm Performer for a powerful combination of sample and percussive synthesis. The fast, hands-on approach of the acclaimed SP-series performance samplers is a perfect fit for the impressive rhythmic effects and iconic step-sequencer of the Roland AIRA TR-8.

All of the functions and features of the popular SP-404SX are contained in the SP-404A, including its distinctive 16-bit linear sampling, 29 onboard DSP effects, smooth FX switching, and 12 professional performance pads. Plus, a new library of sounds curated by sample-industry leader Loopmasters are provided via the included SD card.

Whether used standalone or controlled by the TR-8, the SP-404A makes for an intuitive and inspiring addition to the AIRA range of performance instruments for DJs, musicians, and producers.

Specifications

Maximum Polyphony

• 12 voices

Recordable Data

• Samples: 120 (12 samples × 10 banks) (stored on SD card)
• Patterns: 120 (12 patterns × 10 banks) (stored on SD card)

Sampling Time (Total time for all samples)

• The maximum sampling time for a single sample is approximately 180 minutes in stereo (2 GB).
• Approximate total sampling time on SD card:
  • 1 GB / Approx. 90 min. (180 min.)
  • 2 GB / Approx. 180 min. (360 min.)
  • 4 GB / Approx. 360 min. (720 min.)
  • 8 GB / Approx. 720 min. (24 hours)
  • 16 GB / Approx. 24 hours (48 hours)
  • 32 GB / Approx. 48 hours (96 hours)

Data Format

• 16-bit linear (.wav/.aiff)
• Sampling Frequency: 44.1 kHz

Pattern Sequencer

• Maximum recordable notes: Approx. 16,000 notes
• Resolution: 96 ticks per quarter note
• Pattern length: 1–99 measures
• Recording method: Realtime Loop Recording (with shuffle quantize function)

Effects

• 29 types

Pads

• 12 + Sub pad × 1

Controllers

• Control knob × 3

Display

• 7 segments, 3 characters (LED)

Onboard Mic

• Mono × 1

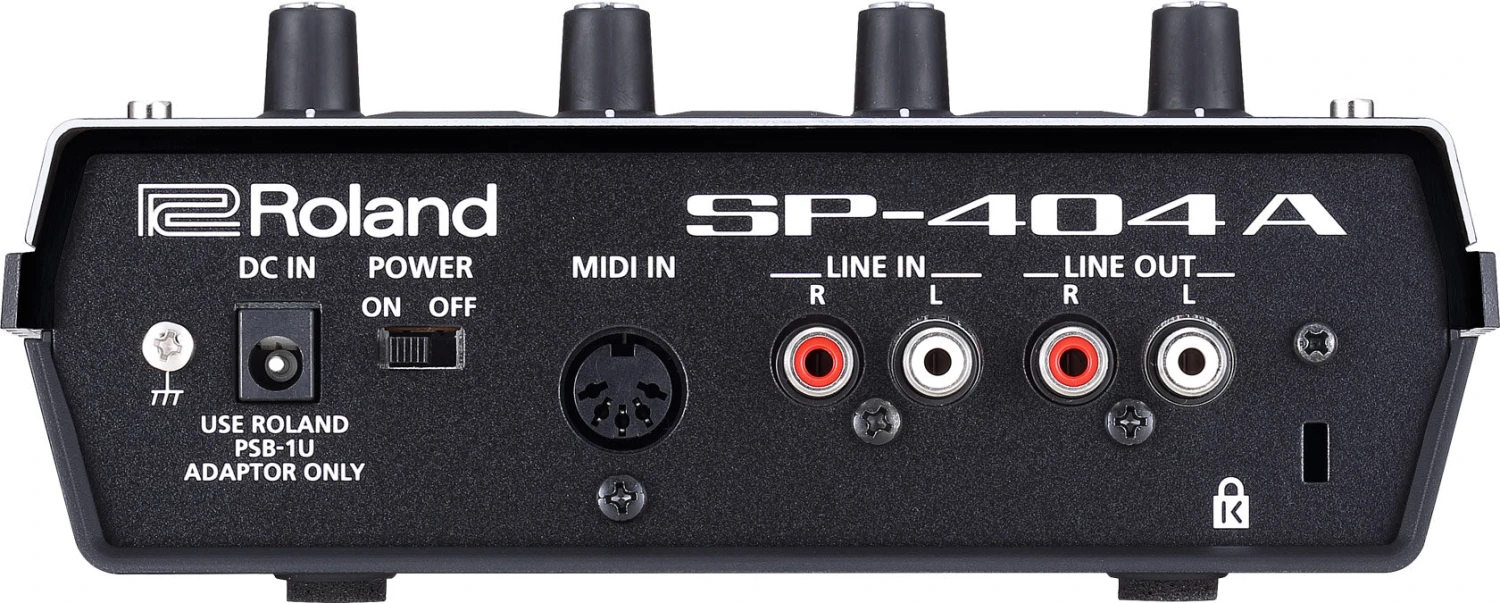

Connectors

• LINE IN jacks (L, R) (RCA phono type)
• LINE OUT jacks (L, R) (RCA phono type)
• PHONES jack (Stereo 1/4-inch phone type)
• MIC IN jack (1/4-inch phone type)
• MIDI IN connector
• DC IN jack
• SD card slot

Power Supply

• AC Adaptor or Alkaline battery (AA, LR6)/Rechargeable Ni-MH battery (AA, HR6) × 6
• Batteries sold separately

Battery Life for Continuous Use

• Rechargeable Ni-MH battery: Approximately 5 hours (When using batteries having a capacity of 1,900 mAh.)
• Alkaline battery: Approximately 4 hours
• Figures will vary depending on actual conditions of use.

Accessories

• SD Card
• AC Adaptor
• Owner’s Manual

SIZE AND WEIGHT

• Width: 178 mm (7 inches)
• Depth: 257 mm (10-1/8 inches)
• Height: 73 mm (2-7/8 inches)
• Weight (excluding AC adaptor): 1.2 kg (2 lbs 11 oz)
