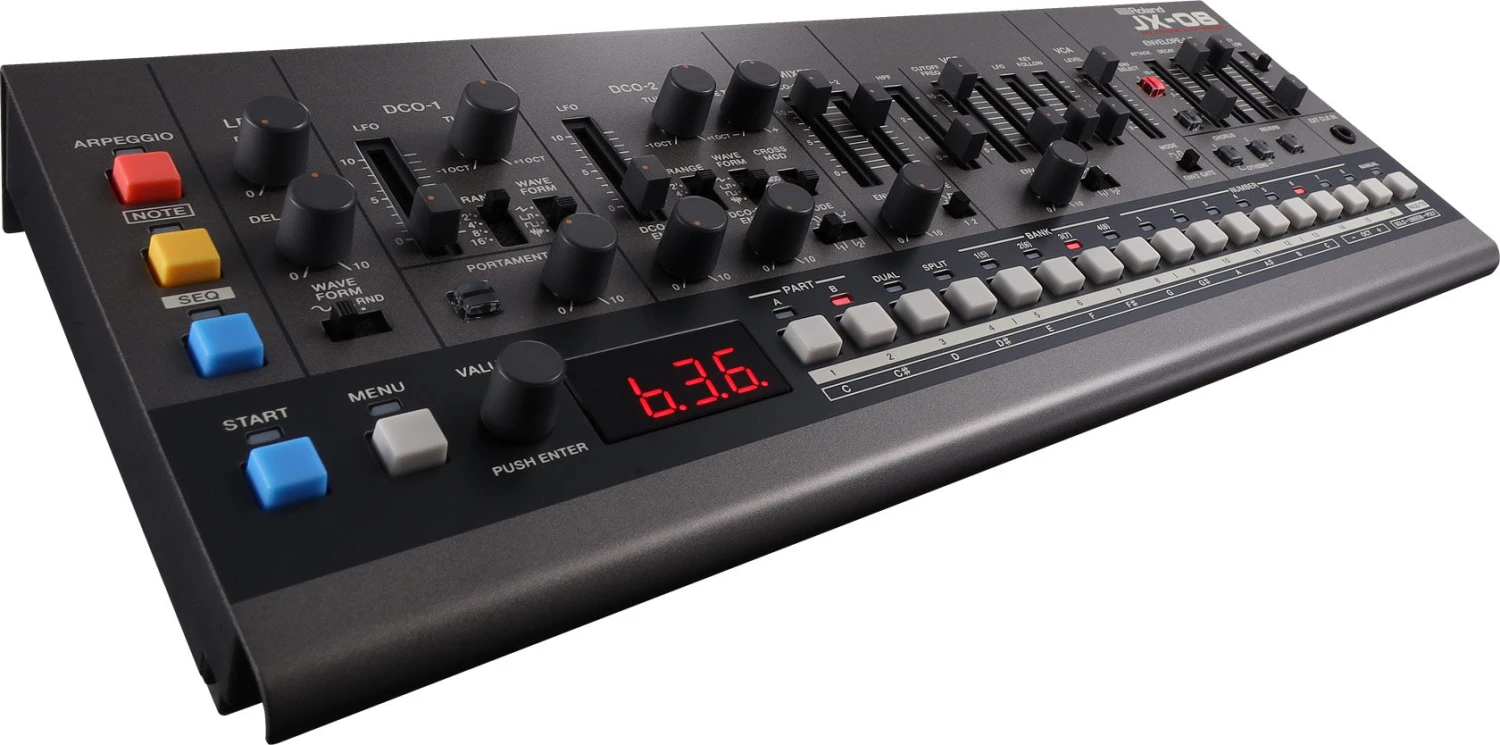

Roland JX-08 Boutique Sound Module – Roland

An ’80s icon on your tabletop.

In 1985, Roland’s innovative JX-8P took hybrid synthesis a step further with a compelling new analog-digital voice. The instrument was instantly embraced by top session players, who forever embedded its warm pads, shimmery chorus, and crystalline textures into the era’s most popular tracks. The JX-08 reintroduces the unique sound of this sought-after classic in stunning detail, coupled with powerful new effects, a polyphonic sequencer, and more. And to enhance your creative flow, there’s a full panel of hands-on controls derived from the companion PG-800 programmer unit for the original hardware.

Features

• Authentic JX-8P sound and behavior
• PG-800 programmer functions included
• Includes 32 presets from the original JX-8P plus 111 new presets
• 17 new effect types including JUNO-106 chorus, SDD-320 reverb, lo-fi comp, super filter, pitch shifter, and more
• Two-part, 64-step, eight-note (per part) polyphonic sequencer with motion recording, random pattern generator, and memory for 128 patterns
• Onboard arpeggiator
• Expanded polyphony compared to the original hardware, up to 20 voices
• Two-part multitimbral for playing multiple patches with dual and split capabilities
• USB-C audio/MIDI interface, full-size MIDI I/O, and external clock input
• Portable design for mobile music making
• High-quality construction with metal front panel
• Powered via batteries (4 x AA) or USB-C
• Control information can be sent and received via MIDI and USB-C
• Built-in powered mini speaker for instant enjoyment

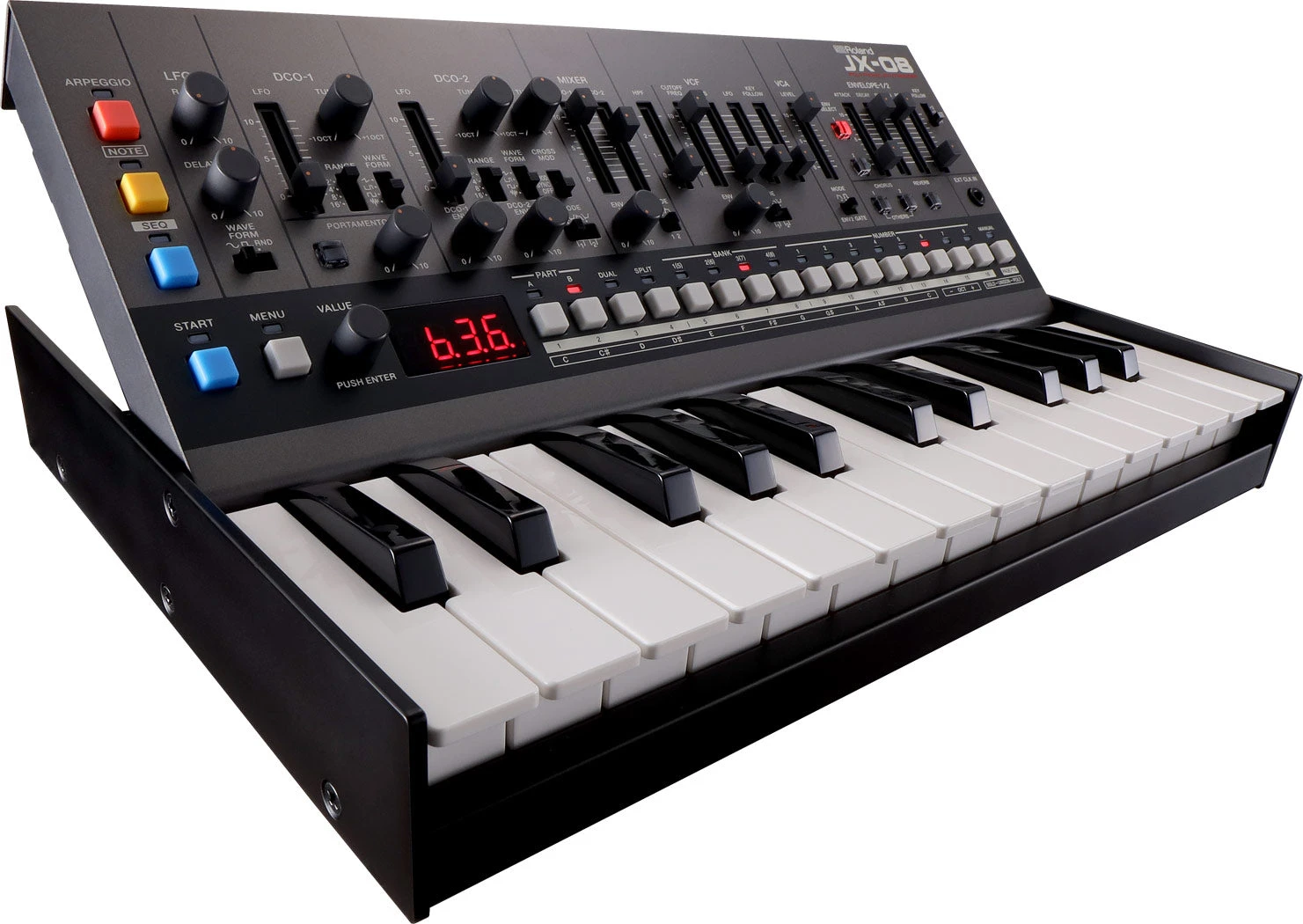

• Compatible with optional DK-01 Boutique Dock or K-25m Keyboard Unit

Specifications

User Memory

Sound Patch: 256
Pattern: 128

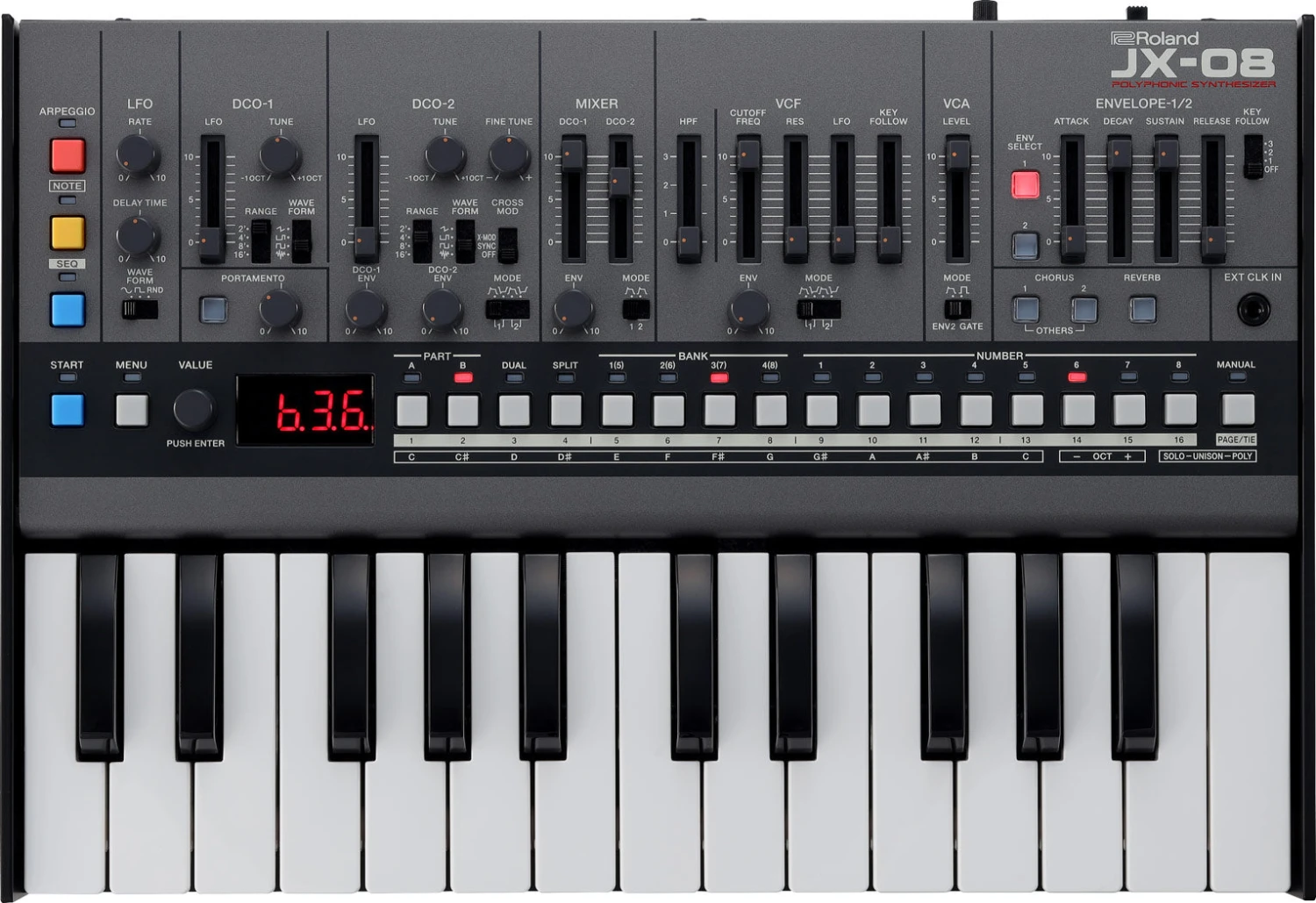

Controllers

Rear Panel
Power switch
VOLUME knob

LFO Section
RATE knob
DELAY TIME knob
WAVE FORM switch

DCO-1 Section
LFO slider
TUNE knob
RANGE switch
WAVE FORM switch

DCO-2 Section
LFO slider
TUNE knob
FINE TUNE knob
RANGE switch
WAVE FORM switch
CROSS MOD knob
DCO-1 ENV knob
DCO-2 ENV knob
MODE switch

MIXER Section
DCO-1 slider
DCO-2 slider
ENV knob
MODE switch

VCF Section
HPF slider
CUTOFF FREQ slider
RES slider
LFO slider
KEY FOLLOW slider
ENV knob
MODE switch

VCA Section
LEVEL slider
MODE switch

ENVELOPE-1/2 Section
ENV SELECT 1, 2 buttons
ATTACK slider
DECAY slider
SUSTAIN slider
RELEASE slider
KEY FOLLOW switch

PORTAMENTO Section
MODE button
TIME knob

EFFECT Section
CHORUS 1, 2 buttons
REVERB button

ARPEGGIO button
NOTE button
SEQ button
START button
MENU button
VALUE knob
PART A, B buttons
DUAL button
SPLIT button
BANK 1(5)–4(8) buttons
NUMBER 1–8 buttons
MANUAL button

Effects

Chorus: 3
Delay: 4
Overdrive
FUZZ
Drive
Bit crusher
LOFI Comp
Phaser: 2
Filter
Pitch Shifter: 2

Step Sequencer

2 part
64 steps
8 notes per part (Polyphonic)

Display

7 segments, 4 characters (LED)

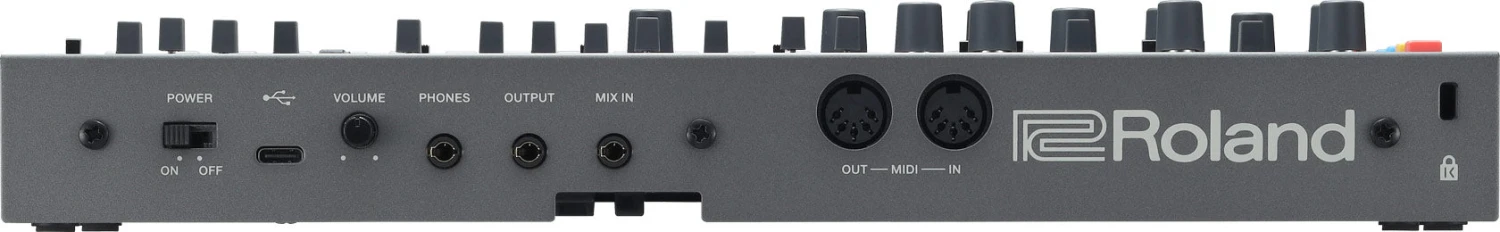

Connectors

EXT CLOCK IN jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: USB Type-C(R) (Audio, MIDI)

Power Supply

Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4
USB bus power

Current Draw

500 mA (USB bus power)

Expected battery life under continuous use

Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.)

* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Quick Start
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4

Options (sold separately)

Keyboard unit: K-25m
Boutique Dock: DK-01
