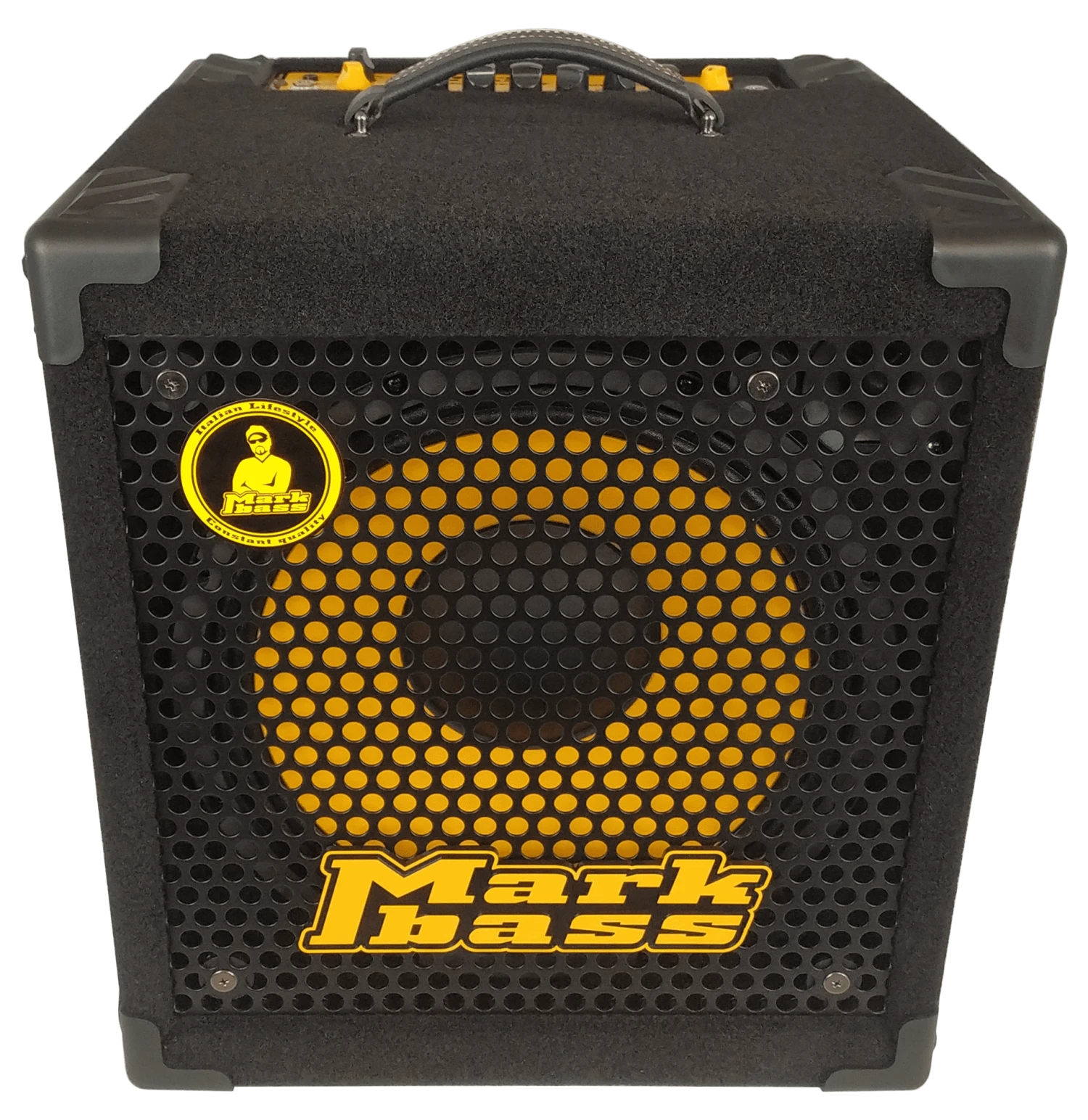

Markbass MINI-CMD121P-IV 1×12” 300-Watt Bass Combo Amplifier – Markbass

Our flagship combo Mini CMD 121P has changed the bass amp market forever. Never have bassists been able to get such great tone and volume from such a light and portable amp. This new version with Little Mark IV Combo head features the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat, Scooped or FSW. As for previous version it can be easily upgraded to a powerful 2×12″ 500W rig with the addition of a New York 121 cabinet.

• Unparalled power/weight ratio after years from its initial release in the 2005, this combo continues to lead the pack when it comes to big sound from a small package. The sound that comes from this amp simply does not match what you see when you look at such a small cube.
• Updated 4 band eq, old school filter, 3 way switch our updated 4 band eq section features very effective controls allowing you to easily find the sound you want, boosting or cutting up to 16db for each of the 4 bands to cover all the tonal nuances needed in any genre of music. Additionally the old school filter cuts your high frequencies and gives a round and smooth tone. The 3 way rotary-switch allows you to choose between a super-balanced flat tone, a scooped preset that drops the mids while boosting the lows and highs – giving a superb slap sound, or lastly the ‘fsw’ option to control both mute and the scooped eq on demand by connecting an optional dual footswitch.
• Bi-band limiter our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters do and lets your high end “Breathe” for a more natural sound. It makes our amp heads the best choice for anyone who enjoys a quick, punchy attack at high volumes.
• Powerful stack with new york 121 extension cabinet if you add the new york 121 to the mini cmd 121p combo, you’ll have a 500w 2×12” stack able to fill a large venue with headroom to spare.
• Takes up very little room on stage even when stacked on a new york 121 cabinet (which has the same dimensions), this combo creates a footprint on stage of only 15” x 14”. You’ll never have a problem fitting this rig on even the smallest of stages!

Specifications

Inputs:

• Input Impedance: 1 Mohm, max. voltage: 9 Vpp
• Return Impedance: 22 Kohm, max. voltage: 10 Vpp

Controls:

• GAIN: -46 dB to +23 dB range
• LINE OUT level control on the front panel
• PRE/POST EQ (for line out) switch on the rear panel
• GROUND LIFT switch on the rear panel
• MUTE SWITCH
• MASTER VOLUME

Equalization:

• LOW: center frequency 68 Hz; level: ±16 dB
• MID LOW: center frequency 360 Hz; level: ±16 dB
• MID HIGH: center frequency 800 Hz; level: ±16 dB
• HIGH: center frequency 10 kHz; level: ±16 dB
• OLD SCHOOL: max cut range: 250 Hz – 20 kHz
• 3 WAY SWITCH: flat/scooped-mid/FSW

Outputs:

• SEND EFFECTS: unbalanced, max. voltage 20 Vpp
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• LINE OUT balanced XLR, max. voltage 20 Vpp
• SPEAKER OUT: speakon/1/4” combo, 1/4”

Others:

• BI-BAND LIMITER
• FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID

Output Power:

• 500W RMS @ 4 ohm
• 300W RMS @ 8 ohm

Power Requirement:

• 100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to the region of sale)

Speaker:

• 1×12″

Tweeter:

• Piezo

Bass Reflex:

• Rear

Impedance:

• 8 ohms

Speaker Power Handling:

• 400W RMS (AES Standard)

Frequency Response:

• 45 Hz to 18 kHz

Crossover Frequency:

• 3.5 kHz

Sensitivity:

• 99 dB SPL

Weight: 25.79 lbs / 11.7 Kg Width: 14.96 in. / 38 cm Height: 16.73 in. / 42.5 cm Depth: 14.17 in. / 36 cm
