This front-ported 2×10 combo is a great option for gigging bassists who want to cut through the mix without a big rig. The more aggressive tone of the 10″ speakers means you can often get by just with this combo, but it does also stack with any 8 ohm Traveler or Standard cab, for more volume and headroom.
The CMD 102P IV combo is perfect for any situation. The new Little Mark IV Combo head features the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat, Scooped or FSW. The wedge cabinet design can be used either in a standard vertical position or as floor monitor, offering to you the best monitoring on stage.
Specs
GENERAL
• SPEAKER: 2×10″
• TWEETER: piezo
• BASS PORT: front
• IMPEDANCE: 8 ohms
• SENSITIVITY: 101 dB SPL
• SPEAKER POWER HANDLING: 400W RMS (AES Standard)
• FREQUENCY RESPONSE: 40 Hz to 18 kHz
• CROSSOVER FREQUENCY: 3.5 kHz
• OUTPUT POWER: 500W RMS @ 4 ohm, 300W RMS @ 8 ohm
• WEIGHT: 37.7 lbs / 17.1 Kg
• DIMENSIONS (W X H X D): 23.03 X 18.5 X 18.7 inches / 58.5 x 47 x 47.5 cm

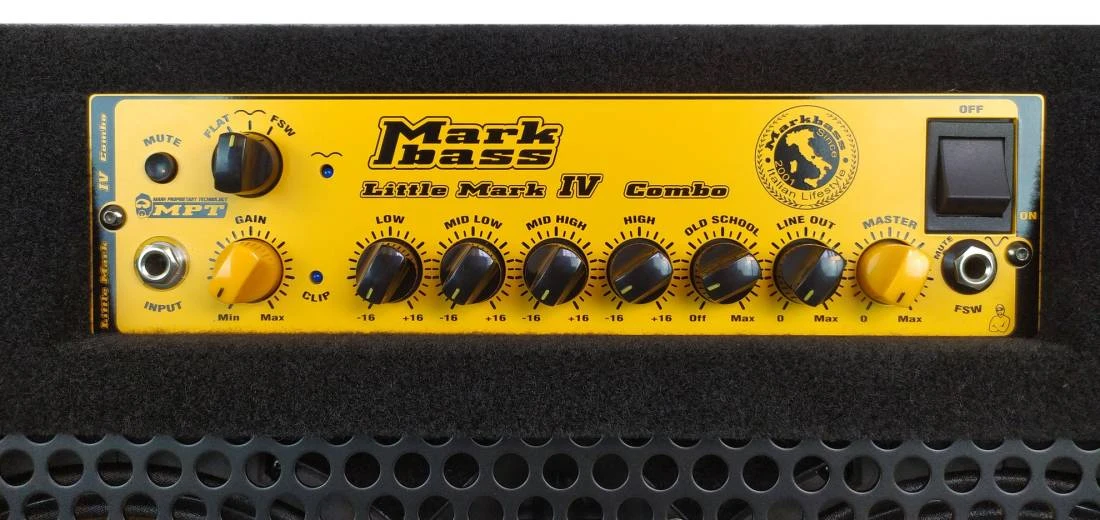

CONTROLS
• GAIN 46 dB to +23 dB range
• LINE OUT level control on front panel
• PRE/POST EQ (for line out) switch on rear panel
• GROUND LIFT switch on rear panel
• MUTE SWITCH
• MASTER VOLUME
EQUALIZATION
• LOW/MID LOW/ MID HIGH/ HIGH control knobs
• 3 WAY SWITCH: flat/scooped-mid/FSW
INPUTS
• UNBALANCED 1/4″ jack (front panel)
• FOOTSWITCH 1/4″ jack
OUTPUTS
• SEND EFFECTS: unbalanced, max. voltage 20 Vpp
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• LINE OUT balanced XLR, max. voltage 20 Vpp
• SPEAKER OUT: speakon/1/4″ combo, 1/4″
*Minimum ohm load for the Little Mark IV Combo head is 4 ohms.
