Korg VOLCAMIX Mixer For Volca Series With Built In Psu For 3 – Korg

An analogue performance mixer that completes your volca setup.

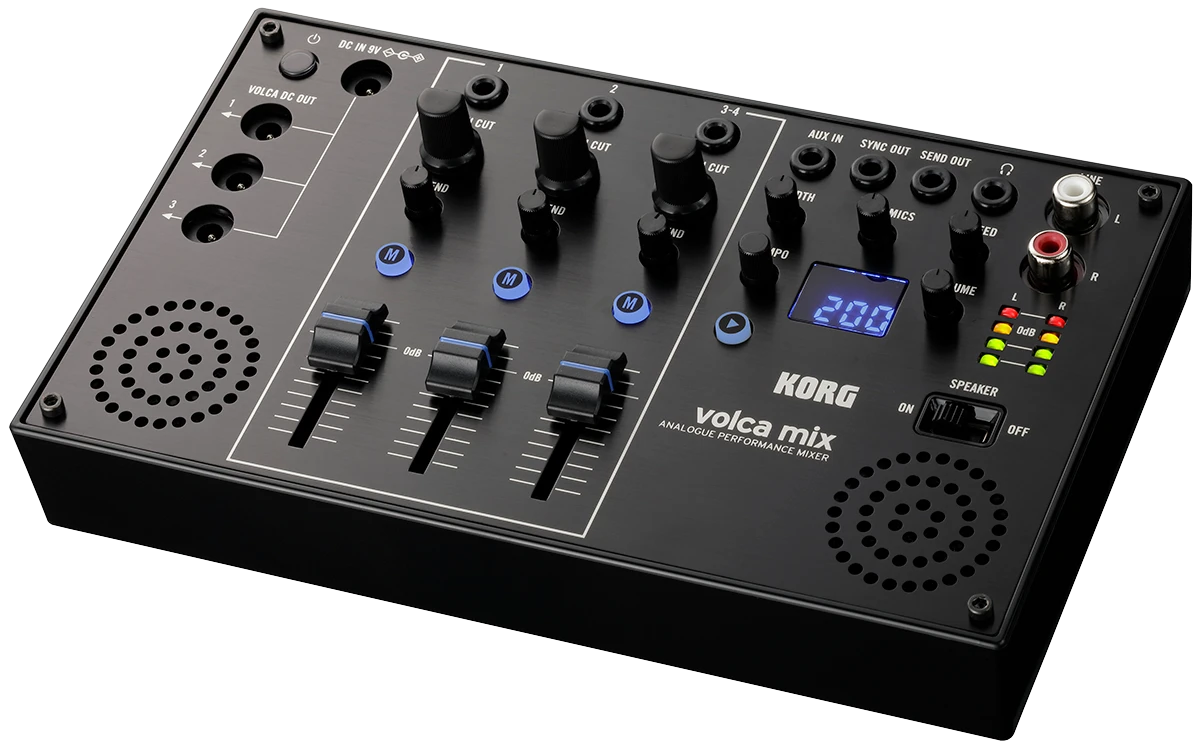

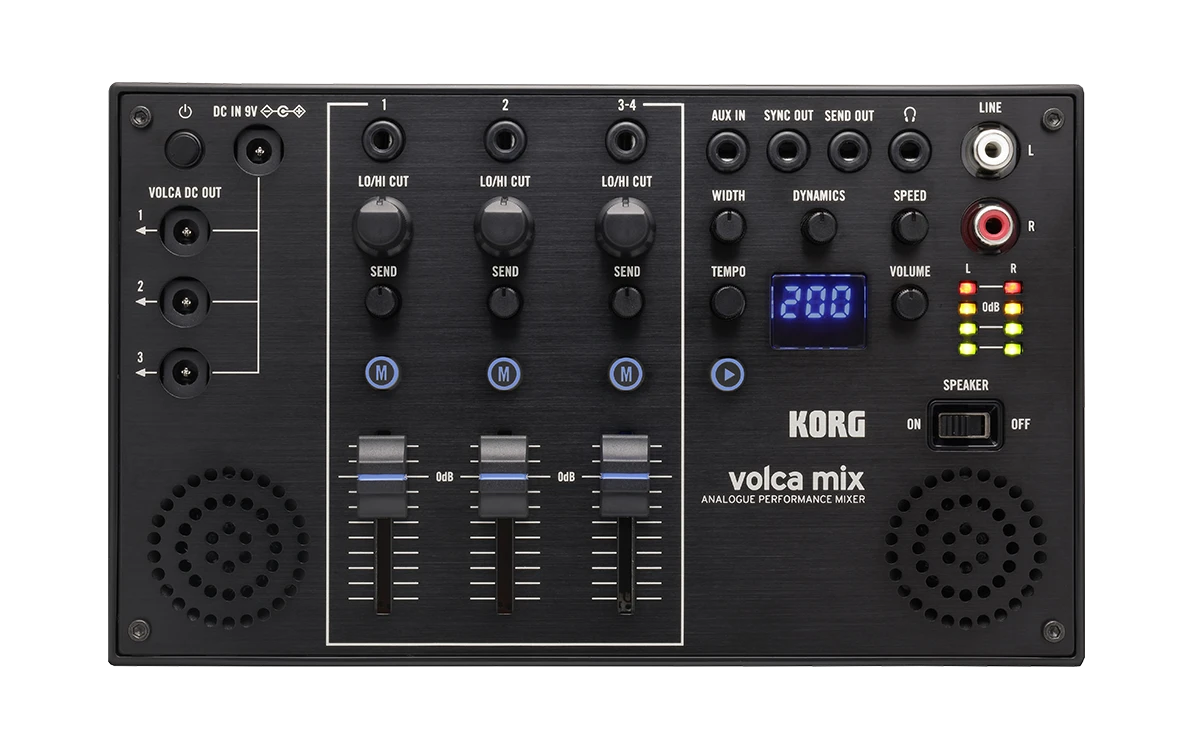

volca mix is the long-awaited mixer for the volca series. The volca mix is a four-channel analogue performance mixer that lets you construct a live setup combining multiple volca units.

Volume faders are easy to control, plus crisp-sounding LO/HI CUT filters, and a master chain that radically transforms the sound. In addition to the sync function found on all volcas, there are also DC output connectors that can supply power for up to three volca units. Numerous functions to facilitate your on-stage volca performances have been packed into a high-quality aluminum-paneled body, reminiscent of a high-end DJ mixer.

The volca mix will unlock the maximum potential of the volca series.

Specifications

Mixer:

• Mixer Type: Four channel analogue mixer
• Number of Channels: Two monaural, one stereo
  • *1: Monaural output volca: volca keys, volca bass, volca beats, volca kick
  • *2: Stereo output volca: volca sample, volca fm
• Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)
• Bus: Four channels analogue mix bus, monaural mix send bus, stereo AUX In/Return bus
• Master: Volume

Master Effects:

• Analog Stereo Width Expander (Width)
• Analog Dynamic Range Compressor (Dynamics, Speed)

Sync Controls:

• Play, Tempo

Input/Output:

• Mixer Input: Mixer In x 3 (1/8″ [3.5 mm] stereo mini jack, 0dBu)
• AUX: AUX In (1/8″ [3.5 mm] stereo mini jack, 0dBu)
• Send: Send Out (1/8″ [3.5 mm] stereo mini jack, 0dBu)
• Sync: Sync Out (1/8″ [3.5 mm] stereo mini jack, Output Level: 5 V)
• Audio Output: LINE OUT (L/R, RCA pin jack, Max 11.1 dBu)
  • Headphone (1/8″ [3.5 mm] stereo mini jack)
  • Speaker: Built-in stereo speakers, On/Off

Power:

• Power: AC adapter (DC 9 V)
• Current Consumption: 300 mA
• Output Power: VOLCA DC OUT x 3 (Connect with including DC-DC cable, up to 800 mA in total, 9 V)

Others:

• Dimensions (W x D x H): 193 mm x 115 mm x 45 mm / 7.60″ x 4.53″ x 1.77″ (including knobs)
• Weight: 350g / 12.35 oz.
• Included Items: AC adapter, DC-DC cable x 3, Audio cable x 3

Accessories (sold separately):

• SEQUENZ CB-4VOLCA semi hard case (Can store up to three volcas and volca mix)
• SQ-CABLE-6 sync cables.
