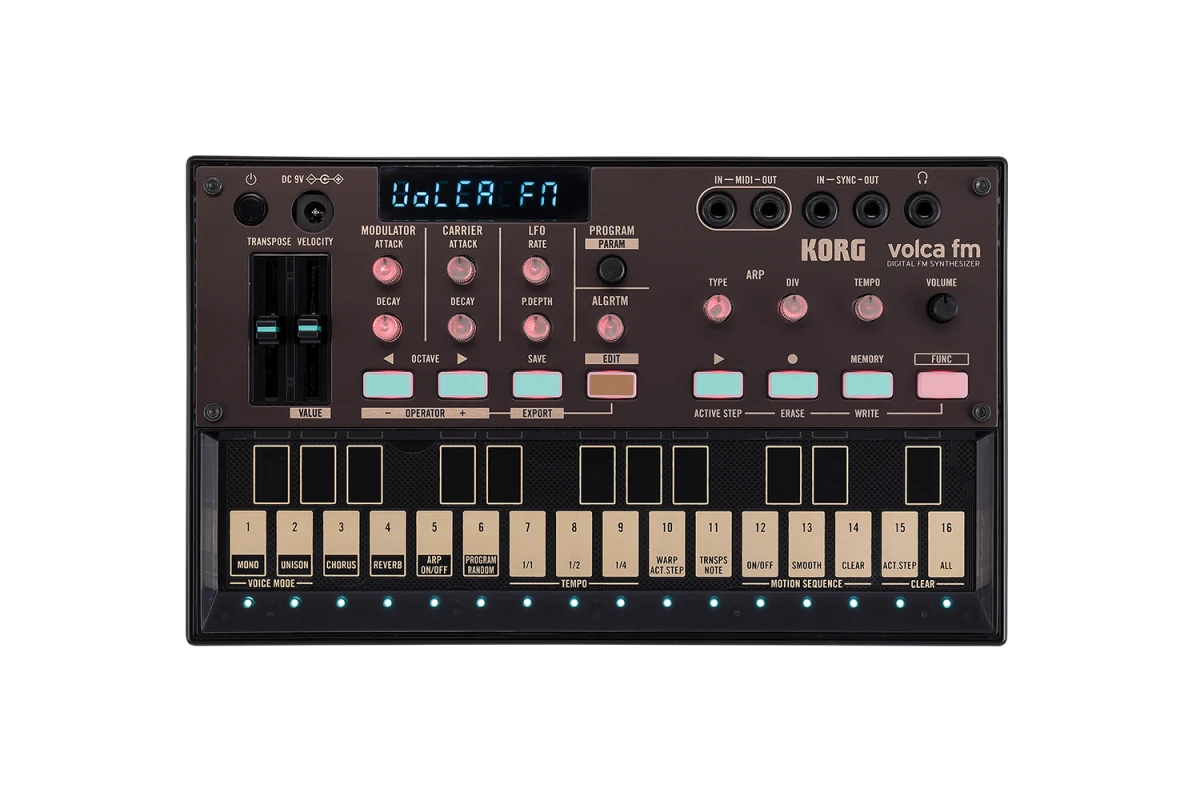

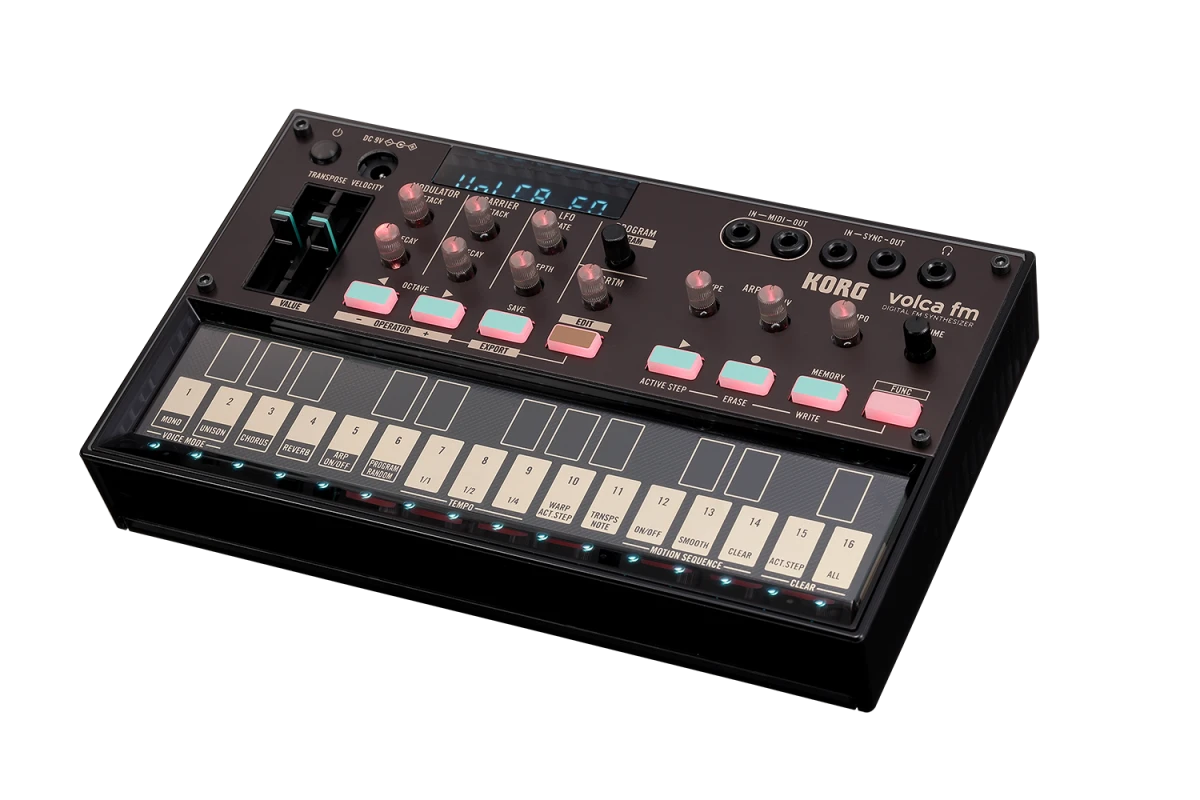

Korg VOLCAFM2 Digital Fm Synthesizer With 16 Step-Seq,6 Voices,Built In Speaker,6 Operators,32 Algorithms – Korg

The ultimate compact FM synth is finally here.
The next-gen volca fm is a powerful 6-voice, 6-Operator FM synthesizer with all 32 classic algorithms, a 16-step loop sequencer, effects and a powerful arpeggiator that perfectly reproduces the sound of the classic Yamaha DX7 and is completely compatible with SYS-EX patches for the DX7 as well.

Battery (included) or adapter (optional) operated with built-in speakers and a compact and light chassis, the volca fm is the ultimate portable FM solution for all musicians.

This new generation – with double the voices of its predecessor, additional effects, expanded MIDI connectivity, and intuitive interface – is poised to bring unprecedented possibilities to your setup, and revolutionize your studio with new musical ideas.

Specifications

Keyboard:

• Multi-touch 27 key keypad

Synthesizer:

• Type: FM synthesis
• Maximum Polyphony: 6 voices
• Structure: 6 operators, 32 algorithms
• Number of Programs: 64
• Edit Parameters: Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm, Randomize
• Available to edit full parameters for each operator in Edit Mode

Controls:

• Transpose, Velocity, Octave, Arp (Type, Div), Chorus Level, Reverb Level

Arpeggiator:

• Types: 9 (each 3 patterns of “Rise”, “Fall”, and “Random”)

Voice Modes:

• Poly, Mono, Unison

Effect:

• Chorus, Reverb

Sequencer:

• Number of Parts: 1
• Number of Steps: 16
• Number of Recording Patterns: 16
• Controls: Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome

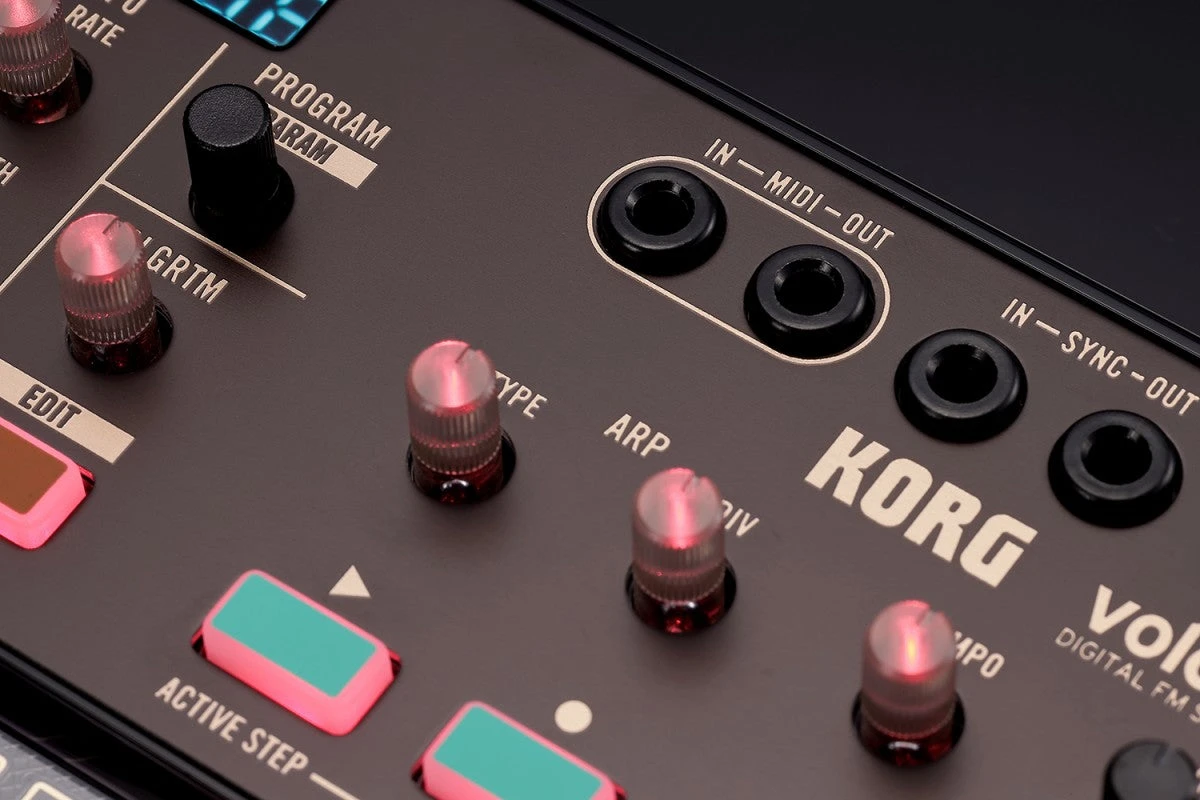

Connectors:

• Audio Output: Headphones (3.5mm stereo mini jack)
• Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Output level: 5V)
• MIDI: IN, OUT (Note: 3.5mm stereo mini jack connector; type-A MIDI adaptor needed)
• Available to convert and load SYS-EX/SYX files from Yamaha DX7

Power:

• Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6, or AC adapter (DC 9V) (optional)
• Battery Life: Approximately 10 hours (using alkaline batteries)

Dimensions (W x D x H):

• 193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”

Weight:

• 360 g / 12.70 oz. (Excluding batteries)

Others:

• Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List
• Accessories: AC adapter (DC 9V) KA-350
