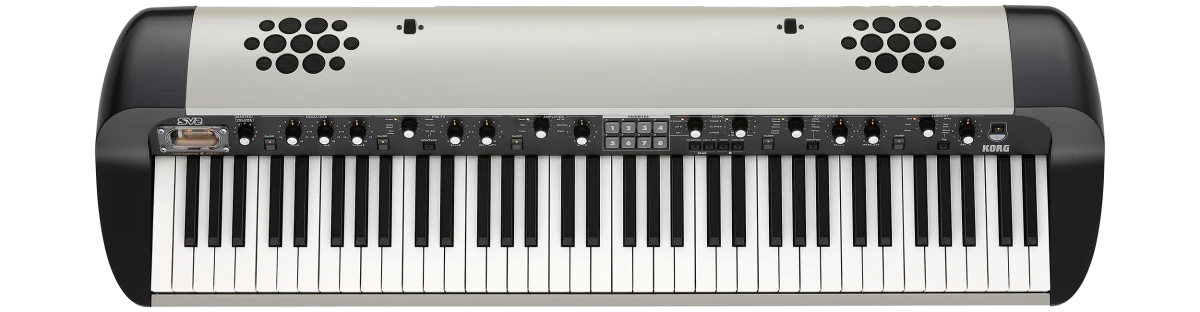

Korg SV273S 73-Key RH3 Stage Vintage Keyboard W/Built-in Speakers – Black – Korg

Keyboard:

• 73 keys (E1 to E7)
• Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

Touch Selection:

• Eight curves

Tuning:

• Master Transpose, Master Tune, Tuning curves

Sounds: Sound Generation:

• EDS-X (Enhanced Definition Synthesis – eXpanded)
• Maximum Polyphony: 128 notes

Multi Sound:

• Layer, Split

Factory Sounds (72):

• EP1 (Vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
• EP2 (Various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
• Piano 1 (Acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano
• Piano 2 (Various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass
• Clavier: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ
• Other: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/Synth Lead

Favorite Sounds:

• 64 (8 banks x 8 variations) for saving customized settings

Effects: Structure:

• 6 effects (5 effects + 1 total effect)

Equalizer:

• Bass, Mid, Treble

Pre FX:

• Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)

Amplifier Models:

• Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology – 12AX7 (ECC83) valve

Modulation:

• Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)

Ambient:

• Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)

Total FX (only editable with SV-2 Editor):

• Stereo Mastering Limiter, Stereo Limiter

Panel Controls:

• Sound Select: TYPE knob, VARIATION knob, FAVORITES 1–8 switches
• Favorite Sound select: 1–8 switches, SOUND TYPE knob
• Effect Control: Equalizer On/Off switch, BASS knob, MID knob, TREBLE knob, Pre FX On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when TYPE = Vox Wah), Amplifier On/Off switch, TYPE knob, DRIVE knob, Modulation On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when TYPE = Rotary.), Ambient On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)
• Volume: Master Volume
• Switches: Transpose, Local Off, Touch, Function
• Demo Songs: 72 songs (one song for each preset sound)

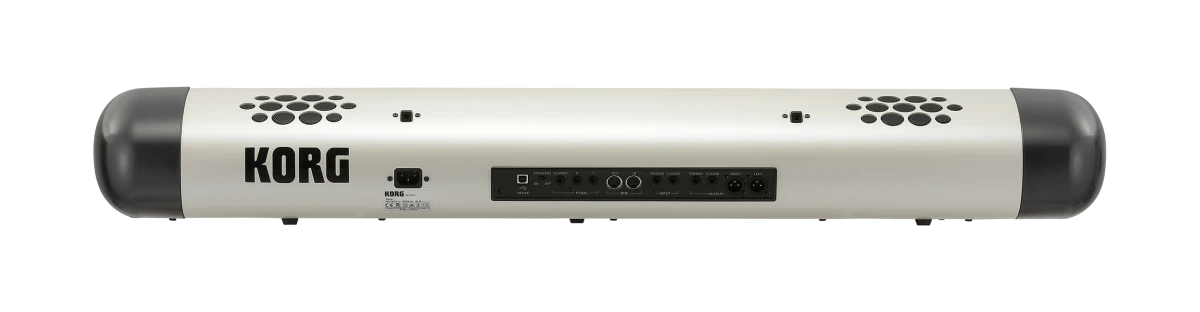

Input/Output Connections: Audio Output:

• L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4″] unbalanced)

Headphone:

• Headphone jack（6.3 mm [1/4”] stereo jack)

Audio Input:

• L/MONO jack, R/MONO jack (6.3 mm [1/4″] unbalanced)

MIDI:

• IN, OUT

USB:

• USB 2.0 Type B connector (doubles the MIDI Interface)

Damper Pedal:

• KORG DS-2H (included), DS-1H (sold separately)

Pedal 1:

• PS-1 foot switch, PS-3 foot switch (sold separately)

Pedal 2:

• Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, PS-3 foot switch (sold separately)

Amplification (SV-2S): Speakers:

• 2 x 2.5″ with 2 x 3″ passive radiator

Amplification Power:

• 2 x 15 W

Main Specifications: Power Supply:

• Internal switching adapter, AC 100~240 V, 50/60 Hz

Power Consumption:

• SV-2S: 25 W

Dimensions (W x D x H, excluding music stand):

• SV-2／SV-2S (73-key): 1143 mm x 347 mm x 157 mm / 45.0″ x 13.66″ x 6.18″

Weight (excluding music stand): 18.3 kg / 40.34 lbs

Others: Included Items:

• Power cable, Music stand, DS-2H damper pedal, Quick Guide.

Accessories (sold separately):

• Stand (ST-SV1 piano stand)
• Carrying bag (CB-SV1 73, CB-SV1 88)
• Damper pedal (DS-1H)
• EXP/VOL pedal (XVP-20)
• Foot controller (EXP-2)
• Pedal switch (PS-3, PS-1)
