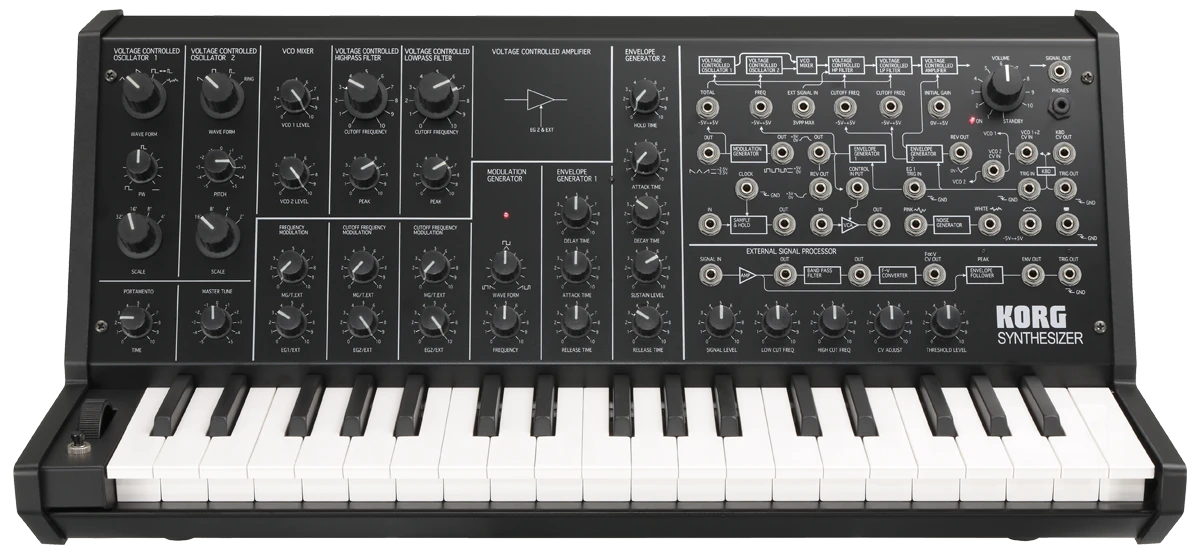

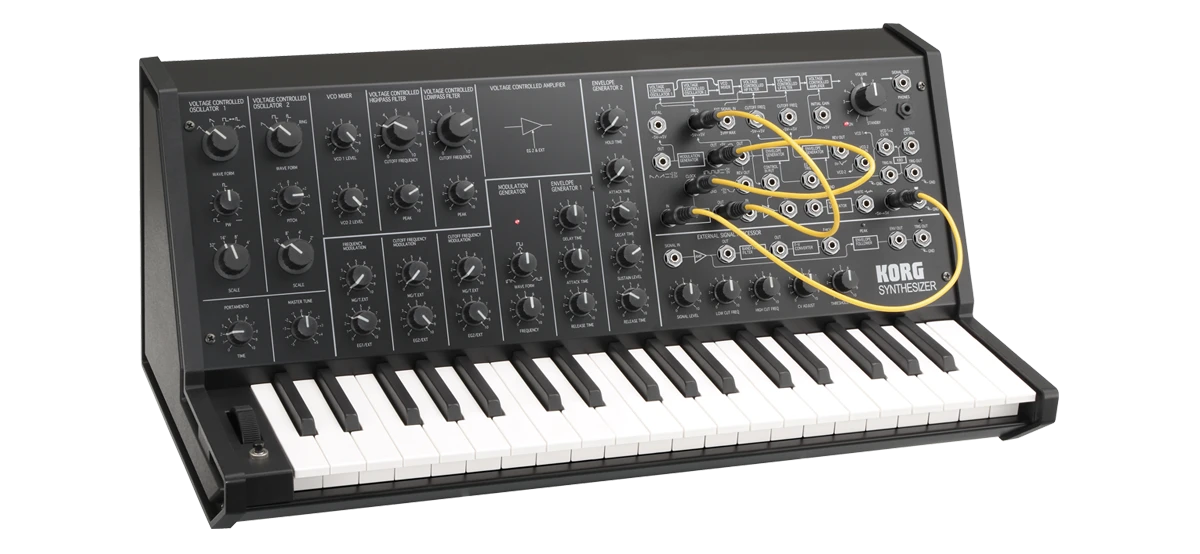

Korg MS-20-MINI 37-Keys Mini Semi-Modular Analog Synthesizer – Korg

The classic MS-20 –recreated in mini size!
An analog synthesizer that reproduces the original circuitry from 1978.

Korg’s MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day, thanks to its thick, robust sound, its powerful, iconic analog filter, and its versatile patching options.
Over 300,000 people have enjoyed the distinct MS-20 sounds from the original, from Korg’s MS-20 plug-in synth, and the iMS-20 iPad app.

Today, the sounds of the MS-20 have been reborn as the MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fitted it into a body that’s been shrunk to 86% of the original size, yet retains the distinctive look of the original that remains unfaded despite the passage of time.
The MS-20 mini will amaze you with its absolutely authentic analog synth sound.

Specifications

• Keyboard:
  • C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
• Manual controller:
  • Control wheel (center click), Momentary switch -->GND
• Input and Output:
  • Signal In: Amplifier Out, Band pass filter Out, CV Out (0 – +8.4V), ENV Out (0 – +5V), Trig Out (+5V-->GND)
  • Signal out: Signal output (mono 1/8″ mini phone jack, 2Vp-p output impedance 3.5k Ω)
  • Headphones: Headphones output (Stereo 1/8″ mini phone jack, 33 Ω 48mW)
  • USB: Type B, USB-MIDI Input/Output
  • MIDI: MIDI Input
• Power Supply: DC9V
• Dimensions: (W x D x H) 493 × 257 × 208 mm / 19.41 x 10.12 x 8.19 inches
• Weight: 4.8 kg / 10.58 lbs.
• Accessories: AC adaptor (9V/1.7A), Patch Cord x 10
• Detailed Specifications:
  • Control Section:
    • Keyboard: C – C: 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
    • Voltage Controlled Oscillator 1 (VCO 1)
    • Voltage Controlled Oscillator 2 (VCO 2)
    • VCO Master control
    • VCO Mixer
    • Voltage Controlled High Pass Filter (VCF HPF)
    • Voltage Controlled Low Pass Filter (VCF LPF)
    • Envelope Generator 1
    • Envelope Generator 2
    • Modulation Generator (LFO)
    • Manual controller
    • Power switch and Volume
    • Indicator LED (KBD trigger, Modulation Generator rate, Power ON)
  • External Signal Processor:
    • Control section
    • Input and Output
    • Indicator (LED)
  • Patch Panel:
    • Keyboard
    • VCO
    • VCF
    • VCO + VCF
    • VCA
    • EG
    • MG
    • Noise Generator
    • Sample and Hold
    • Modulation VCA
    • Manual controller
    • Signal out
    • Headphones
    • USB
    • MIDI
  • Others:
    • Power Consumption: 9W
    • Power Supply: DC9V
    • Dimensions: (W x D x H) 493 × 257 × 208 mm / 19.41 x 10.12 x 8.19 inches
    • Weight: 4.8 kg / 10.58 lbs.
    • Accessories: AC adaptor (9V/1.7A), Patch Cord x 10
