Korg MINILOGUEBA Ltd Analog Synth Bass Keyboard – Korg

Get juice and squelch. Throbbing Drive. Greasy fatness. Liquid ooze. And all in genuine analog warmth and studio quality clarity.

KORG’s minilogue – with its completely unique analog signal path, compact format, easy-to-play slim keys, and extensive sound capabilities – is one of the most popular, best selling synthesizers in music history.

Now welcome the incredible limited edition minilogue bass; designed and voiced to add inspirational bass into your music.

minilogue bass features programs created by a specially selected group of bass playing and programming pros from around the world so you get a big variety of rich, analog synth bass sounds that will inspire you and help your music stand out.

Now’s the time to step outside the box and get down with the limited edition minilogue bass.

Specifications

• Keyboard

  • 37-keys (Slim-key, velocity sensitive)

• Sound Generation

  • Analog synthesis

• Maximum Polyphony

  • 4 voices

• Program

  • 200 programs (100 Presets / 100 Users)
  • Each program includes voice mode and sequence data settings
  • Up to eight favorite programs can be registered

• Voice Modes

  • 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
  • VOICE MODE DEPTH can vary different parameters in each mode

• Main Synthesis Parameter

  • VCO1:
    • Octave, Wave (Saw, Triangle, Square), Pitch, Shape
  • VCO2:
    • Octave, Wave (Saw, Triangle, Square), Pitch, Shape
  • VCO2 MODULATION:
    • Cross Mod Depth, Pitch EG Int, Sync, Ring
  • MIXER:
    • VCO1, VCO2, Noise
  • FILTER:
    • Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
  • AMP EG:
    • Attack, Decay, Sustain, Release
  • EG:
    • Attack, Decay, Sustain, Release
  • LFO:
    • Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
  • DELAY:
    • Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)

• Sequencer

  • 16-step polyphonic sequencer
  • Motion sequence can be used on up to four parameters

• Controls

  • 41 dedicated panel controls deliver immediate parameter access
  • A slider can control different parameters for each program

• Display

  • Real-time OLED oscilloscope provides visual feedback of parameter changes

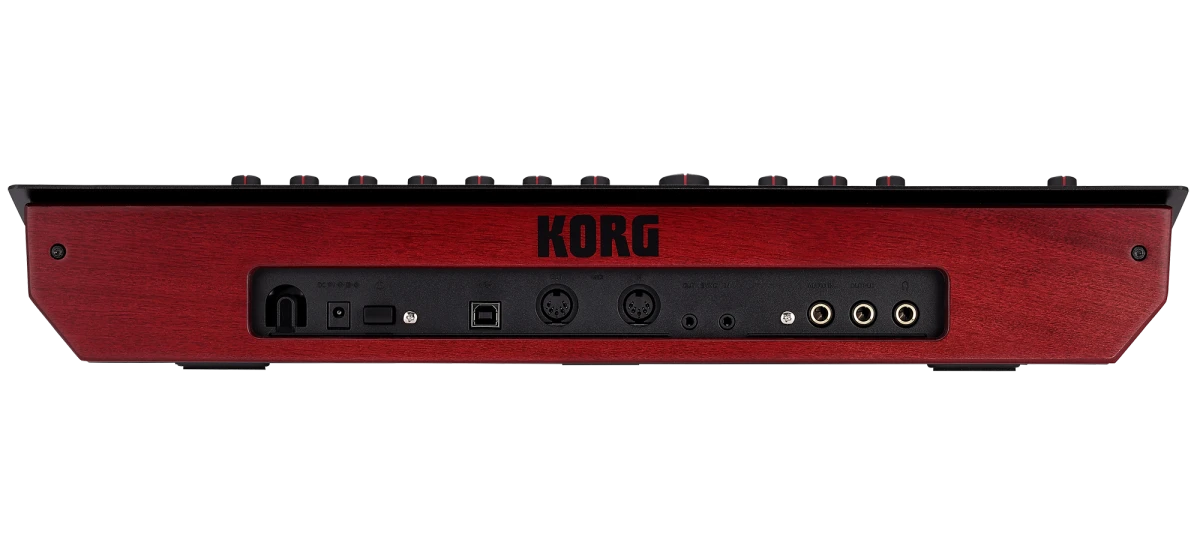

• Connectors

  • Headphones (6.3mm stereo phone jack)
  • Output (6.3mm monaural phone jack)
  • Audio In (6.3mm monaural phone jack)
  • Sync In (3.5mm monaural mini jack)
  • Sync Out (3.5mm monaural mini jack)
  • MIDI In
  • MIDI Out
  • USB Type B

• Power Supply

  • AC adapter (DC9V)

• Power Consumption

  • 8 W

• Dimensions (W x D x H)

  • 500 x 300 x 85 mm / 19.69″ x 11.81″ x 3.35″

• Weight

  • 2.8 kg / 6.17 lbs.

• Included Items

  • AC adapter
