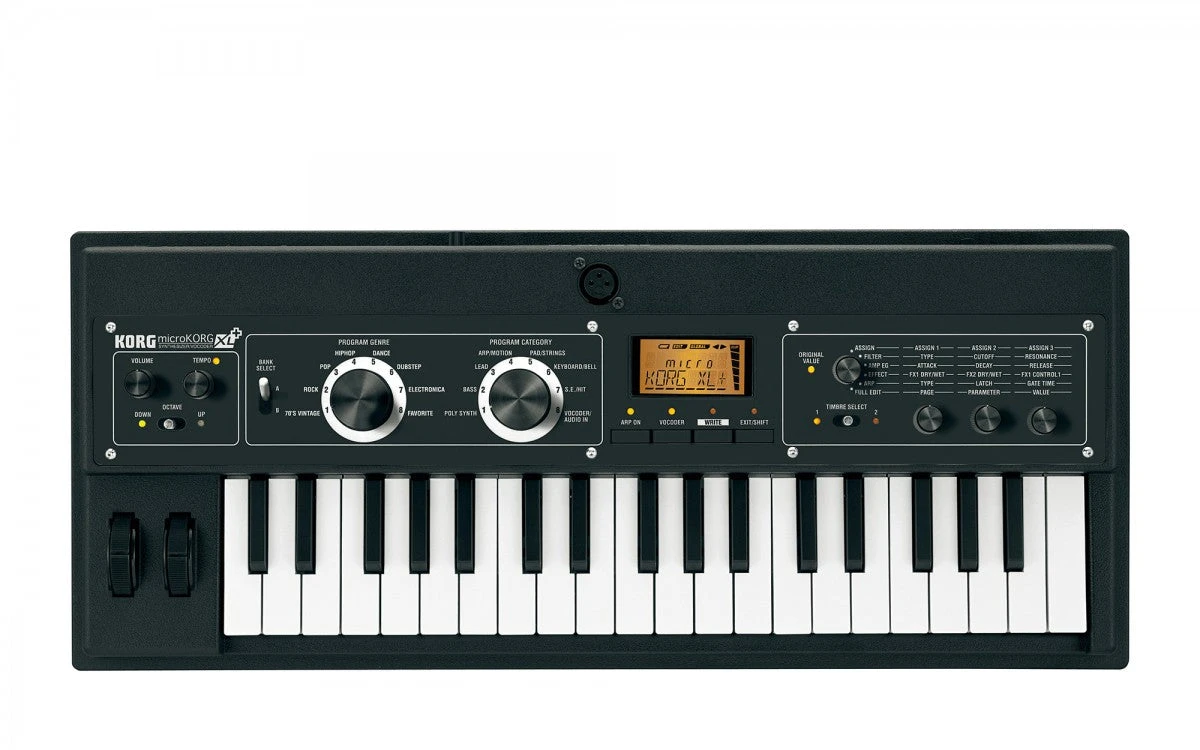

Korg MICROKORG-XL+ 37 High Quality Mini Key Analog Synthesizer W/ Vocoder And KP3 FX – Korg

Vintage … and much more!

With its unmistakably unique exterior and its inimitable sound, the microKORG set the standard for analog modeling synthesizers. The year 2008 saw the introduction of the microKORG XL, which inherited the microKORG’s fat and powerful sounds, while adding keyboard staples such as electric piano and CX-3 organ. And now, in the next evolutionary step, the microKORG XL+ delivers a fresh update to the sounds and look of the microKORG XL, making it an ideal compact keyboard.

Specifications

Tone Generator System:

• System: MMT (Multiple Modeling Technology)
• Program: Multi Timbral, Maximum 2 (when using Layer, Split, or Multi)
• Voice Polyphony: Maximum 8 voices (4 voices when using Vocoder)

Synth:

• Oscillators: 2 oscillators + noise generator
  • Oscillator 1:
    • Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In)
    • Modulation: Waveform, Cross, Unison, VPM
  • Oscillator 2:
    • Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine)
    • Modulation: Ring, Sync, Ring+Sync
• Waveshape: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost

Filters:

• Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~ Thru
• Filter 2: LPF, HPF, BPF (switchable)

Vocoder:

• 16 channel vocoder, adjustable level and pan for each channel
• Formant Shift function
• Formant Hold function

Keyboard:

• 37 notes (Natural Touch mini-keyboard, velocity-sensitive)

Controllers:

• Pitch bend wheel
• Modulation Wheel

Effects:

• Timbre 2-band EQ
• Master effect: 2 units, 17 effect algorithms
• Arpeggiator: Six types – UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function

Programs:

• 128 programs (A/B banks x 8 genres x 8 categories)

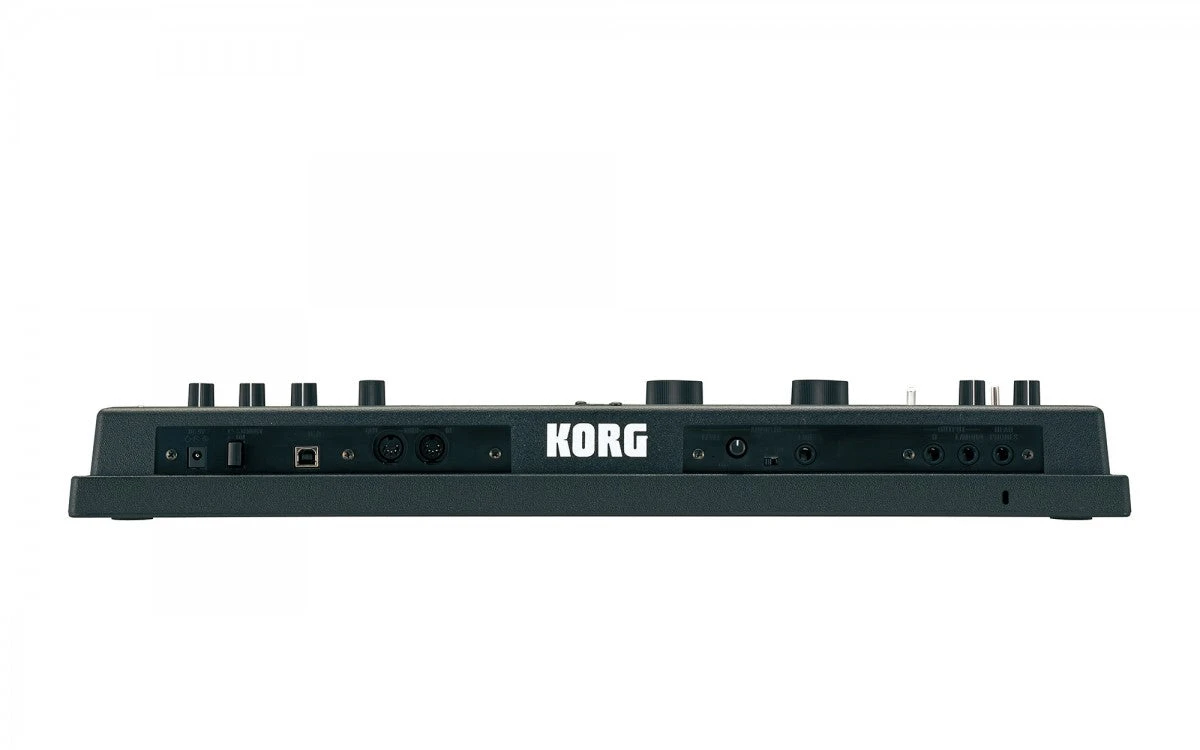

Inputs:

• [AUDIO INPUT 1] (1/4” phone jack, unbalanced, with MIC/LINE switch) – Rear Panel
• [AUDIO INPUT 1 (MIC)] (XLR jack / balanced) – Front Panel

Outputs:

• [L/MONO, R] (1/4” Standard phone jacks / unbalanced)
• [Phone] (1/4” Stereo Standard phone jacks)

MIDI:

• IN, OUT

USB:

• Type B

Display:

• Custom LCD

Power Supply:

• DC 9V (AC adapter), or six AA alkaline batteries (sold separately)

Battery Life:

• Approximately four hours (with alkaline batteries)

Dimensions (W x D x H):

• 556 x 231 x 73mm / 21.89″ x 9.09″ x 2.87″

Weight:

• 2.0 kg / 4.41 lbs. (without batteries and included microphone)

Accessories:

• AC adapter

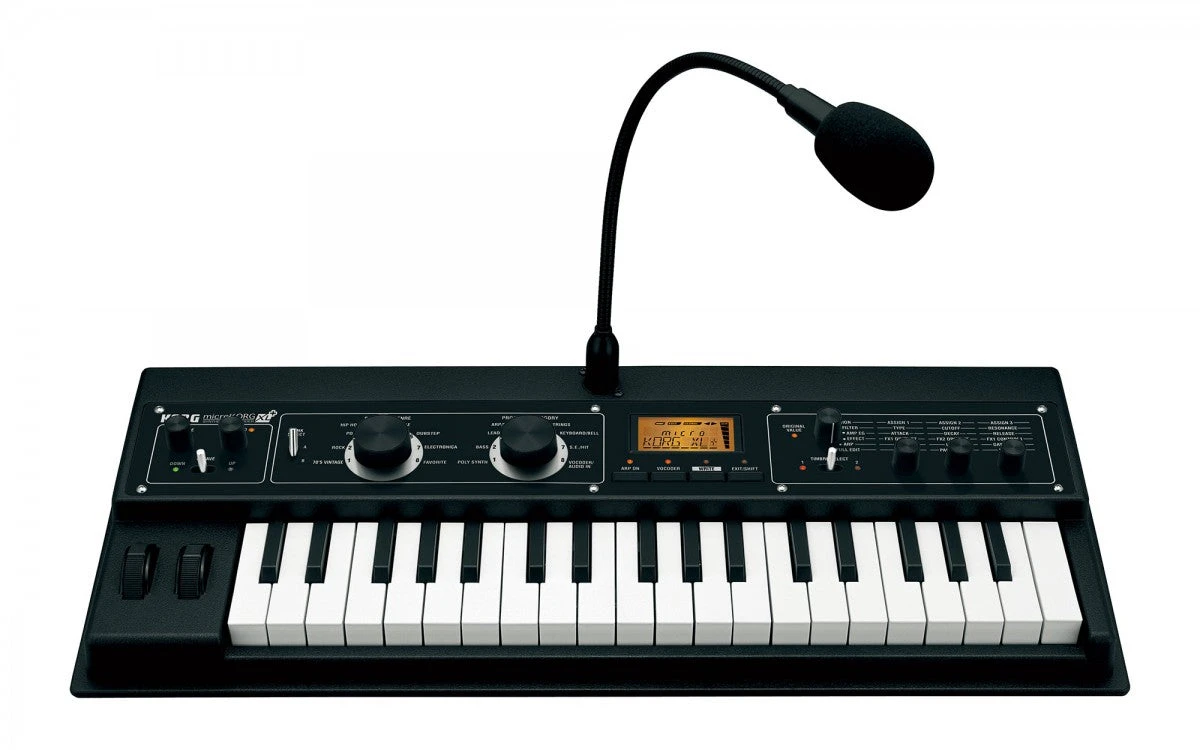

• Gooseneck Microphone

Optional Accessories:

• SC-micro MSG Mobile Monitor Amplifier (provides a DC9V output jack that can power one of several Korg instruments like microKORG XL+)
