Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He’s known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder’s tone ablaze.

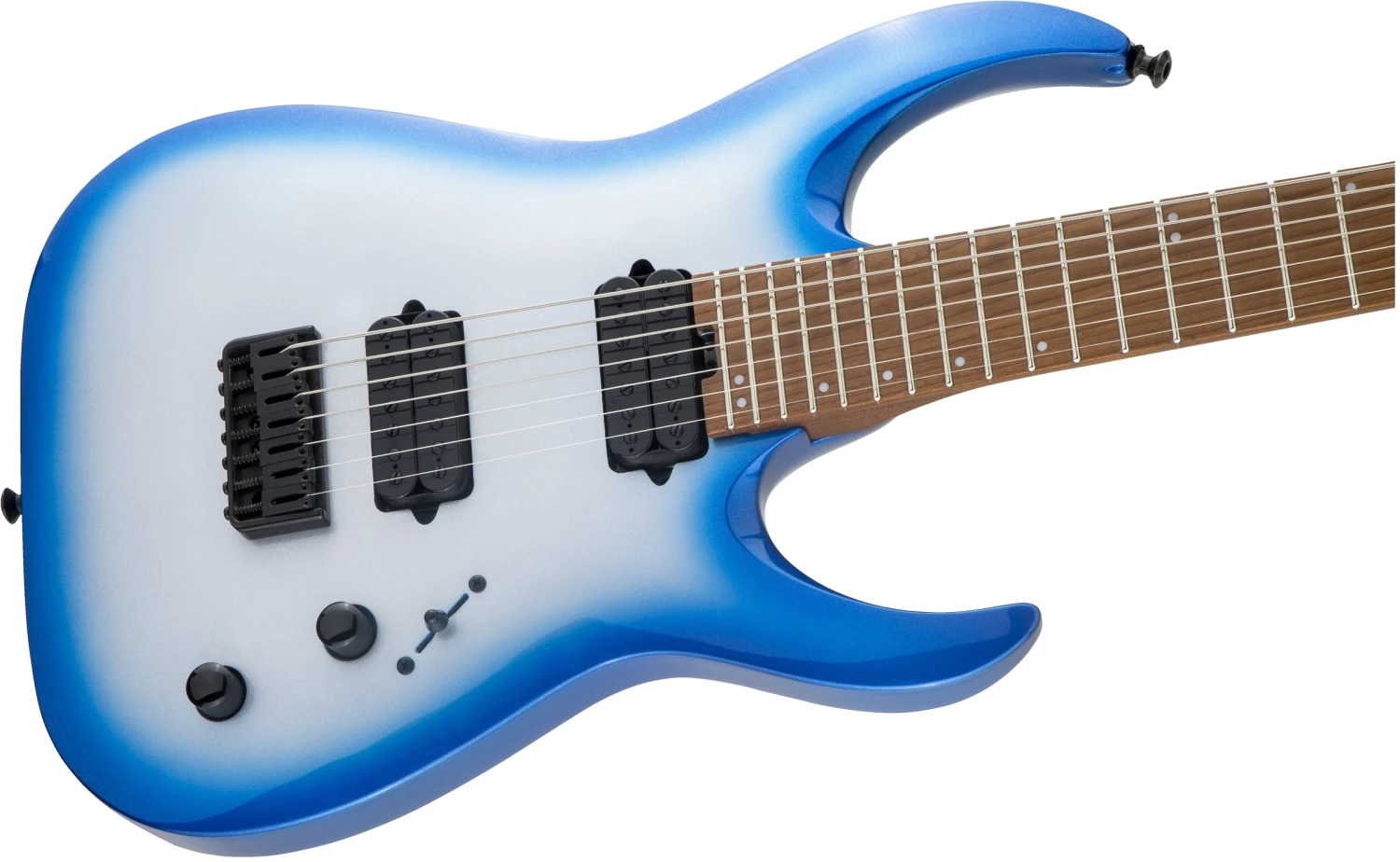

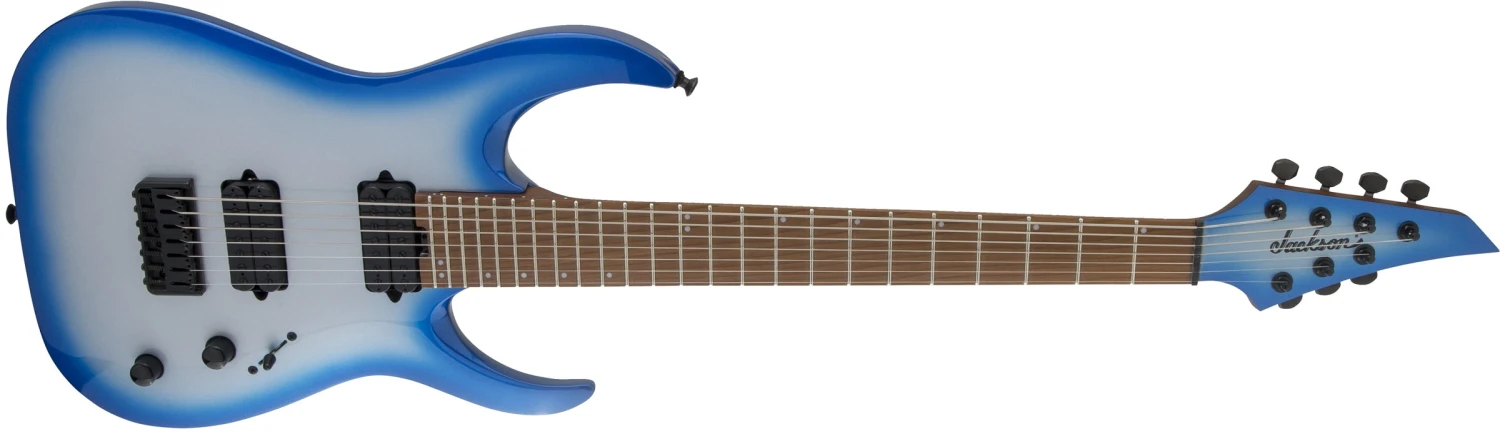

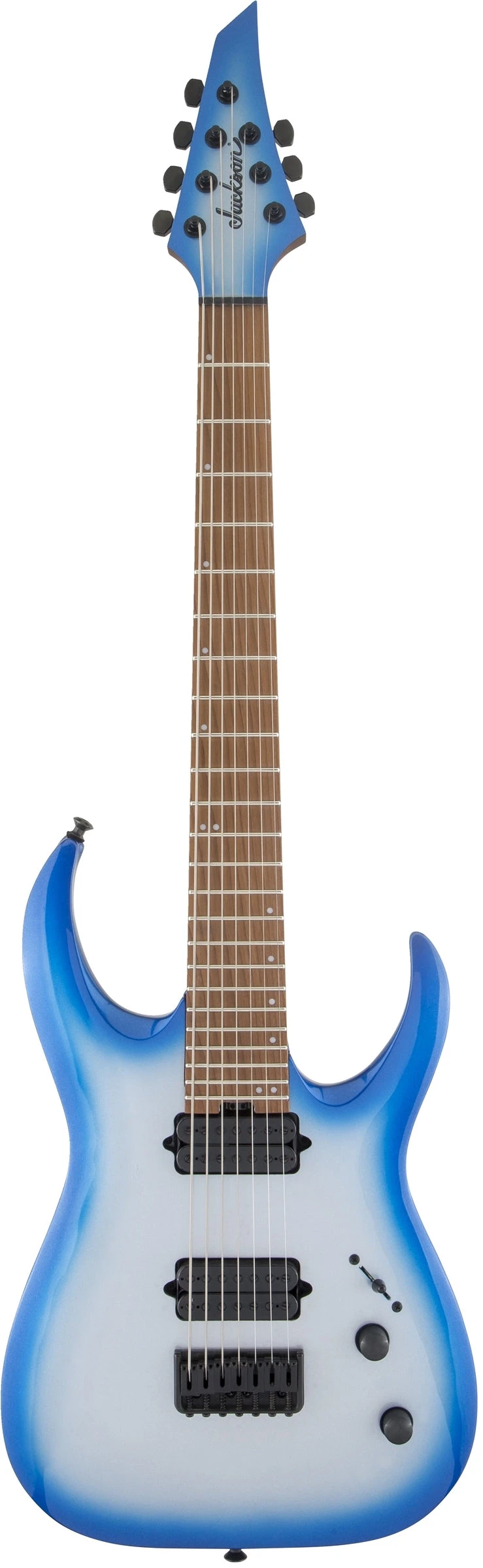

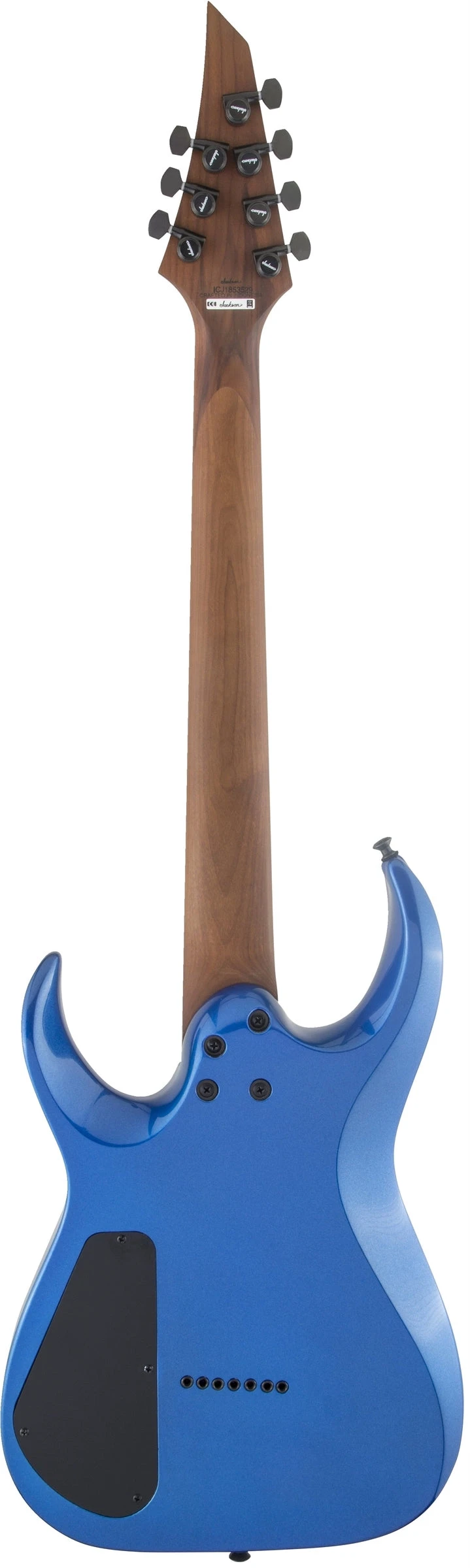

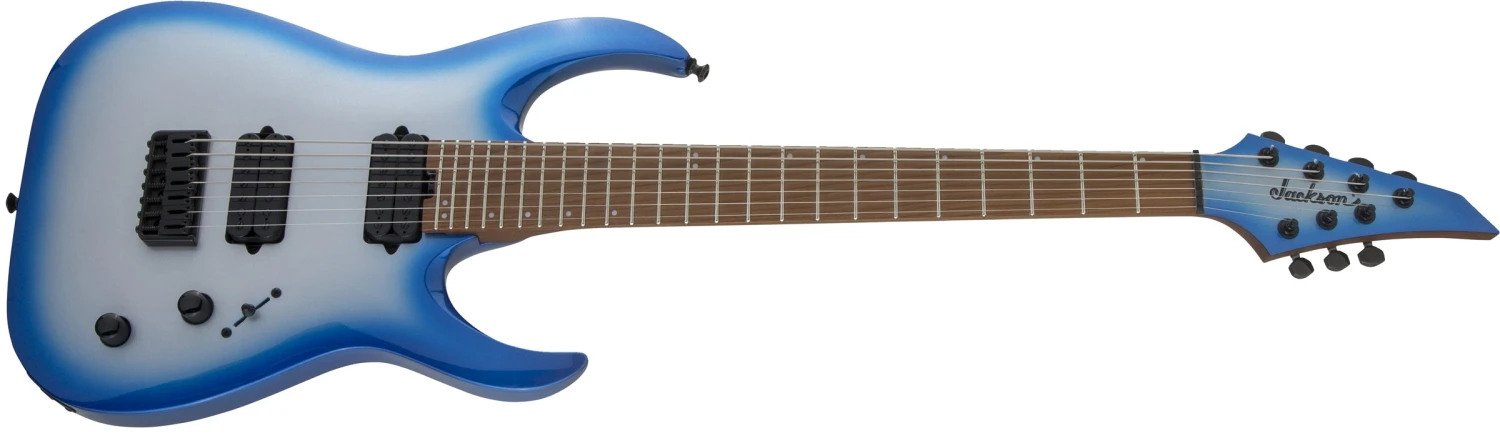

The Pro Series Signature Misha Mansoor Juggernaut HT7 offers a 26.5″-scale length, basswood body, bolt-on caramelized maple neck with graphite reinforcement for rock-solid stability, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20″ flat radius caramelized maple fingerboard featuring rolled edges, 24 jumbo frets and offset dot inlays. Luminous side-dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.

Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding Jackson uncovered direct mount MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull select feature.

Available in Neon Orange or Blue Sky Burst with a matching Jackson 4×3 AT-1 headstock, this sig axe also features a Jackson HT7 string-through-body hardtail bridge, die-cast locking tuners and black hardware.

Features

• 26.5″ scale length
• Basswood body
• Bolt-on caramelized maple neck with graphite reinforcement, scarf joint and oiled back finish
• 20″ radius caramelized maple fingerboard with rolled edges, 24 jumbo frets and offset white dot inlays
• Heel-mount truss rod adjustment wheel
• Luminous side dots

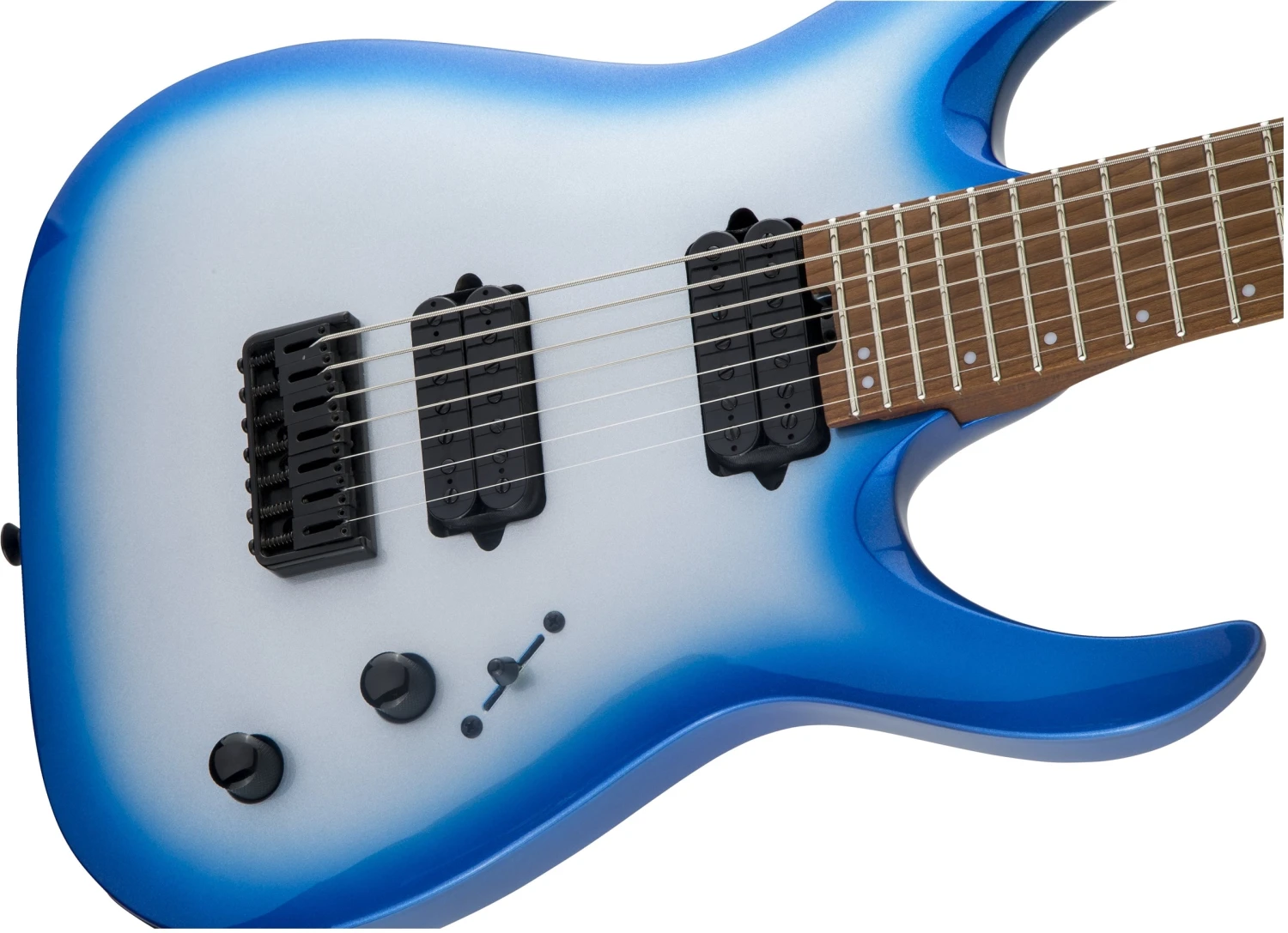

• Uncovered direct mount Jackson MM1 pickups
• Five-way blade switch, single volume control and single tone control with push/pull select feature
• Jackson HT7 string-through-body hardtail bridge
• Horizon Devices Strings – Progressive Tension Standard 7
• Available in Neon Orange or Blue Sky Burst with a matching Jackson 4×3 AT-1 headstock and black hardware

Specifications

Body:

• Body Material: Basswood
• Body Finish: Gloss
• Body Shape: Juggernaut

Neck:

• Number of Strings: 7
• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint
• Neck Binding: None – Rolled Fingerboard Edges
• Neck Finish: Oiled
• Scale Length: 26.5″ (673 mm)
• Fingerboard Material: Caramelized Maple
• Fingerboard Radius: 20″ (508 mm)
• Number of Frets: 24
• Fret Size: Jumbo
• Nut Material: Black Plastic
• Nut Width: 1.75″ (44.45 mm)
• Position Inlays: Offset White Dot
• Truss Rod: Dual-Action with Wheel
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

Electronics:

• Bridge Pickup: Jackson® Uncovered MM1
• Neck Pickup: Jackson® Uncovered MM1
• Controls: Volume, Tone (with Push/Pull Select Feature)
• Switching: 5-Position Blade:
  • Position 1: Full Bridge Pickup
  • Position 2: Two Inside Single Coils
  • Position 3: Both Full Humbucking Pickups
  • Position 4: Outer Neck Single Coil
  • Position 5: Full Neck Pickup
• Configuration: HH (Dual Humbucker)

Hardware:

• Bridge: Jackson® HT7 String-Through-Body Hardtail
• Hardware Finish: Black

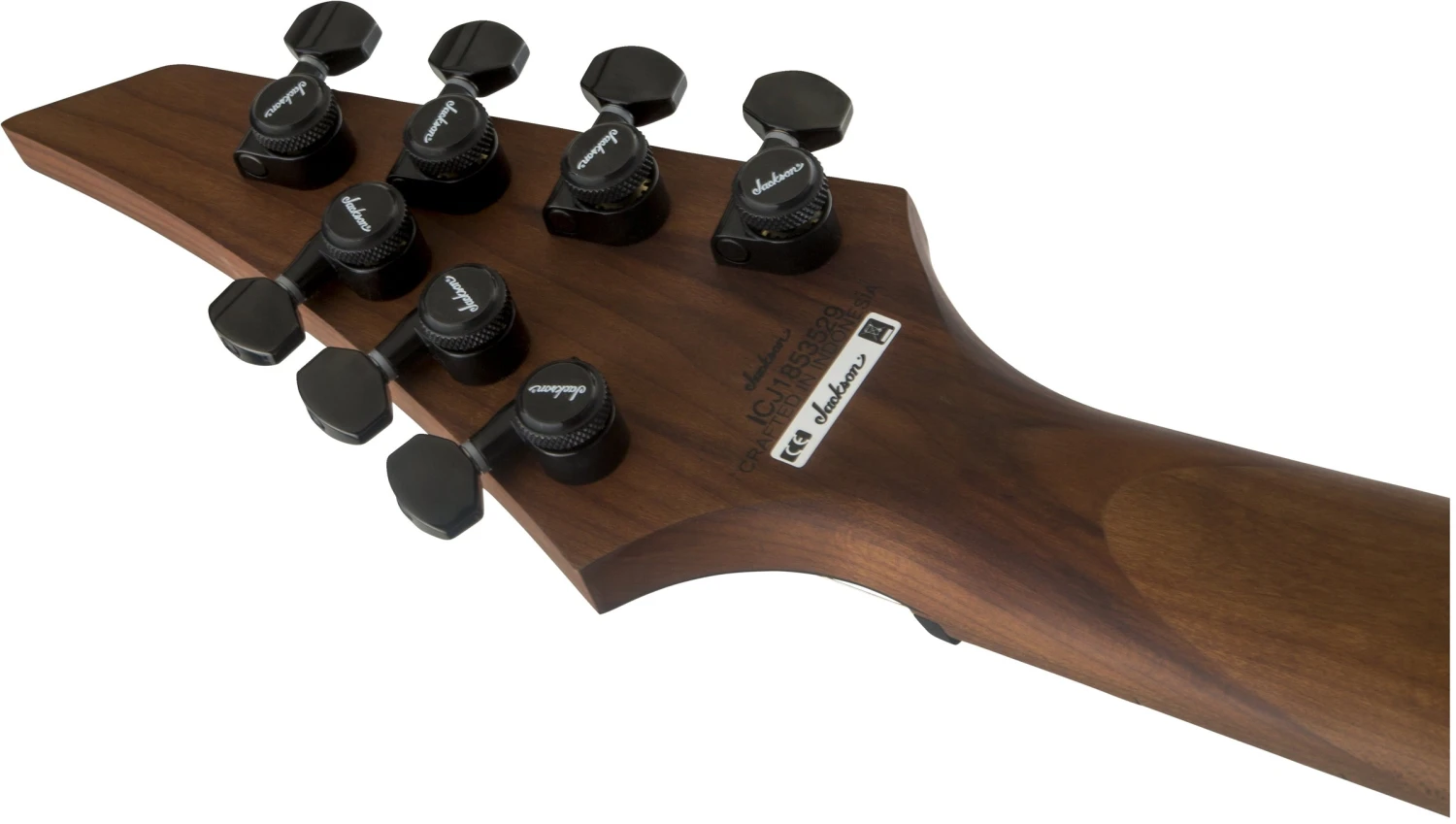

• Tuning Machines: Jackson® Sealed Die-Cast Locking
• Control Knobs: Dome-Style
• Switch Tip: Black
• Neck Plate: 4-Bolt (recessed screws)

Miscellaneous:

• Strings: Horizon Devices Strings – Progressive Tension Standard 7

Accessories:

• Case/Gig Bag: Optional Jackson® Soloist™/Dinky® SKB® Hardshell (p/n 299-6100-506); Optional Soloist™/Dinky® Gig Bag (p/n 299-1512-106)
