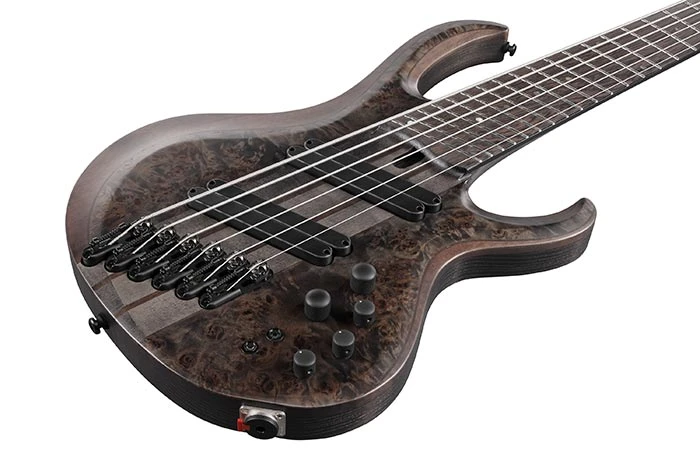

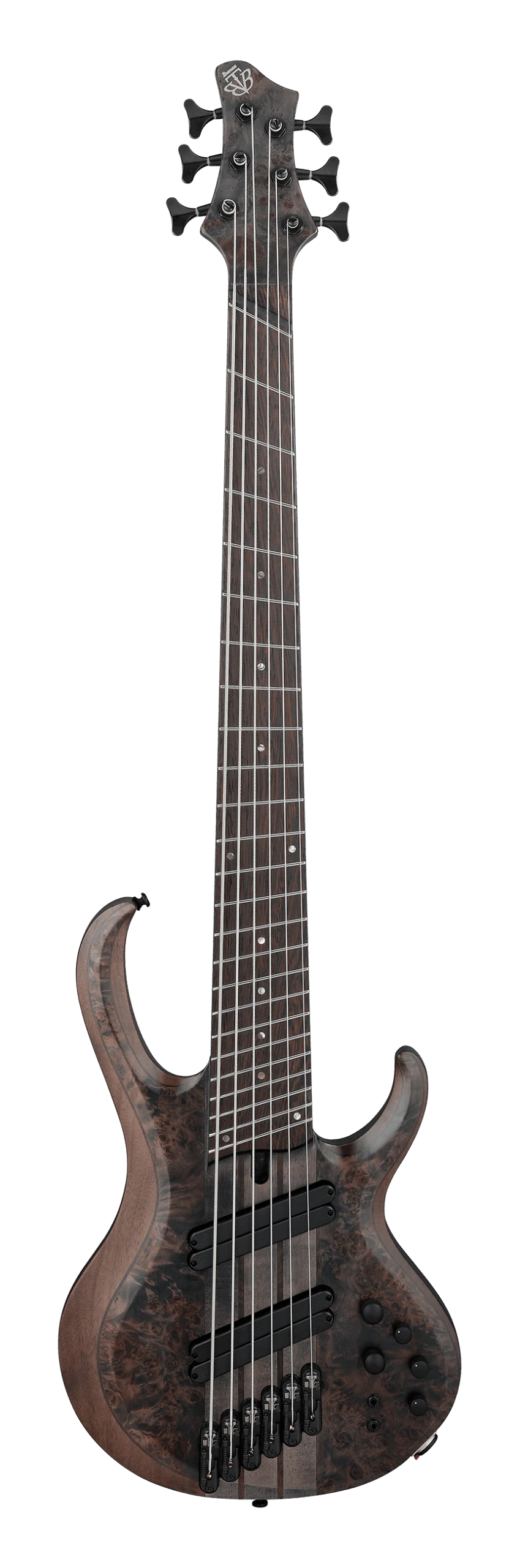

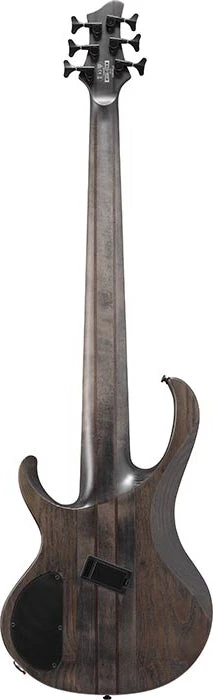

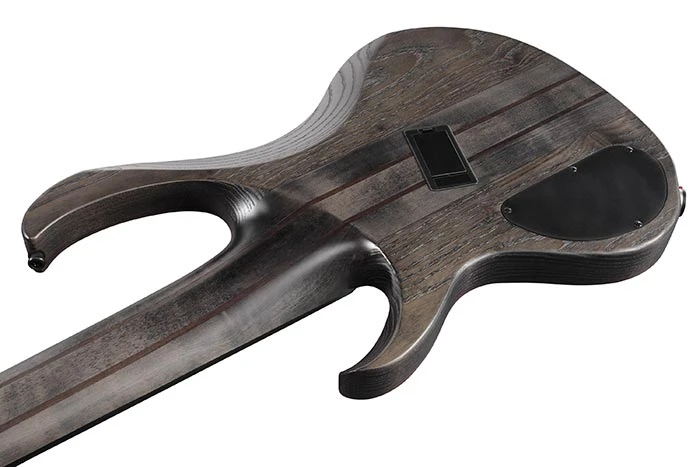

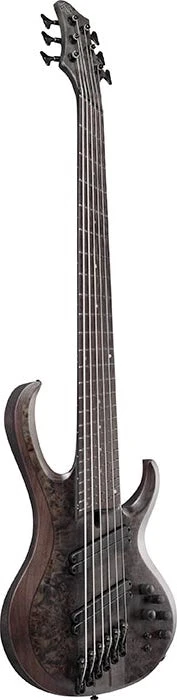

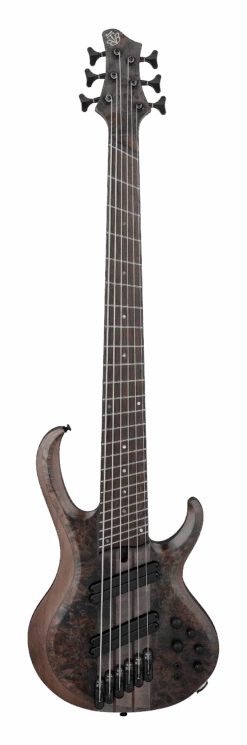

Ibanez BTB Bass Workshop 6str Electric Bass W/Case Multi Scale – Transparent Gray Flat – Ibanez

Features

• Poplar Burl top / Okoume / Ash wing body

  • A stunning Poplar Burl top with an Okoume/Ash wing body provides bright and solid tones with rich sustain.

• Medium Stainless Steel frets

  • The Stainless Steel frets are durable and long-lasting.

• T1 pickups

  • The T1 pickup is a humbucker featuring two separate, individually mounted coils that provide:
    • Tight bass response
    • Punchy mid-range
    • Clear high-end
  • Offers flexible voicing suitable for various genres.
  • The height of each coil can be set individually for highly nuanced tone adjustments.
  • Rounded edges for enhanced ergonomic comfort when used as a thumb rest.
  • Individually mounted coils allow for slight offset positioning, making the pickup surface parallel with the strings, enhancing comfort and playability.

• Neck-through construction

  • Contributes to massive sustain.
  • Provides smooth access to high fretboard positions.

• 5pc Maple/Walnut neck with Graphite reinforcement rods

  • Provides tonal clarity and superior attack.
  • Graphite reinforcement rods offer massive sustain and excellent stability.

Specifications

• Neck Type: BTB6 for Multi Scale, 5pc Maple/Walnut with Graphite reinforcement rods, Neck-through
  – Top/Back/Body: Poplar Burl top, Okoume/Ash wing body
  – Fretboard: Bound Panga Panga fretboard, Abalone dot inlay
  – Frets: Medium Stainless Steel frets
  – Number of Frets: 24 (+ zero fret)
  – Bridge: MR5S bridge
  – String Space: 17mm
  – Neck Pickup: T1 neck pickup, Passive
  – Bridge Pickup: T1 bridge pickup, Passive
  – Equaliser: Ibanez Custom Electronics 3-band EQ with EQ bypass switch (passive tone control on treble pot) and 3-way Mid frequency switch
  – Factory Tuning: 1C, 2G, 3D, 4A, 5E, 6B
  – Strings: D’Addario® NYXL Single Strings (NYXLB032, NYXLB045, NYXLB055, NYXLB080, NYXLB100MS, NYXLB130MS)
  – String Gauge: .032/.045/.055/.080/.100MS/.130MS
  – Hardware Color: Black

Neck



    Scale : 939.8mm/37″ – 876.3mm/34.5″

    a : Width 54mm at NUT

    b : Width 88mm at 24F

    c : Thickness 20mm at 1F

    d : Thickness 22mm at 12F

    Radius : 950mmR

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

Controls

With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the end of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

Frequency Response

The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.

Case

Hardshell case included
