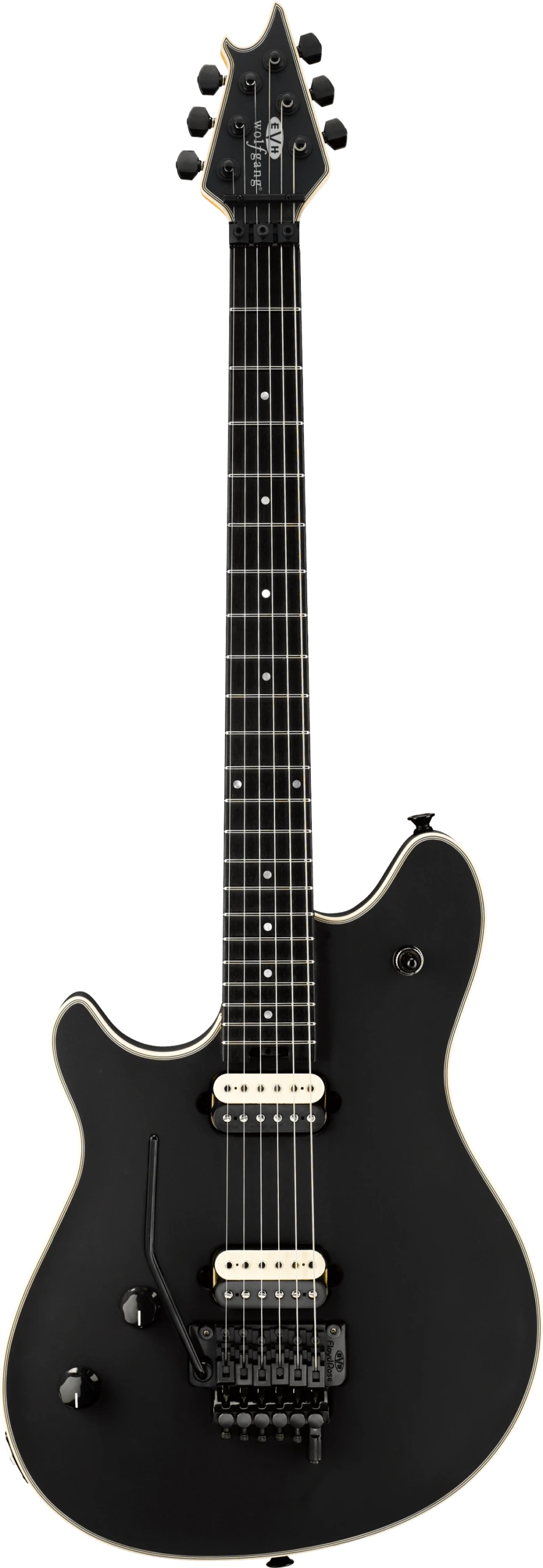

EVH Wolfgang USA Left-Hand, Ebony Fingerboard, Stealth Black – EVH

The original guitar that launched the line, the EVH Wolfgang® USA unleashes pure, unadulterated rock ‘n’ roll power.

Since its launch in 2007, the EVH brand has had one mission – to take the tools Eddie Van Halen uses to create his groundbreaking guitar work and place them in your hands.

Over 35 years of innovation and experience were injected into the creation of the original Wolfgang USA, which continues to unleash pure unadulterated rock ‘n’ roll power, titanic sound, speedy playability and stunning spotlight-ready style.

“Everything that I’ve built, destroyed, stumbled onto, learned and experienced is in this guitar,” Eddie Van Halen said. “Every aspect and component of this guitar has been examined and upgraded to the highest standards possible: stainless steel frets, double-potted custom-wound pickups, five-piece binding on the matching body and headstock, custom-made signature tuning machines and Floyd Rose® bridge, new low-friction pots, and the list keeps going. We left no stone unturned.”

The left-handed Wolfgang USA features a basswood body with either an arched big-leaf maple or 5A flame maple top, bolt-on quartersawn maple neck with graphite reinforcement, 12″ – 16″ compound radius ebony fingerboard with 22 vintage stainless steel frets and mother of pearl block inlays (dot inlays on Stealth), direct mount EVH Wolfgang USA zebra humbucking pickups, three-way toggle switching with reverse wiring, volume control with 500K EVH Bourns® low friction pot with treble bleed circuit, tone control with 250K EVH Bourns high friction pot, EVH-branded Floyd Rose® locking tremolo bridge with EVH D-Tuna® and EVH-branded Gotho® High Ratio die-cast tuners with white pearloid buttons.

Experience ultra-speedy plability, colossal sound and classic looks with the Wolfgang USA Left-Hand.

Specifications

• Model Number: 5107910868
• Series: Wolfgang® USA
• Color: Stealth Black
• Number of Strings: 6
• Orientation: Left-Hand

BODY

• Body Finish: Gloss Urethane
• Body Shape: Wolfgang®
• Body Material: Basswood

ELECTRONICS

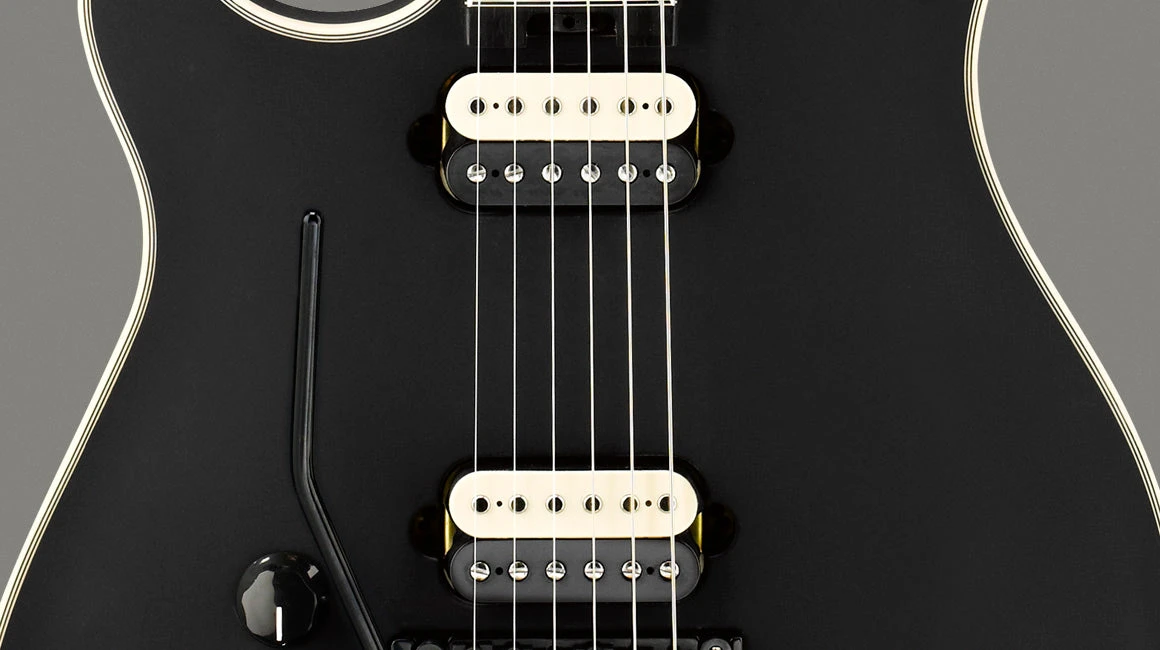

• Bridge Pickup: Direct Mount EVH Wolfgang USA Humbucking (Zebra)
• Neck Pickup: Direct Mount EVH Wolfgang USA Humbucking (Zebra)
• Pickup Color: Zebra
• Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Pickup Switching: EVH Reverse-Style 3-Position Switching: 1. Neck Pickup, 2. Neck and Bridge, 3. Bridge
• Pickup Configuration: HH

NECK

• Neck Material: Quartersawn Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .805″ at 3rd & .890″ at 12th Fret
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Wolfgang® Backshape
• Scale Length: 25.5″ (64.77 cm)
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Vintage Stainless Steel
• Nut Material: Floyd Rose R2 Locking
• Nut Width: 1.625″ (41.3 mm)
• Position Inlays: Mother of Pearl Dot
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose Retainer Bar

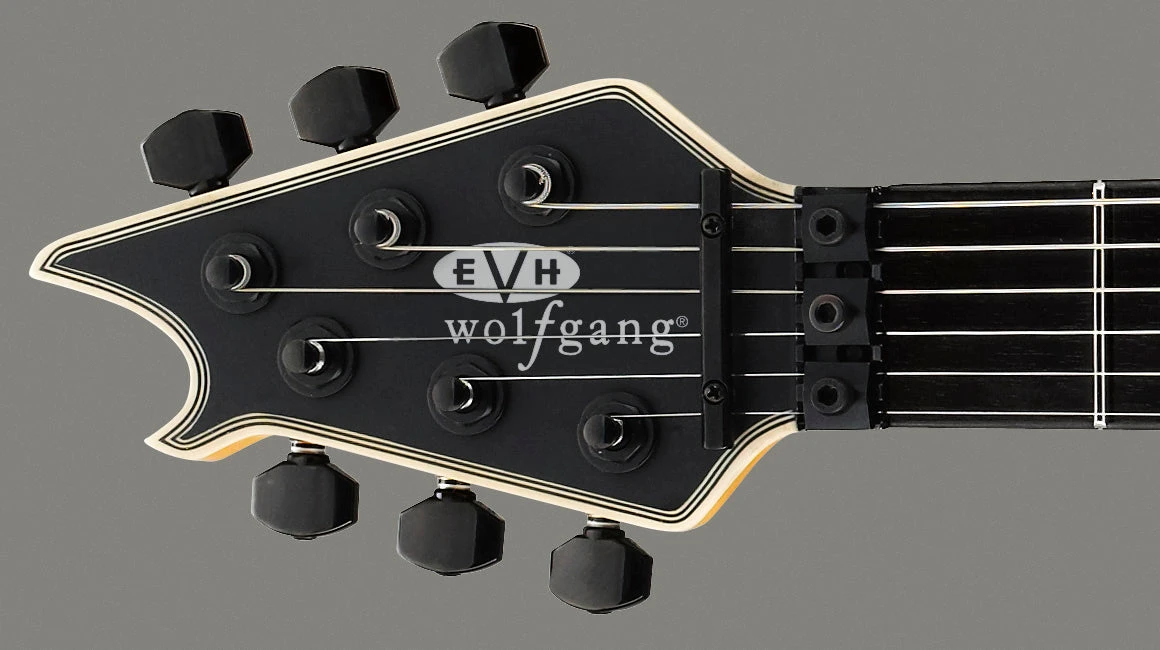

• Headstock: EVH Wolfgang®

HARDWARE

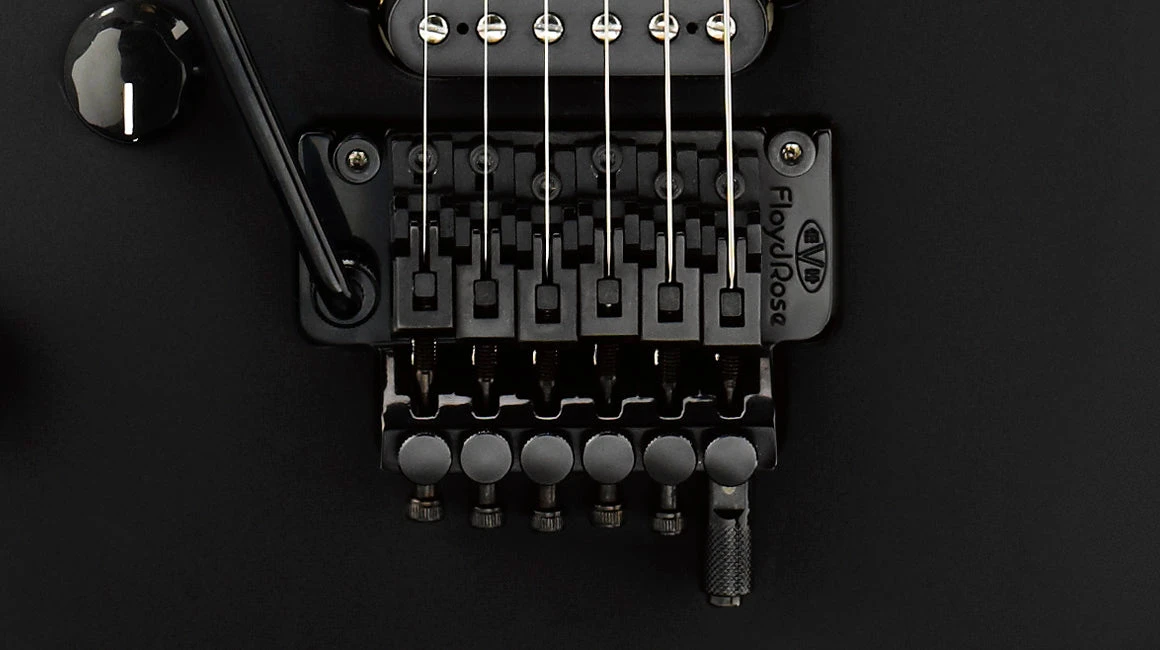

• Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Hardware Finish: Black
• Tremolo Arm: Floyd Rose 1000 Series Locking
• Tremolo Block: Brass
• Tuning Machines: EVH-Branded Gotoh
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black

MISCELLANEOUS

• Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Oversized
• Case/Gig Bag: Included EVH SKB LH Hardshell (p/n 022-9653-000); Optional EVH Black Bag (p/n 022-1512-006)

ACCESSORIES

• Included Accessories: Tremolo Arm, Hex Keys & User Manual
