EVH 5150III® 100S Head, Black – EVH

This hand-customized EVH 5150III® 100S head is identical to the setup Eddie Van Halen most recently toured with, featuring his exact same custom modifications.

Not just dressed in a seductively dark finish, this 100-watt Stealth head roars with its own unique voice – tweaked with added features specifically to meet Eddie Van Halen’s touring requirements. Channel one soars with pristine and sparkling cleans; channel two features increased gain for greater sustain and is re-voiced for improved low-mid frequency definition; channel three also features increased gain and improved range for the “low” control. Each channel has its own versatile controls (volume, gain, presence, low, mid, high), as well as a rear-panel resonance control knob that dials in fine-tuned low-end response.

The amp also has eight JJ ECC83 preamp tubes, four Shuguang 6L6 power tubes, switchable output impedance (4, 8 and 16 ohms), adjustable bias control, vintage-style “chicken head” control knobs, red jewel, dual speaker jacks, effects loop, direct out and molded plastic handle.

Specifications

• Model Number: 2250250000
• Series: EVH® 5150III® Heads
• Color: Black
• Amplifier Type: Tube
• Dimensions:
  • Height: 11″ (27.94 cm)
  • Width: 30″ (76.2 cm)
  • Depth: 12″ (30.5 cm)
• Weight: 55 lbs. (24.95 kg)
• ELECTRONICS:
  • Controls: Gain, Low, Mid, High, Volume, Channel Select, Presence, and Resonance for Each Channel
  • Channels: Three – (Clean, Crunch, and Lead)
  • Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
  • Wattage: 100 Watts
  • Effects Loop: 1/4″ (Send/Return)
  • Inputs: One – 1/4″
  • Line Out: One – 1/4″
  • Speaker Jack: Two – 1/4″ Parallel
  • Rectifier: Solid State
  • Total Impedance: 4, 8, or 16 ohms
  • Power Cable: IEC
• CONSTRUCTION:
  • Grill Cloth/Material: Perforated Steel Front and Rear Panel
  • Amplifier Covering: Black Textured Vinyl
  • Cabinet Material: White Birch
• TUBES:
  • Preamp Tubes: 8 x JJ ECC83S (12AX7)
  • Power Tubes: 4 x Shuguang 6L6 Matched
• HARDWARE:
  • Control Knobs: Black Chicken-Head Style Pointer
  • Handle: Molded Plastic Strap with Nickel-Plated Caps (1 Top & 2 Sides)
  • Control Panel: Gain, Low, Mid, High, Volume, Channel Select, Presence, and Resonance for Each Channel

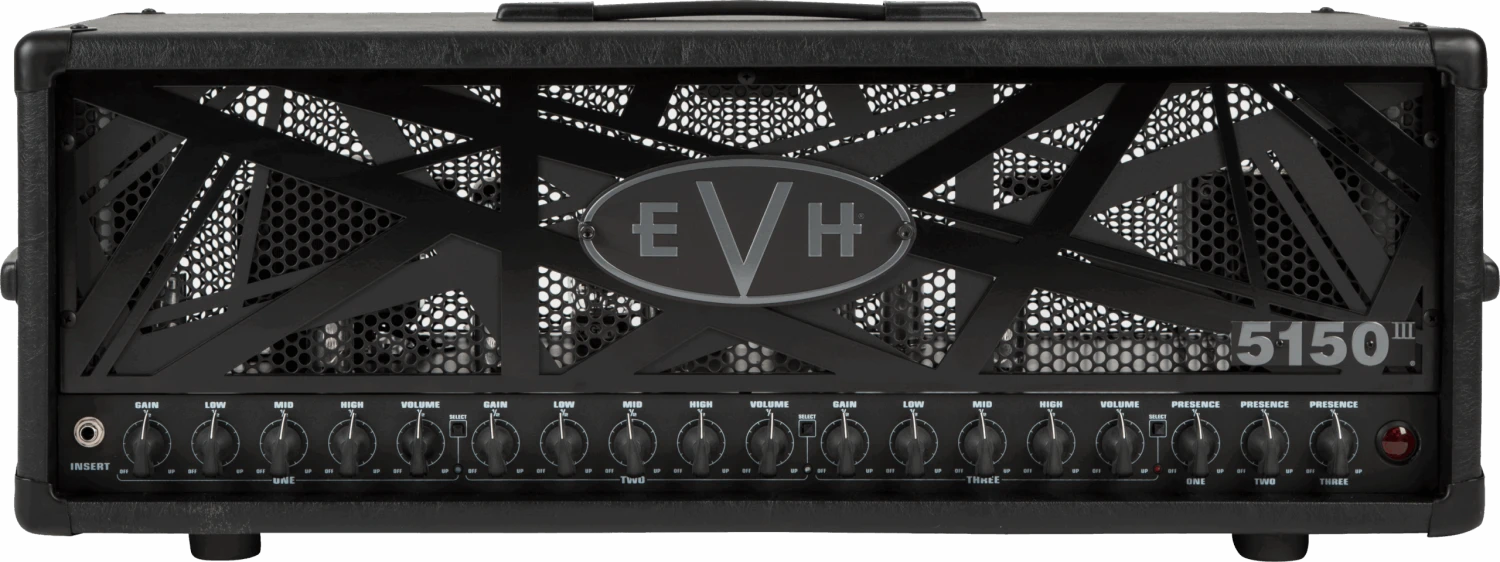

  • Front Panel: Black

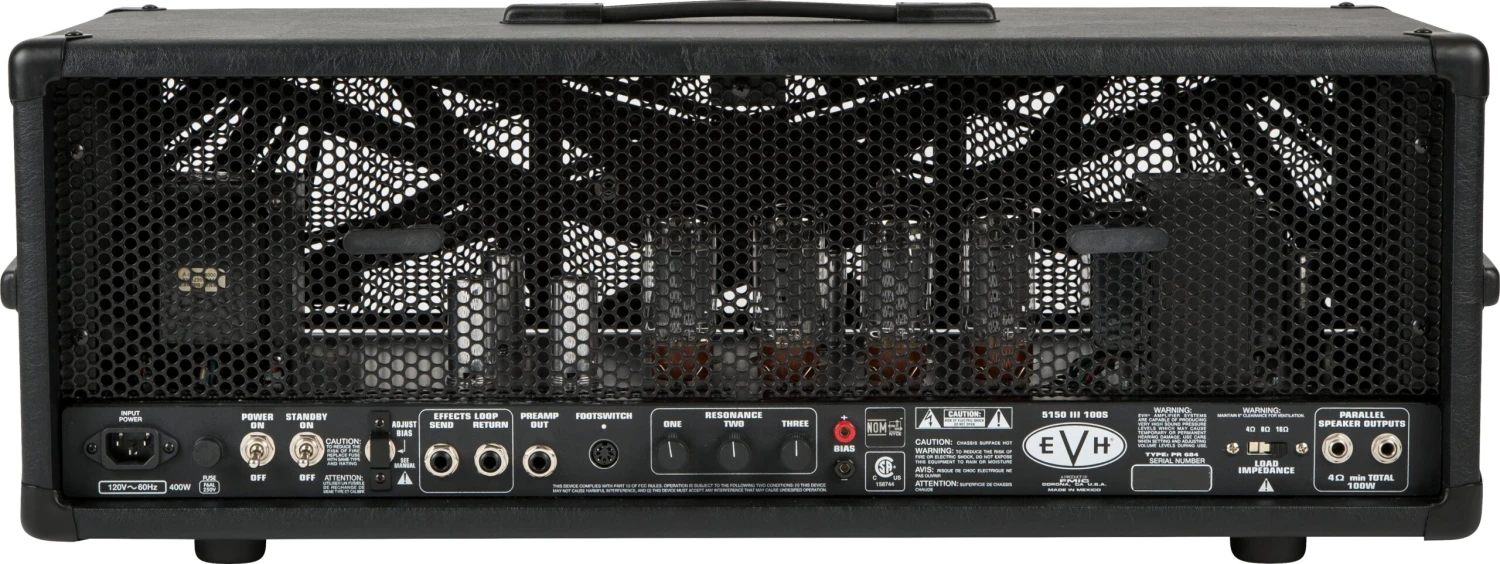

  • Rear Control Panel: Power, Standby, Bias Adjust, Resonance For All Three Channels, Load Impedance
• ACCESSORIES:
  • Footswitch: 4-Button Footswitch Included
  • Footswitch Connection Type: 7-Pin DIN
  • Recommended Cover: Optional P/N 0073406000
  • Included Accessories: 5-Foot Speaker Cable
