EVH 5150® Iconic® Series 60W 2X12 Combo, Black, 120V – EVH

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone at a more affordable price. Evolving from the revered and flagship EVH 5150III® amplifiers, the Iconic amplifiers deliver the searing sound and growling gain that Eddie Van Halen made famous.

Collaboratively designed by the EVH team and led by renowned amp engineer, James Brown, the 5150® Iconic® Series 60-watt 2×12 combo is powered by two 6L6 power tubes and voiced by a complex, multi-stage hybrid preamp section anchored by a pair of ECC83 tubes providing all the fire power the modern guitarist needs. The cabinet features special internal plywood baffling for tight and increased bass response, and houses a pair of custom-designed EVH 12″ Celestion® speakers voiced specifically for this preamp circuit, so that the pristine cleans and searing high gain tones are tight, clear and articulate.

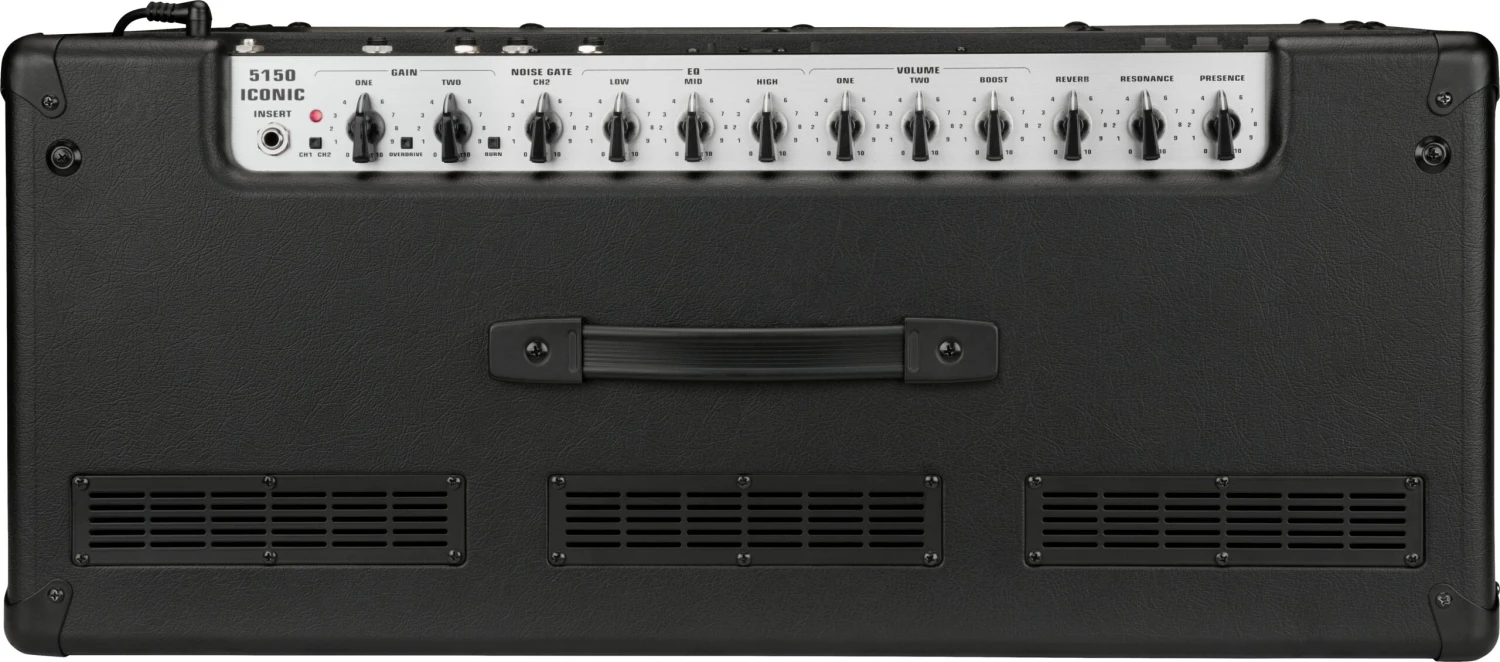

This combo features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads. Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate’s quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control allows you to add another 10Db of foot-switchable volume to your tone – perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

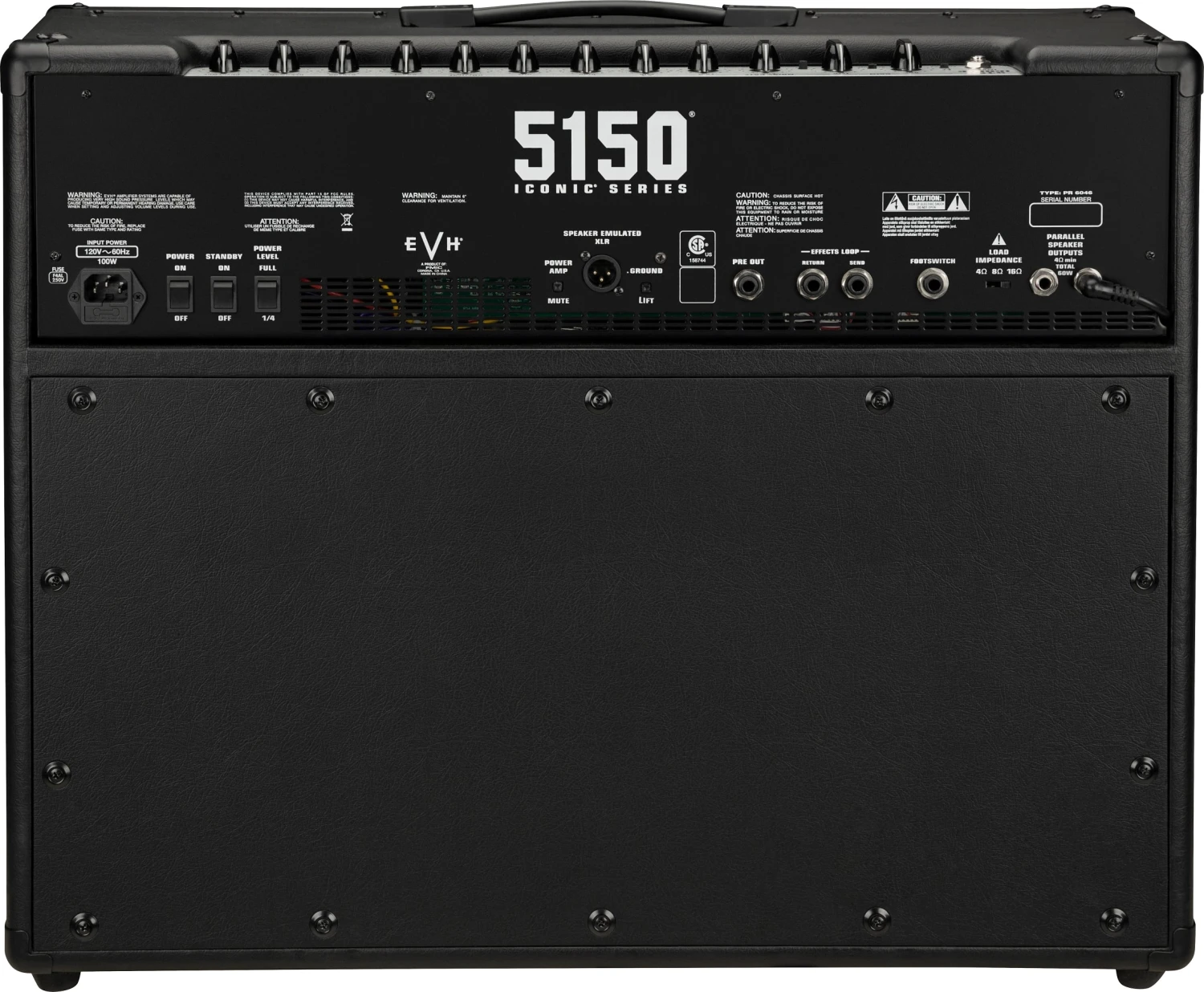

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage – allowing you to crank the amp and still preserve tone but without destroying your neighbor’s solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

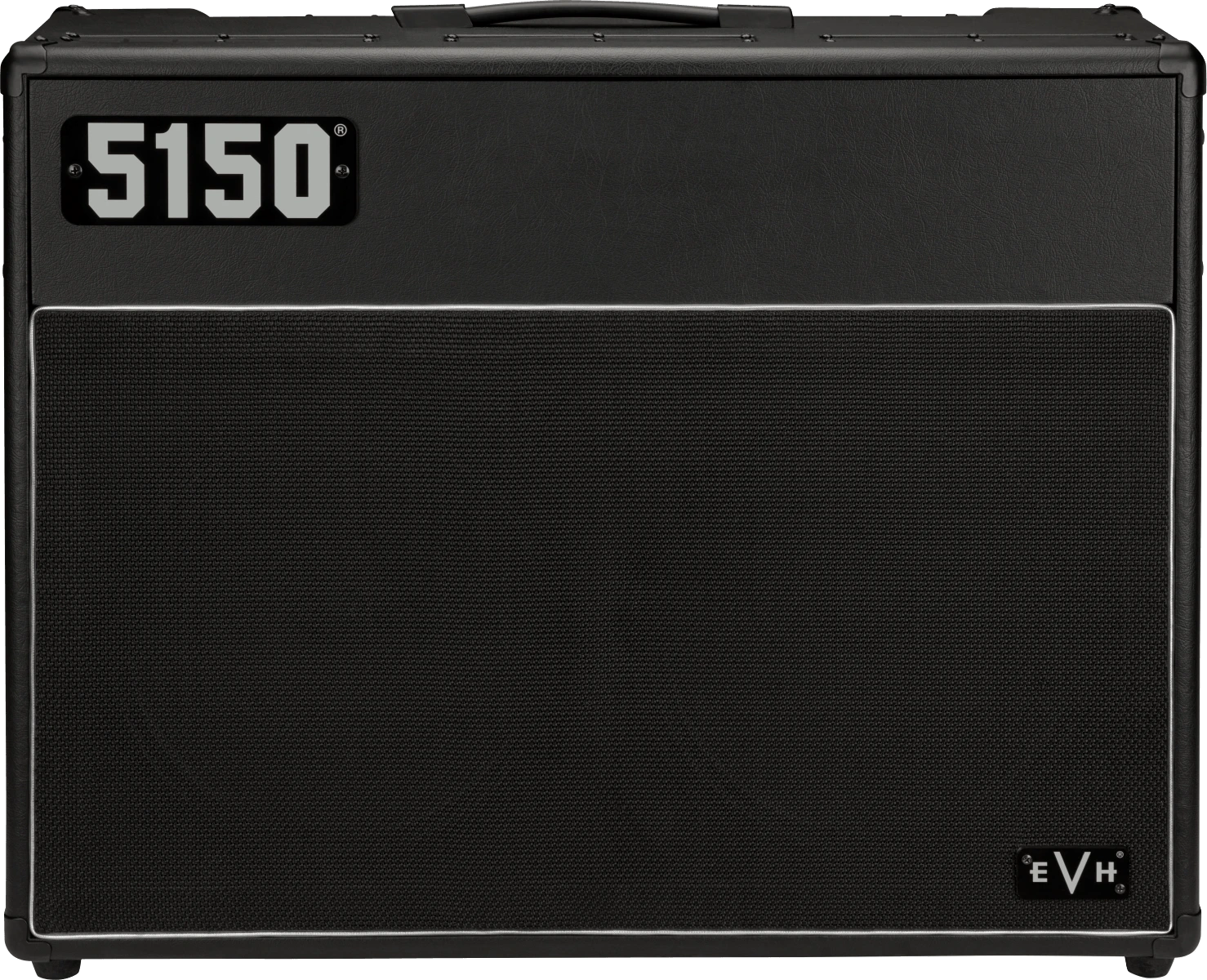

Sporting distinctive EVH style, the 5150 Iconic Series 60W 2×12 combo is wrapped in either Black or Ivory textured vinyl with a black cloth front grille and features silver and black 5150 and EVH logo badges in the upper left and lower right corners. This all-tube combo is finished off with a brushed aluminum top panel, vintage-style chicken-head knobs and molded black plastic top handle.

Specifications

General:

• Model Number: 2257200010
• Series: 5150® Iconic®
• Color: Black
• Amplifier Type: Tube
• Height: 22″ (55.8 cm)
• Width: 27″ (68.6 cm)
• Depth: 11.25″ (28.57 cm)
• Weight: 66 lbs. (30 kg)

Electronics:

• Controls:
  • Channel 1: Gain w/ Overdrive Switch
  • Channel 2: Gain w/ Burn Switch
  • Noise Gate (Channel 2)
  • Low, Mid, High EQ (Channel 2)
  • Channel 1/Channel 2 Volume
  • Master Boost
  • Global Reverb
  • Resonance
  • Presence
• Channels: Two – Clean/Overdrive and Lead/Burn
• Voltage: 120V
• Wattage: 60 Watts
• Effects: Reverb
• Effects Loop: 1/4″ (Send/Return)
• Inputs: One 1/4″
• Line Out: Two – (One XLR and One 1/4″)
• Speaker Jack: Two – 1/4″ Parallel
• Rectifier: Solid State
• Total Impedance: 4, 8, or 16 ohms
• Power Cable: IEC

Construction:

• Grill Cloth/Material: Black
• Amplifier Covering: Textured Vinyl
• Cabinet Material: MDF w/ Plywood Baffle

Tubes:

• Preamp Tubes: 2 x ECC83S
• Power Tubes: 2 x 6L6

Speakers:

• Speakers: Two – 12″ EVH® Celestion® Custom
• Speaker Wattage: 60 Watts

Hardware:

• Control Knobs: Black Chicken-Head Style Pointer
• Handle: Molded Plastic Strap with Black Powder Coated Caps
• Control Panel: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
• Front Panel: Brushed Aluminum
• Effects: Reverb

Miscellaneous:

• Other Features: 1/4 Power Level Switch

Accessories:

• Footswitch: 2-Button Footswitch Included
• Footswitch Connection Type: 1/4″
