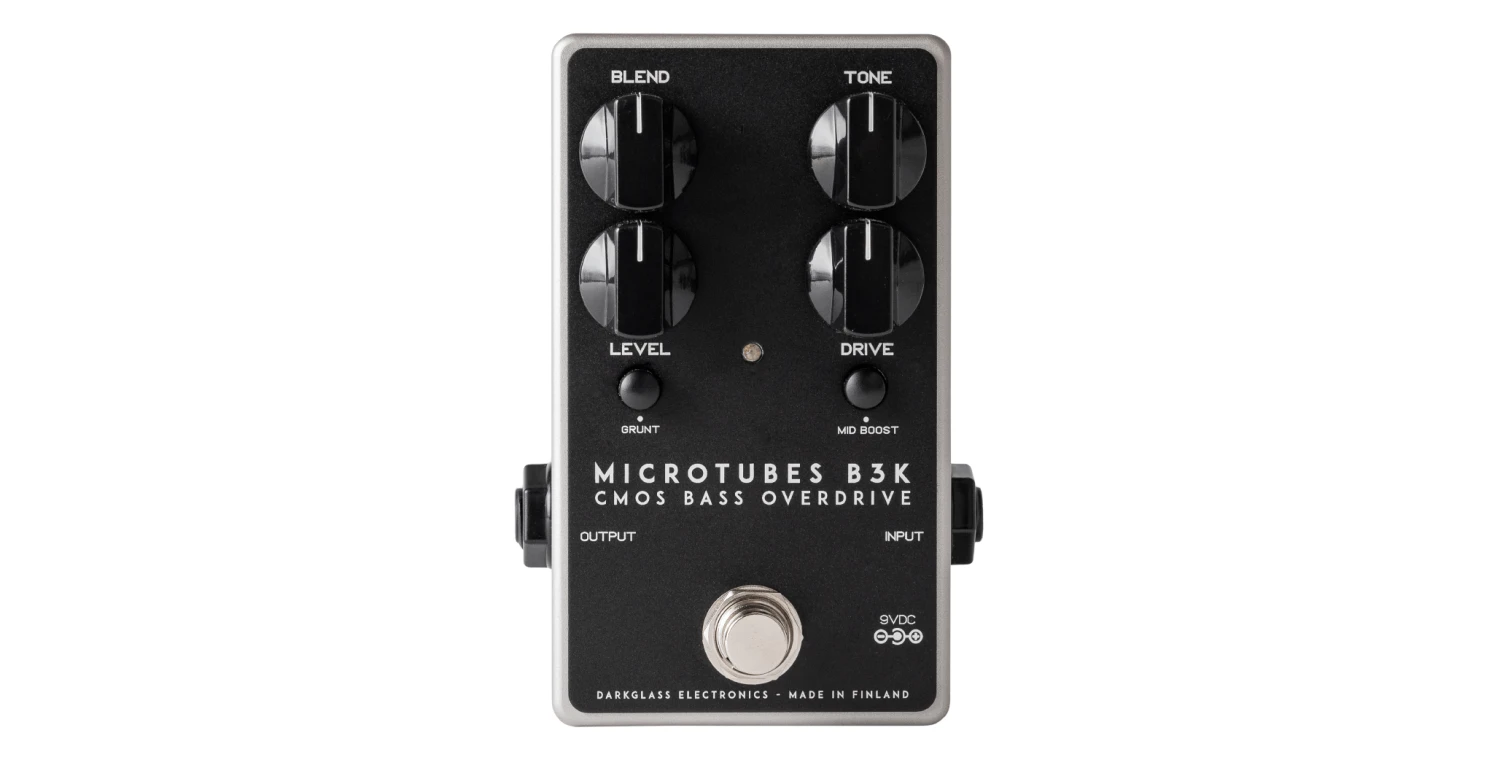

Darkglass B3K V2 Microtubes Overdrive Pedal – Darkglass Electronics

An intuitive format that contains brutality and clarity at the same time is what the B3K delivers. A defined and powerful overdrive, with a simple layout, it sets no boundaries or rules to unleashing the desired tone.

• Specifications

  • Blend: Mixes clean input with overdriven signal; clean signal remains at unity gain, while overdriven signal volume controlled by Level knob.
  • Tone: Variable low pass filter from 3kHz (ccw) to 8kHz (cw) controlling high-frequency content.
  • Level: Sets volume of overdriven signal.
  • Drive: Sets saturation amount in overdriven signal.
  • Grunt: Provides massive low-end boost when engaged.
  • Mid Boost: Offers subtle 6dB boost from 300 Hz to 1kHz for improved presence.
  • Output: Connects to amplifier or another effects pedal via ¼” Output jack.
  • Input: Connects instrument or pedal board output to ¼” mono jack.
  • 9V DC: Requires regulated 9V DC adapter with center-negative plug.
• Dimensions:
  • Width: 75 mm / 3″
  • Length: 111 mm/ 4¼″
  • Height: 43 mm / 1¾″
  • Weight: 250 g / 0.55 lb
• Warning:
  • Current draw: 20mA
  • Use only regulated 9V DC adapter with center-negative plug.
  • Unregulated power supplies or higher voltages may result in suboptimal noise performance and void warranty, potentially causing damage.
