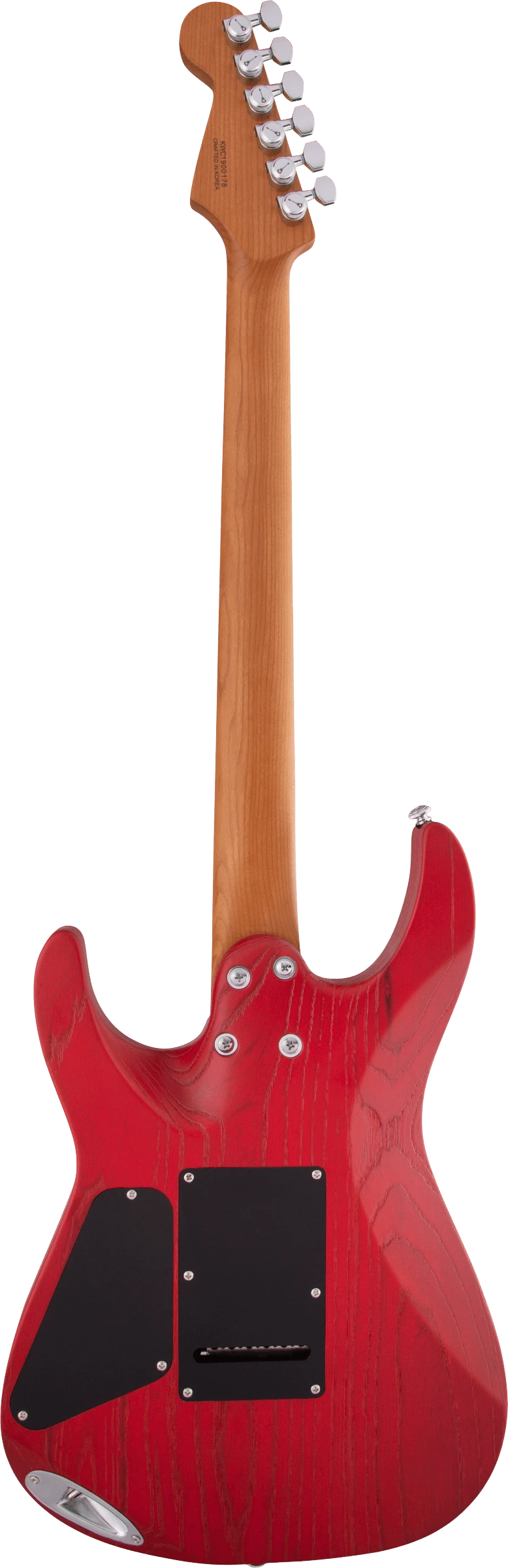

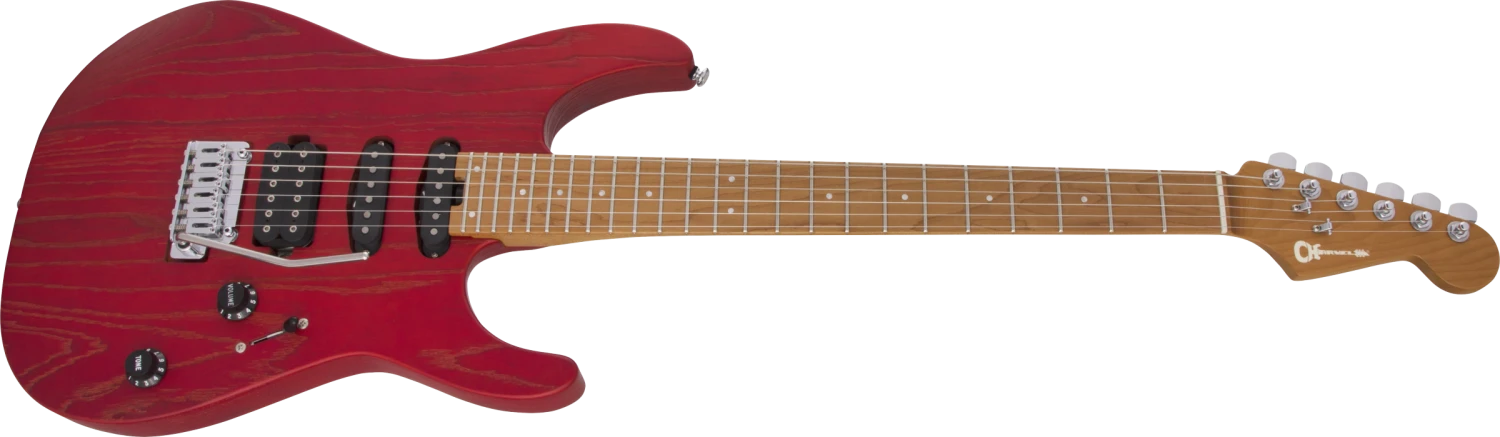

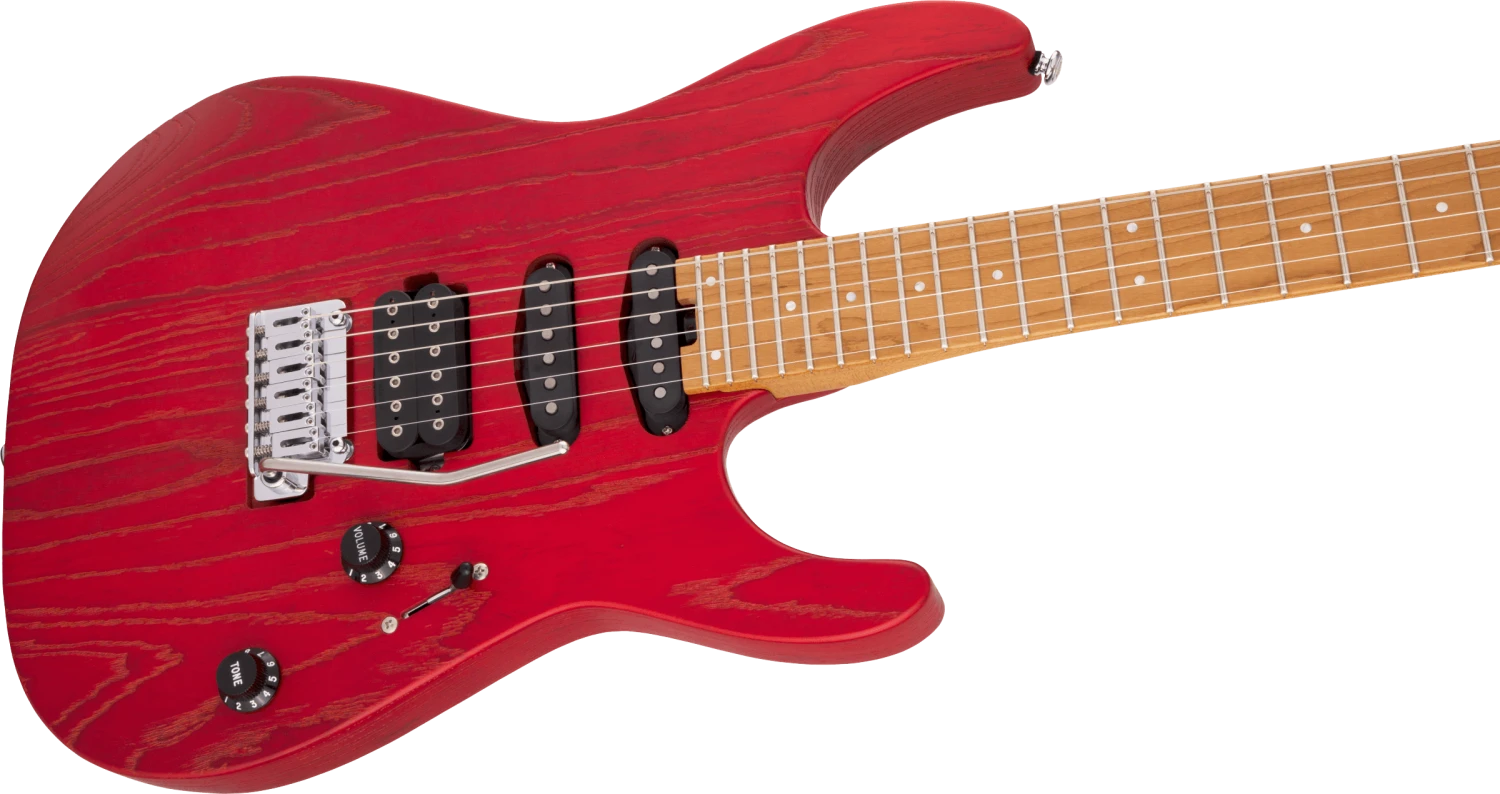

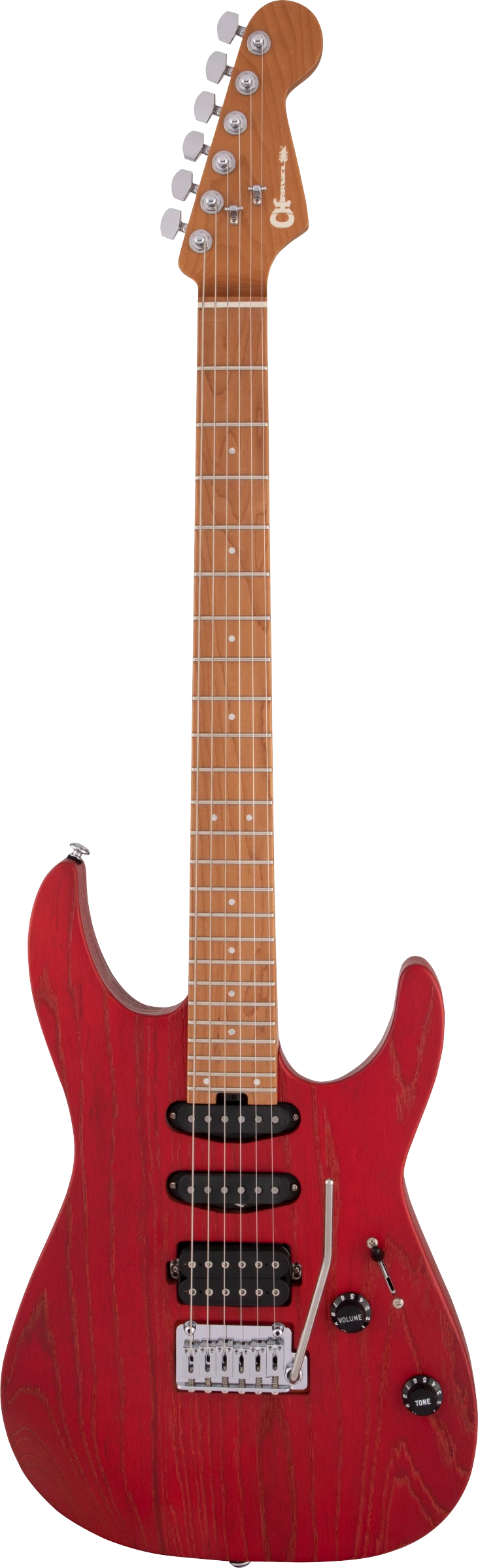

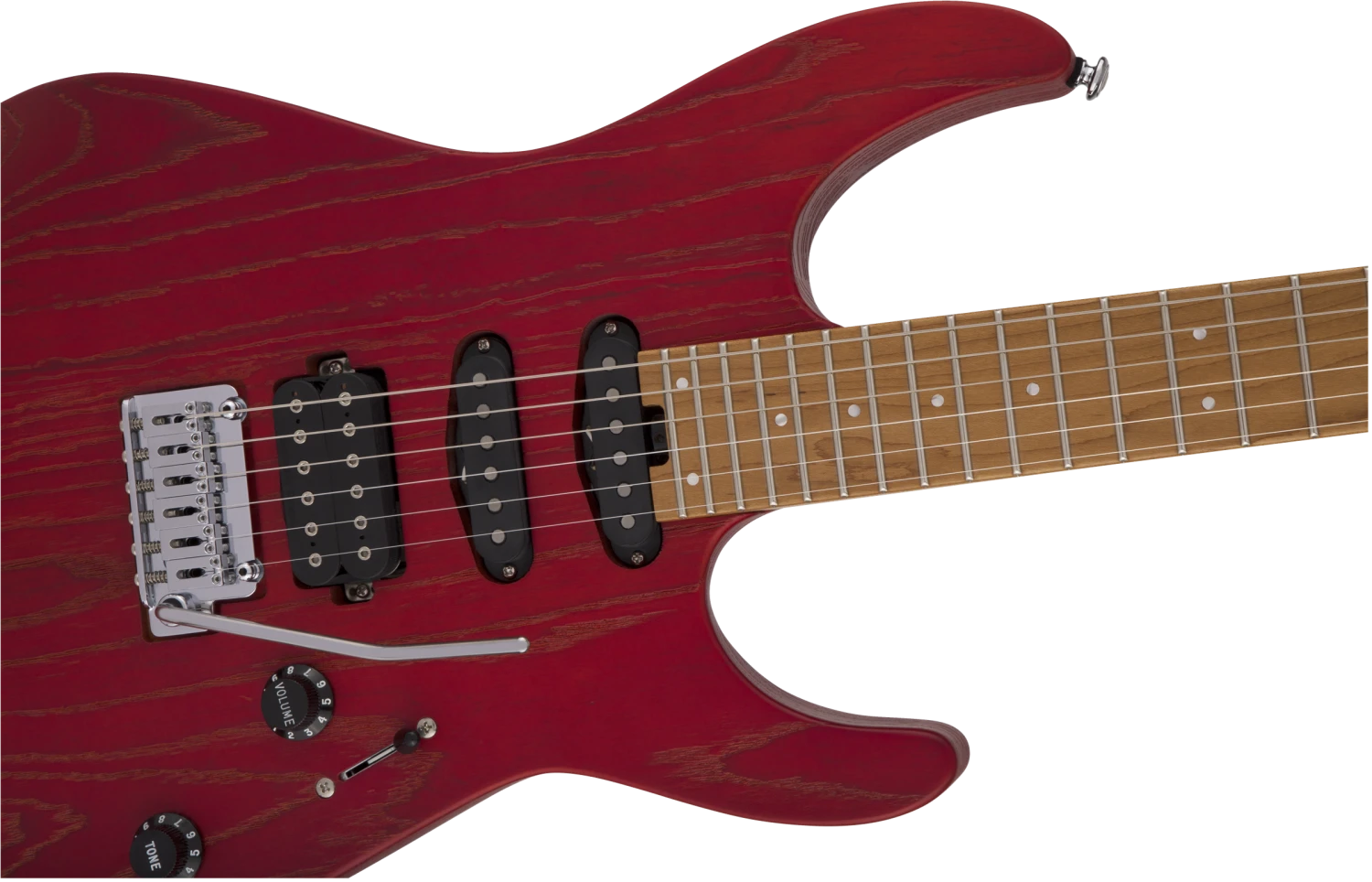

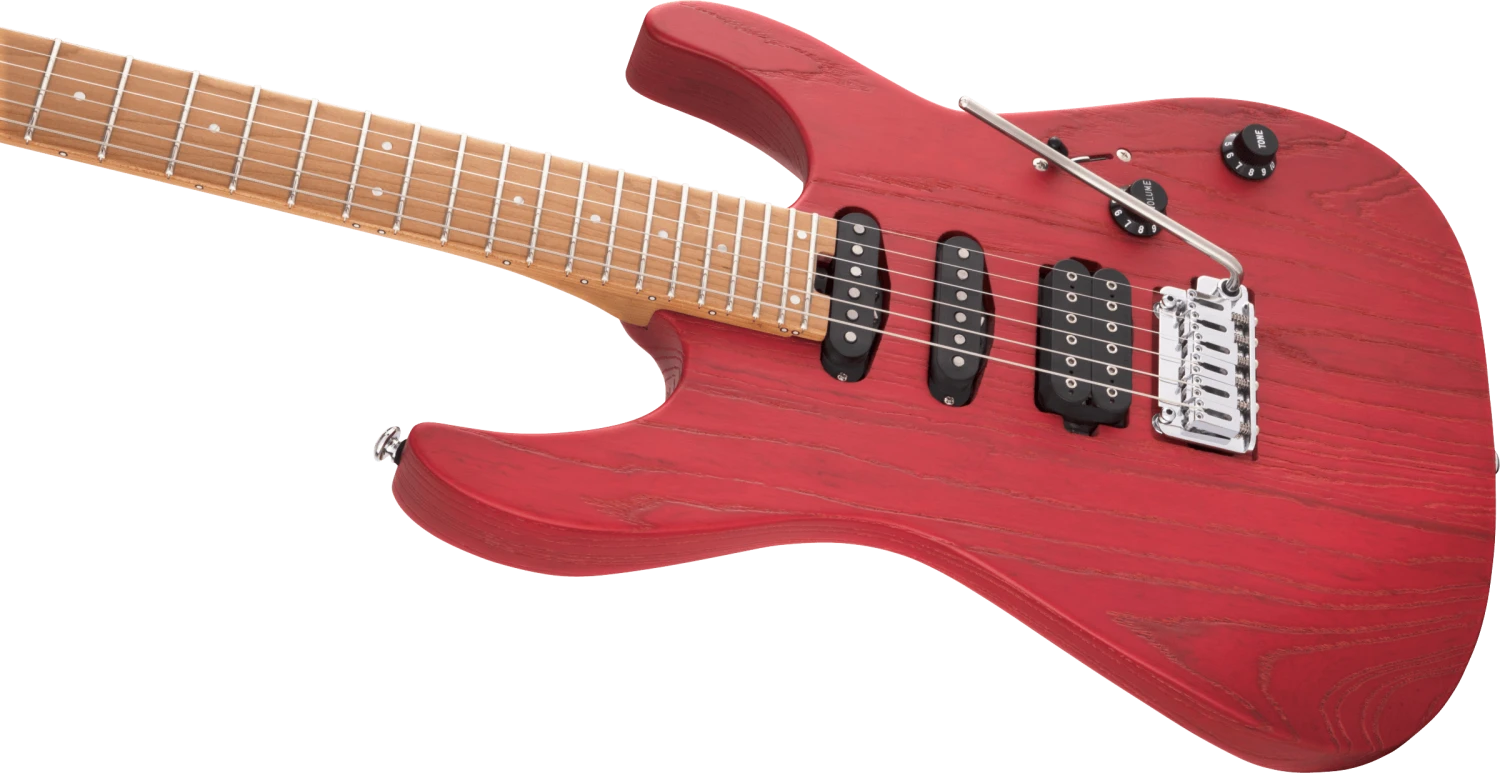

Charvel Pro-Mod DK24 HSS 2PT CM Ash, Caramelized Maple Fingerboard, Red Ash – Charvel

Charvel® once again reaches new heights of modern high performance combined with elegant style and crushing tone with the Pro-Mod DK24 HSS 2PT CM Ash, a stunning new instrument designed especially for a new breed of player whose musical vision and versatility knows no boundaries.

SPECIFICATIONS

Electronics

• Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
• Middle Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
• Neck Pickup: Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
• Pickup Color: Flat Parchment
• Controls: Volume, Tone
• Pickup Switching: 5-Position Blade:
  • Position 1: Full Bridge Pickup
  • Position 2: Bridge Inner Coil and Middle Pickup
  • Position 3: Bridge Outer Coil and Neck Pickup
  • Position 4: Middle and Neck Pickup
  • Position 5: Full Neck Pickup
• Pickup Configuration: HSS (Humbucker at bridge and single-coils at neck and middle)

Body

• Body Finish: Satin
• Body Shape: Dinky®
• Body Material: Ash

Hardware

• Bridge: Gotoh® Custom 510 Tremolo
• Hardware Finish: Chrome
• Tremolo Arm: Gotoh®
• Tuning Machines: Charvel®-Branded Die-Cast Locking
• Pickguard: None
• Control Knobs: Stratocaster®-Style Skirt
• Switch Tip: Parchment

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Satin
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Scale Length: 25.5″ (64.77 cm)
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Caramelized Maple
• Number of Frets: 24
• Fret Size: Jumbo
• Nut Material: Graph Tech TUSQ XL
• Nut Width: 1.6875″ (42.86 mm)
• Position Inlays: 4mm Pearloid Dot
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Trees: Fender® Standard String Guide

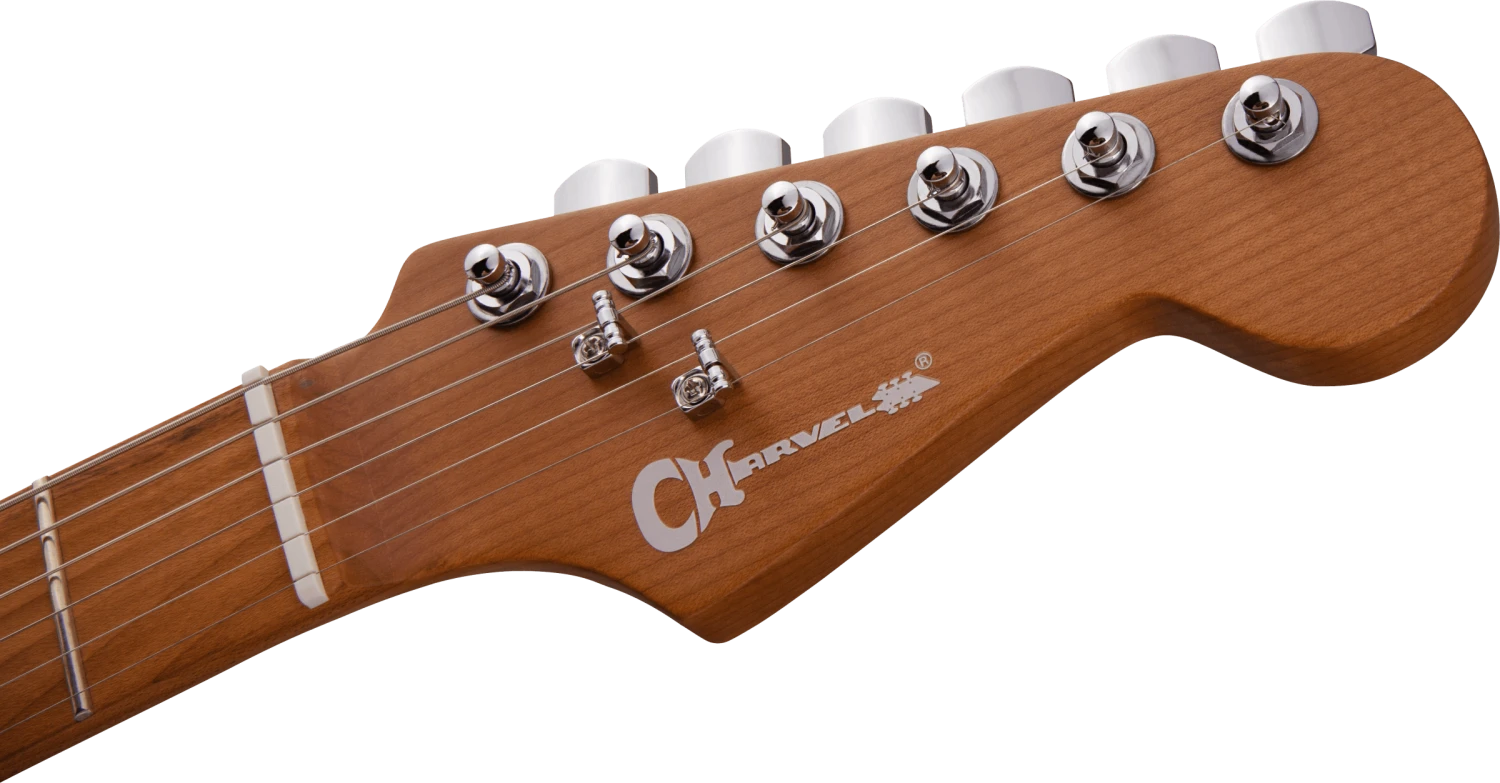

• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: None – 4-Bolt Sculpted Heel

Miscellaneous

• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Standard
• Case/Gig Bag: Optional Charvel® Hardshell (p/n 009-0915-000); Optional Gig Bag (p/n 007-6756-000)
