Boss Nextone Stage 40W Guitar Amplifier – Boss

Four Power Stages, Unlimited Expression

Combining classic tube sound and feel with next-generation tonal diversity, the BOSS Nextone series presents an exciting new concept in professional guitar amplification. Distinctive channel voicings deliver a wide range of inspiring tones, while four selectable Class AB analog power amp types provide instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Backed by our advanced Tube Logic approach, each power amp type re-voices the entire circuit from input to output, putting the complete sonic experience of these signature power stages in one amp for the very first time.

Want to dive deeper with even more sound customization? Just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, and other internal settings to perfectly match your individual style and touch. Nextone also includes convenient modern features for stage playing, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at manageable volumes. And thanks to Tube Logic, you get to enjoy all the great sound and response of your favorite tube designs without the backbreaking weight and ongoing maintenance hassles.

Nextone Version 2: More Tone-Shaping Tools to Craft Your Personal Sound
Version 2 firmware delivers a host of new tone personalization options via the Nextone Editor. A key feature is Character Shape, which unlocks designer-level sound control right at the heart of the power amplifier. In addition, separate pre/post preamp EQs are now available (including a new 10-band graphic), seven boost types have been added, and effects can be set independently for custom mode channels. There’s also a selectable Extra Headroom setting for added punch. And with new import/export and librarian functions, it’s easier than ever to work with your different Nextone setups.

Specifications

Rated Power Output
40 W
Nominal Input Level
INPUT: -10 dBu (1 M ohm)
RETURN IN: -10 dBu (100 k ohm)
Speaker
30 cm (12 inches) x 1
Controls
CH SELECT button
BOOST button
TONE button

[CLEAN] VOLUME knob

[LEAD] GAIN Knob
VOLUME knob

[EQUALIZER] BASS knob
MIDDLE knob
TREBLE knob

[EFFECT] DELAY button
TAP button
DELAY knob
REVERB knob

PRESENCE knob
MASTER knob
POWER AMP SELECT switch (6V6, 6L6, EL84, EL34)
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)
POWER switch
Indicators
CLEAN
LEAD
CUSTOM MODE
BOOST
TONE
DELAY
TAP
Connectors
INPUT jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type

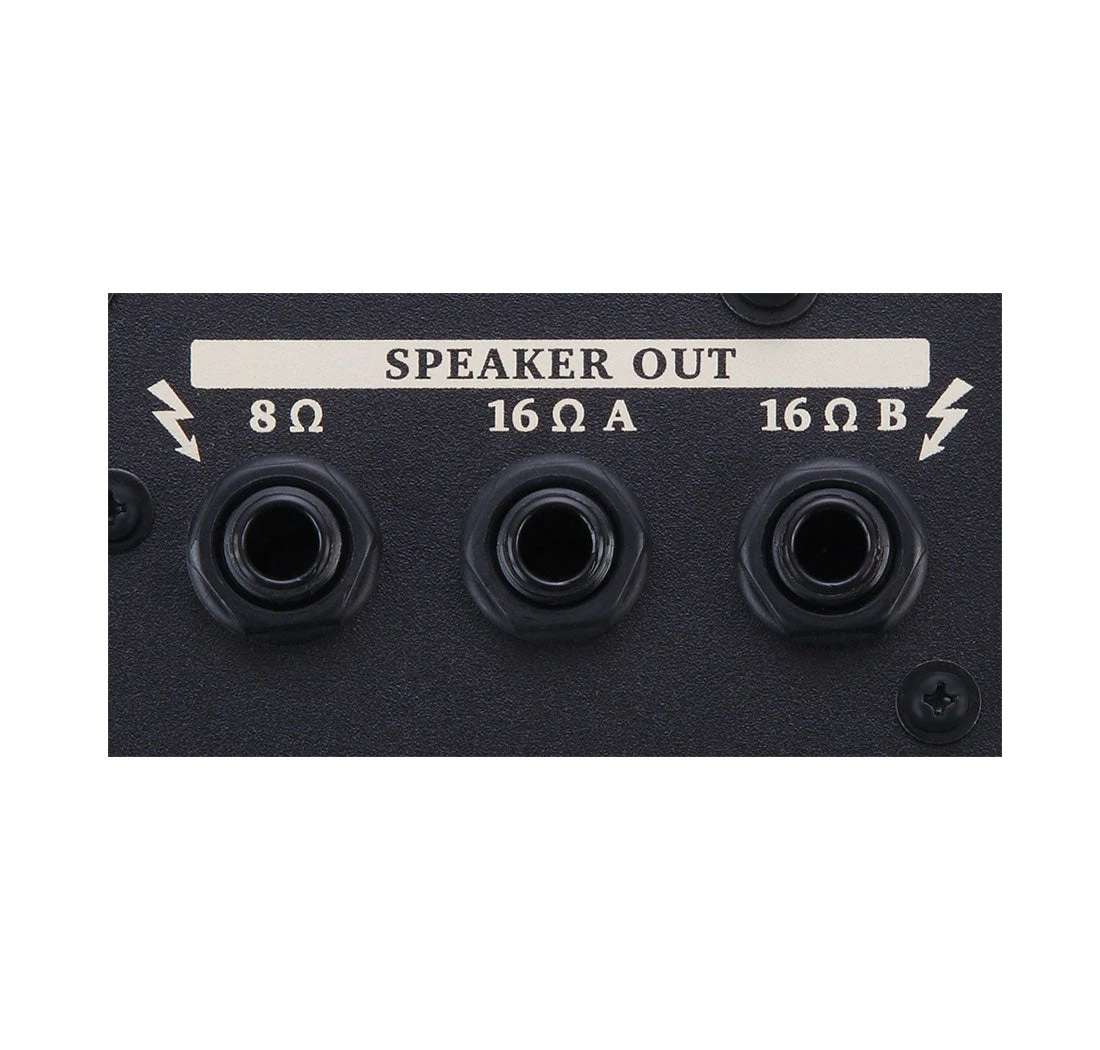

SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
SPEAKER OUT 8 ohms jack: 1/4-inch phone type
CH SELECT/BOOST jack: 1/4-inch TRS phone type
DELAY/GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack
Power Consumption
37 W
Accessories
Owner’ s manual
Power cord
GA-FC sticker
