Boss ML-2 Metal Core – Boss

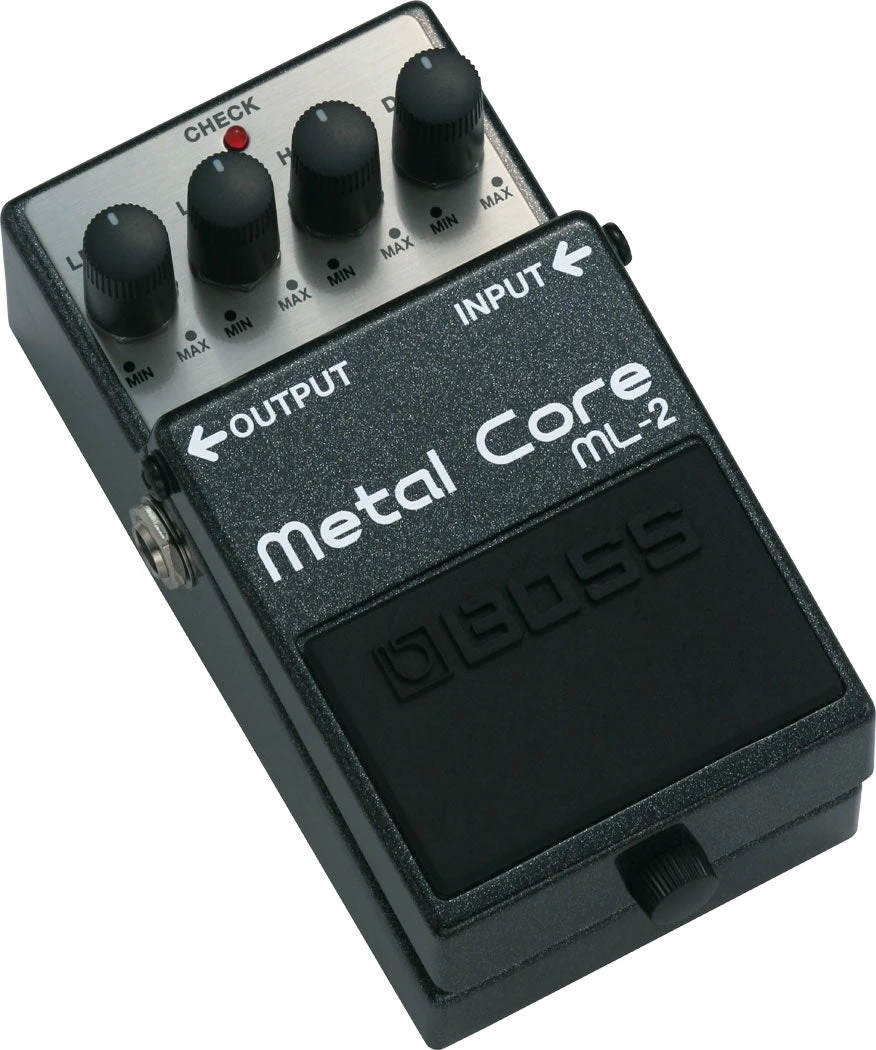

Boss ML-2 Metal Core
Extreme Metal in a Compact Pedal

With its extreme gain, the ML-2 is the most potent and heavy distortion pedal ever created by BOSS. It easily delivers massive distortion and gain with heavy lows for playing Nu Metal, Grind Core, Industrial, Hard Core, or any genre that requires crushing sound. The ML-2s ferocious and biting tone will complement and cut through any blast beats your rhythm section can create.

Features

• Ultra-heavy distortion with sharp-edged attack for crushing metal riffs
• LOW control for heavy, low frequency sound a la 7-string guitar or dropped tuning
• HIGH control for screaming, metallic tone
• Road-tough BOSS metal construction
• BOSS five-year warranty

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch, LEVEL knob, LOW knob, HIGH knob, DIST knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)

Power Supply

DC 9 V, Dry battery 6F22 (9 V) type (carbon), Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA series: optional)

Current Draw

36 mA (DC 9 V)

Expected battery life under continuous use

Carbon: 3 hours, Alkaline: 10 hours * These figures will vary depending on the actual conditions of use.

Accessories

Owner’s Manual, Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information), Dry Battery 006P/9V (6LR61)

Options

AC Adaptor (PSA series)
