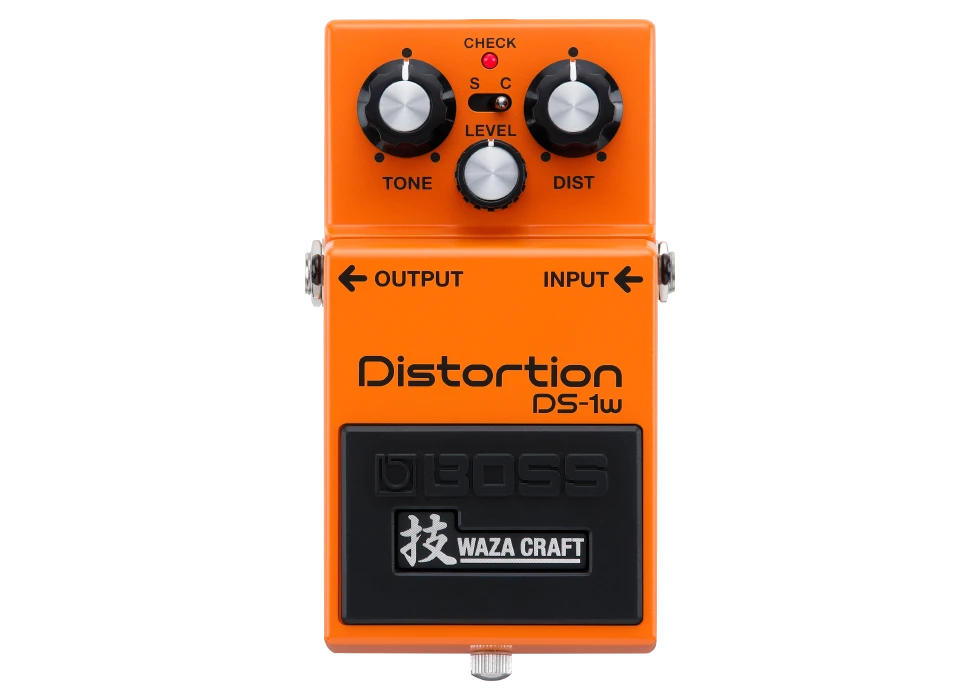

Boss DS-1W Waza Distortion – Boss

The Classic BOSS Distortion, Enhanced with Waza Craftsmanship

Introduced in 1978 among the earliest models in the BOSS compact series, the orange DS-1 redefined the sound of distortion and remains as influential today as ever. Its hard-edged attack and smooth sustain have made it the best-selling compact effect to date, and its distinctive tone is behind the signature sounds of a long list of rock and alternative icons. With the DS-1W, this legendary stomp joins other BOSS classics in the Waza Craft series, fusing the look and character of the original with a newly revised discrete all-analog circuit for expanded range and versatility.

• Special edition Waza Craft pedal for the ultimate BOSS tone experience
• Newly revised two-stage gain circuit with discrete analog components
• Standard mode delivers the legendary sound of the original DS-1
• Custom mode provides fatter distortion tones with focused midrange and increased touch response
• Versatile Tone knob provides wide-ranging frequency control fine-tuned for each mode
• Two modes offer increased versatility when the pedal is used as a gain booster
• Premium buffer for clean and clear tone when bypassed
• BOSS five-year warranty

Specifications

Nominal Input Level	-20 dBu
Input Impedance	1 M ohms
Nominal Output Level	-20 dBu
Output Impedance	1 k ohms
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	– Pedal switch
	– Mode switch
	– DIST knob
	– LEVEL knob
	– TONE knob
Indicator	CHECK indicator (Serves also as battery check indicator)
Connectors	– INPUT jack: 1/4-inch phone type
	– OUTPUT jack: 1/4-inch phone type
	– DC IN jack
Power Supply	– Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
	– AC adaptor (PSA series: sold separately)
Current Draw	15 mA
Expected Battery Life (Continuous Use)	– Alkaline: Approx. 50 hours
	– Carbon: Approx. 25 hours
	*These figures will vary depending on the actual conditions of use.
Accessories	– Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
	– Alkaline battery (9 V, 6LR61 or 6LF22)
Options (sold separately)	– AC adaptor: PSA series
