6 FEET – NEMA 5-15P To IEC C13 Power Cable – SJT – Infinite Cables

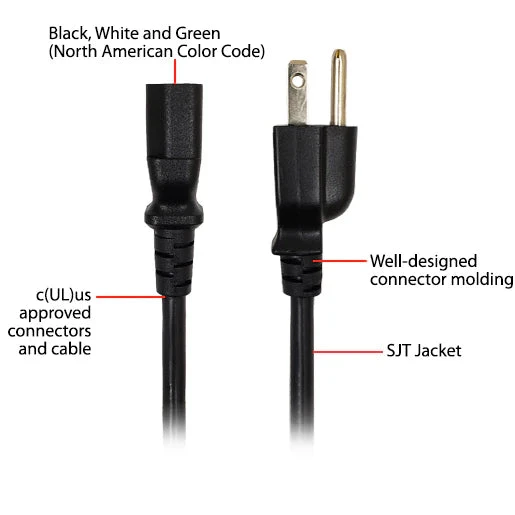

This power cord consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a networking equipment such as a server to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Features

HEAVY DUTY SJT JACKET

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% CONTINUITY AND HIGH VOLTAGE TESTED

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

C(UL)US APPROVED

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics

• Color: Black
• Number of Conductors: 3 Conductor
• Wire Gauge: 14AWG / 18 AWG
• Jacket: Heavy Duty SJT
• Jacket Material: 100% Virgin PVC – Polyvinyl Chloride
• Jacket Fire Rating: VW-1
• Strain Relief: Molded 100% Virgin PVC
• Temperature Rating: -20°C to 105°C

Connector(s)

• Connector A: IEC 60320 C13
• Connector B: NEMA 5-15P

Performance

• Power Rating:
  • 15 Amp / 125 Volt (14AWG)
  • 10 Amp / 125 Volt (18AWG)

Approvals

• C13: c(UL)us
• 5-15P: c(UL)us
• Cable: c(UL)us
• ISO: ISO 9001:2015, ISO 14000

Environmental

• RoHS: Yes
• Reach: Yes
• Conflict Minerals: Yes

Packaging Information

• Package Quantity: 1

Warranty Information

• Warranty: Limited Lifetime

Cable Weights

• 10ft: 0.70 lbs
